BDE0700G-TR: DescriptionAnalog Voltage Output Sensor, 1.716V Min, 1.79V Max, 3.5Cel, Rectangular, 5 Pin, Surface Mount, 2.90 X 2.80 MM, 1.25 MM HEIGHT, SSOP-5; CategoryThe sensor Sensor/transducer; File Size415KB，11 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BDE0700G-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BDE0700G-TR	-	-	View	Buy Now

BDE0700G-TR Overview

Analog Voltage Output Sensor, 1.716V Min, 1.79V Max, 3.5Cel, Rectangular, 5 Pin, Surface Mount, 2.90 X 2.80 MM, 1.25 MM HEIGHT, SSOP-5

BDE0700G-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	TSOP5/6,.11,37
Reach Compliance Code	compliant
Samacsys Description	ROHM - BDE0700G-TR - IC, TEMP SENSOR, THERM 70C, 5SSOP
Maximum accuracy (Celsius)	3.5 Cel
body width	1.6 mm
body height	1.25 mm
Body length or diameter	2.9 mm
Installation features	SURFACE MOUNT
Number of terminals	5
Maximum working current	0.02 mA
Maximum operating temperature	130 °C
Minimum operating temperature	-30 °C
Maximum output voltage	1.79 V
Minimum output voltage	1.716 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	TSOP5/6,.11,37
Package Shape/Form	RECTANGULAR
power supply	3 V
Sensor/Transducer Type	TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT
Maximum supply voltage	5.5 V
Minimum supply voltage	2.9 V
surface mount	YES
Termination type	SOLDER

Preview

Download Datasheet

View All

Compact High Accuracy Temperature Sensor ICs

Thermostat Output Temperature ICs

with Variable Detection Temperature

BDE□□□0G Series

No.11047JCT03

●Description

Low quiescent current (16µA), high accuracy thermostat (temperature switch) ICs. Built in temperature sensor, reference

voltage regulator, D/A converter, and comparator. Detecting temperature by itself, OS terminal state is changed at logically.

Open Drain Output (Active L ) is available in BDE□□□0G series.

●Features

1) Detection Temperature Range +55½+115℃ by 6 products.

2) ±5℃ Step Selectable Detection Temperature with CTRL.

3) Hysteresis Temperature (typically 10℃)

4) High Accuracy Analog Output (typically ±3.5℃@Ta=30℃)

5) Analog Output Temperature Sensitivity (typically -10.8mV/℃)

6) Low Supply Current (typically 16µA)

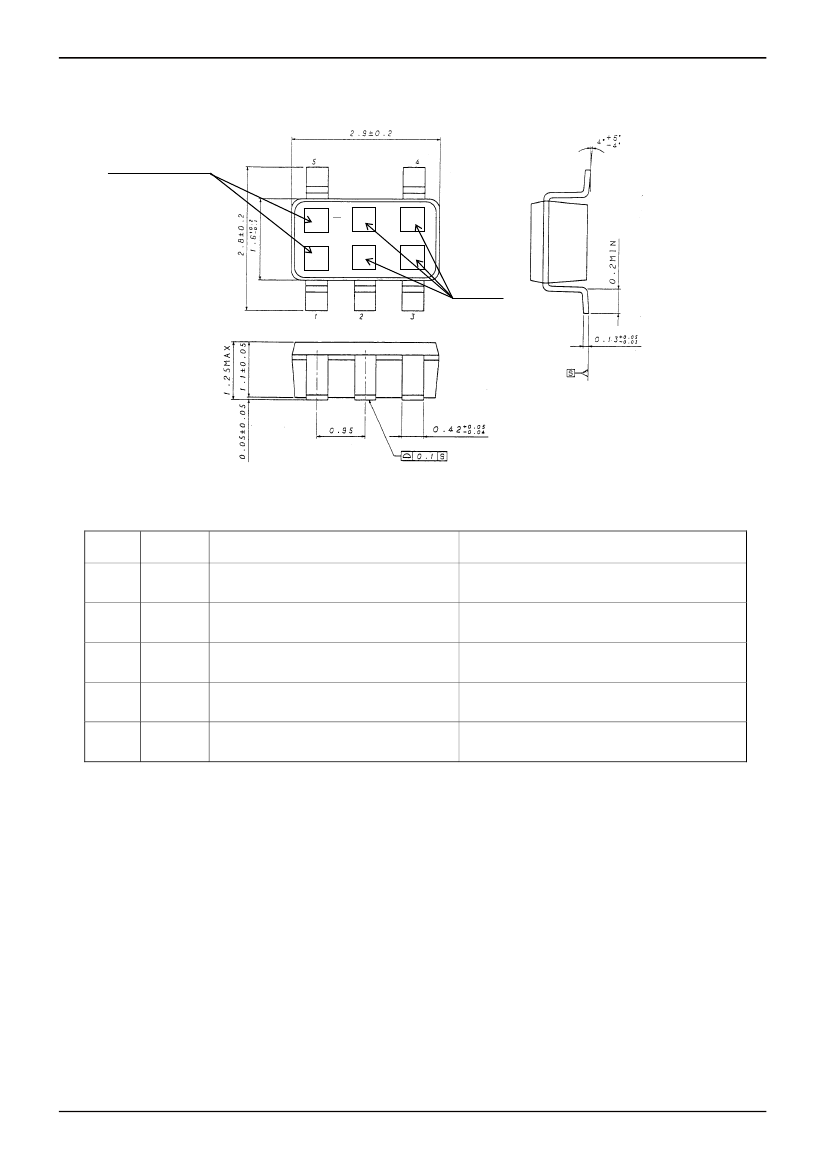

7) Small Package (typically 2.90mm×2.80mm×1.25mm)

8) ESD Rating 8kV (HBM)

9) Excellent Ripple Rejection Characteristic

●Applications

Thermal Protection for Electrical Equipment (Notebook PC, Cell phone, FPD-TV, etc.) FAN Control for Thermal Management

●Products

Line up

BDE

□□□

Detection Temperature

(Center Temperature)

110:110℃

100:100℃

090: 90℃

080: 80℃

070: 70℃

060: 60℃

Temperature / Output Format Table

CTRL status description ( L : Low, O : Open,

Detection Temperature (℃)

Product

CTRL

Name

BDE1100G

BDE1000G

BDE0900G

BDE0800G

BDE0700G

BDE0600G

105

110

100

115

105

Output Format

(Open Drain, Active Low)

Package

(SSOP5)

H : High )

Marking

OS Output Format

Open Drain

Active L

www.rohm.com

1/8

2011.07 - Rev.C
