DSC-10510-3XX05 datasheet, PDF

DSC-10510-3XX05: DescriptionDigital to Synchro or Resolver, Hybrid, 2 X 1.100 INCH, 0.200 INCH HEIGHT, TRIPLE WIDTH, DIP-40; CategoryAnalog mixed-signal IC converter; File Size121KB，3 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric View All

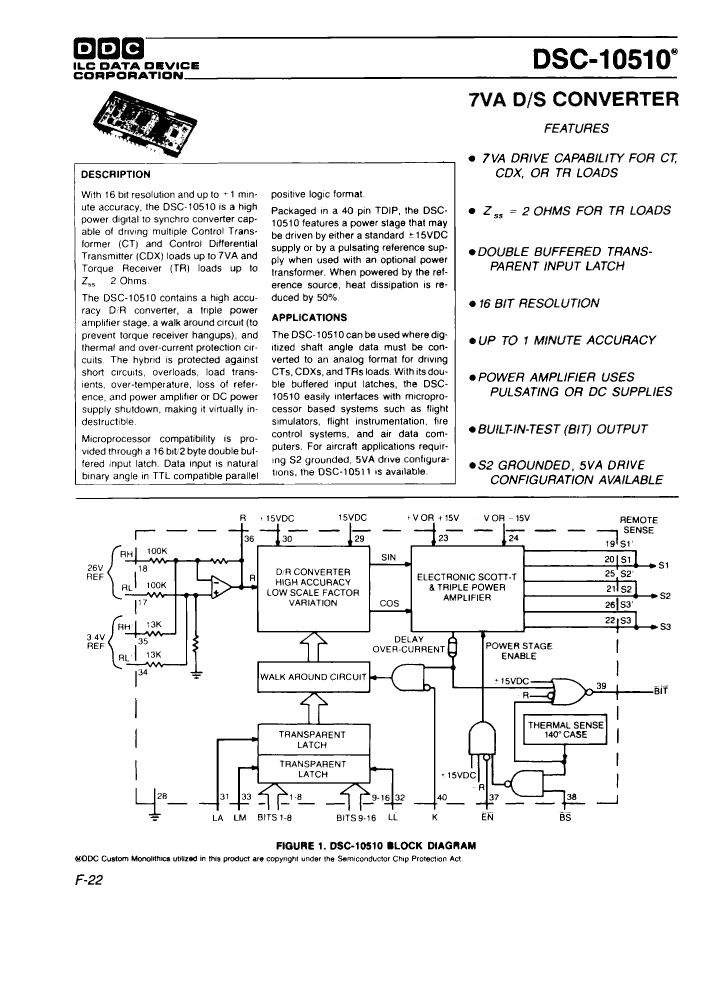

DSC-10510-3XX05 Overview

Digital to Synchro or Resolver, Hybrid, 2 X 1.100 INCH, 0.200 INCH HEIGHT, TRIPLE WIDTH, DIP-40

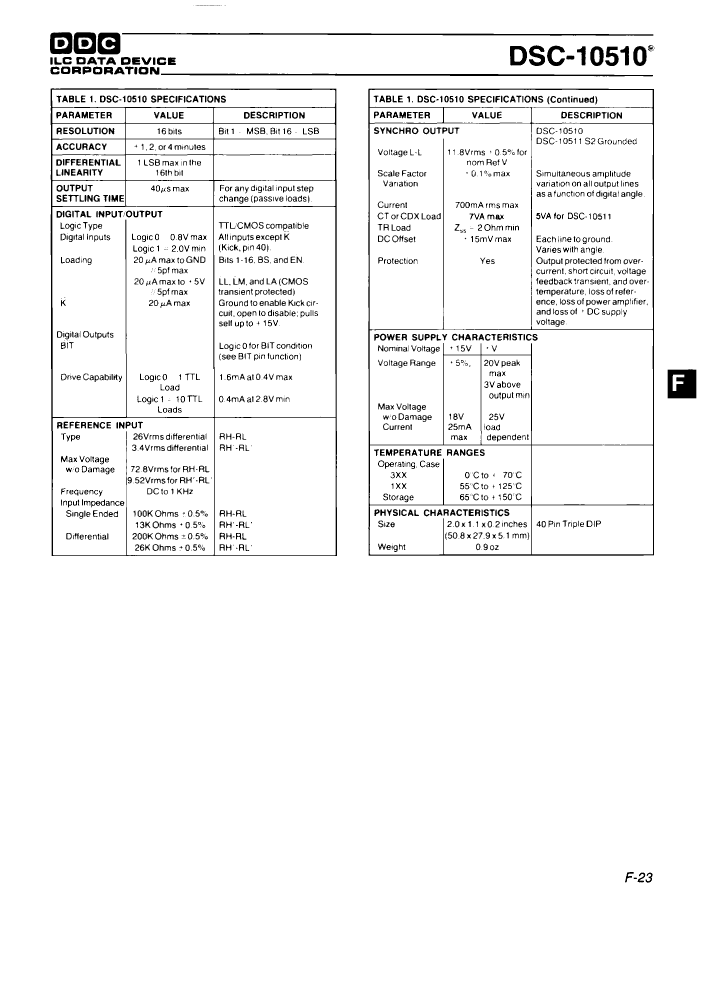

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Data Device Corporation

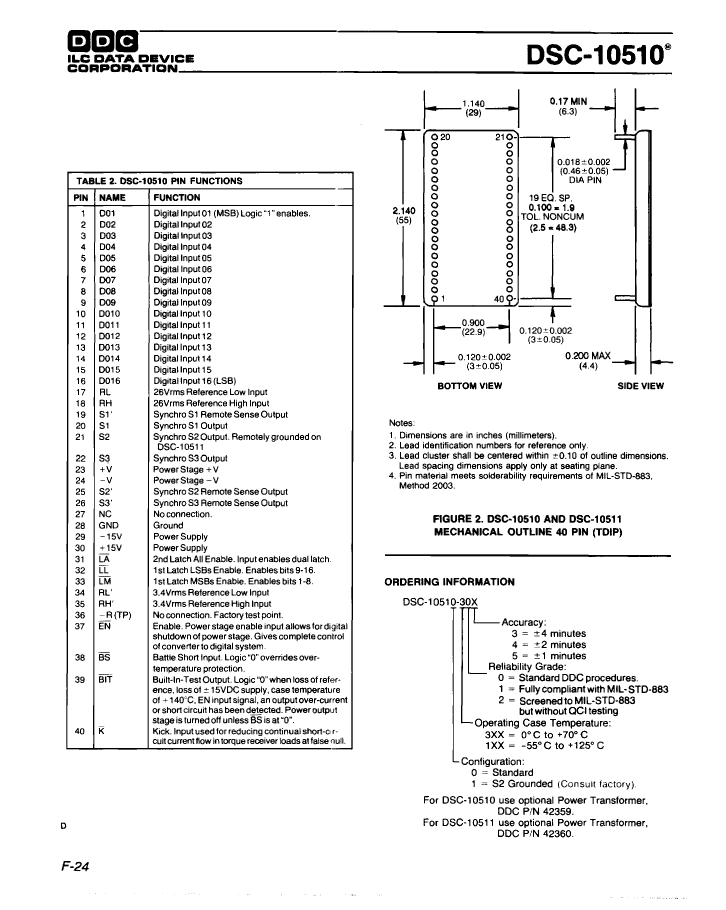

Parts packaging code	DIP
package instruction	2 X 1.100 INCH, 0.200 INCH HEIGHT, TRIPLE WIDTH, DIP-40
Contacts	40
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum angular accuracy	1 arc min
Converter type	DIGITAL TO SYNCHRO OR RESOLVER
JESD-30 code	R-XDIP-P40
JESD-609 code	e0
length	55 mm
Maximum negative supply voltage	-15.75 V
Minimum negative supply voltage	-14.25 V
Nominal negative supply voltage	-15 V
Number of digits	16
Number of functions	1
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.4 mm
Signal/output frequency	1000 Hz
Maximum slew rate	25 mA
Maximum supply voltage	15.75 V
Minimum supply voltage	14.25 V
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	22.86 mm
