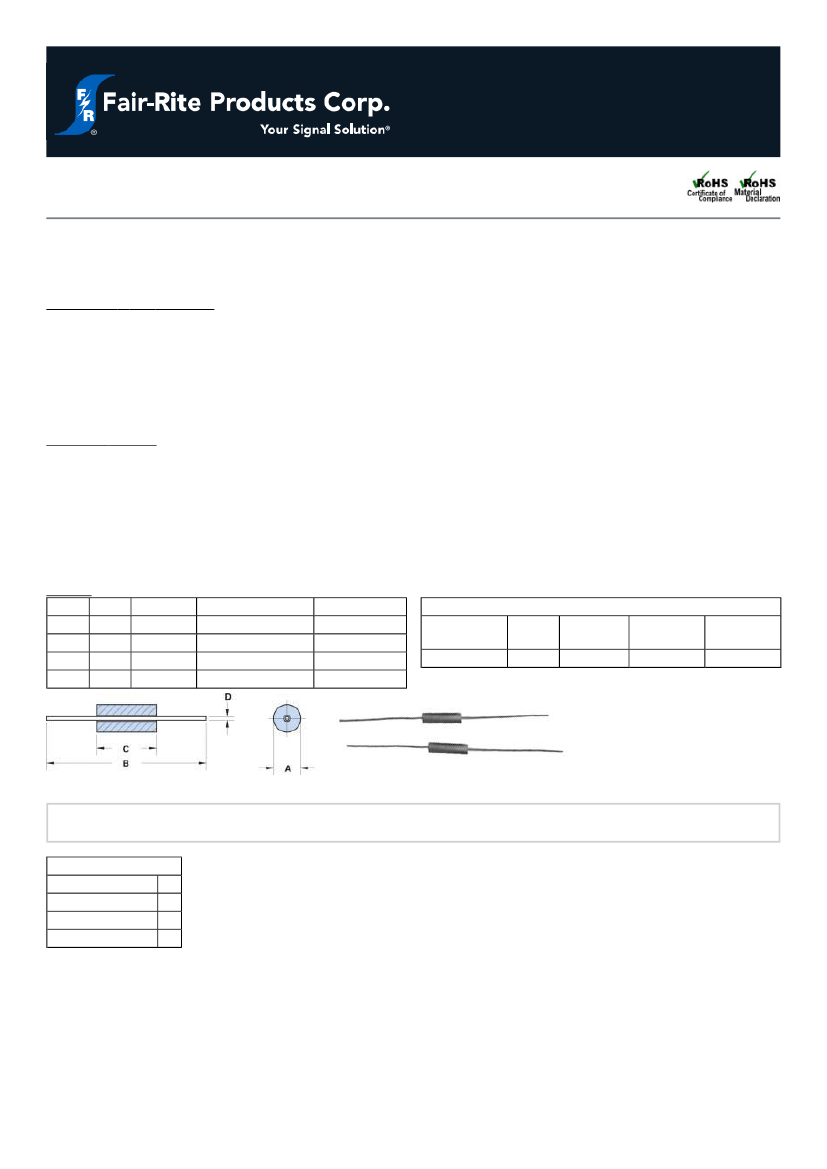

Beads- on- Leads (2743008112)
Part Number: 2743008112
43 BEAD ON LEAD
Explanation of Part Numbers:
– Digits 1 & 2 = Product Class
– Digits 3 & 4 = Material Grade
– Last digit 1 = Bulk Packed 2 = Taped and Reeled
Ferrite suppression beads are supplied assembled on tinned copper wire for automated circuit board assembly.
– Wires are oxygen free high conductivity copper with 100% matte tin plating over a nickel undercoating. The resistance of the
wire is 3.5 mOhm for the 22 AWG and 2.2 mOhm for the 20 AWG wire.
Packaging Options:
– Beads- on- leads can be supplied bulk packed. The last digit of bulk packed parts is a “1”. Parts with a “2” as the last digit of
the part number are supplied taped and reeled per IEC 60286-1 and EIA RS-296- F standards. Taped and reeled parts are supplied
4500 pieces on a 14″ reel. Taping details: Component pitch 5 mm. Inside tape spacing 52.5 mm. Tape width 6 mm.
– Our “Bead- on- Lead Suppression Kit” (part number 0199000028) is available for prototype evaluation.
For any bead- on lead requirement not listed here, feel free to contact our customer service group for availability and
pricing.
Weight: 0.7 (g)
Dim mm mm tol
A
3.5
±0.25
B
62
±1.50
C
11.4 ±0.40
D
0.65 _
nominal inch
0.138
2.44
0.45
0
inch misc.
_
_
_
22 AWG
Reel Information
Tape Width Pitch
mm
mm
6
5
Parts 7"
Reel
_
Parts 13"
Reel
_
Parts 14"
Reel
4500
Chart Legend
+ Test frequency
Typical Impedance (Ω)
10 MHz
72
+
25 MHz
116
+
100 MHz
180
250 MHz
168
Fair- Rite Products Corp.
•
One Commercial Row, Wallkill, New York 12589-0288
888-324-7748 • 845-895-2055 • Fax: 845-895-2629 • ferrites@fair- rite.com • www.fair- rite.com
