ABT-6-4B-Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> ABT-6-4B-Z

ABT-6-4B-Z: DescriptionRF Transformer, 2.2MHz Min, 400MHz Max; CategoryPower management transformer; File Size94KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABT-6-4B-Z Overview

RF Transformer, 2.2MHz Min, 400MHz Max

ABT-6-4B-Z Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LENGTH DIMENSION INCLUDES TERMINAL ALSO
maximum cutoff frequency	400 MHz
minimum cutoff frequency	2.2 MHz
high	5 mm
Insertion loss	3 dB
length	6.5 mm
Manufacturer's serial number	ABT-6-4B
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L6.5XB6XH5 (mm)
surface mount	YES
Transformer type	RF TRANSFORMER
width	6 mm

Preview

Download Datasheet

View All

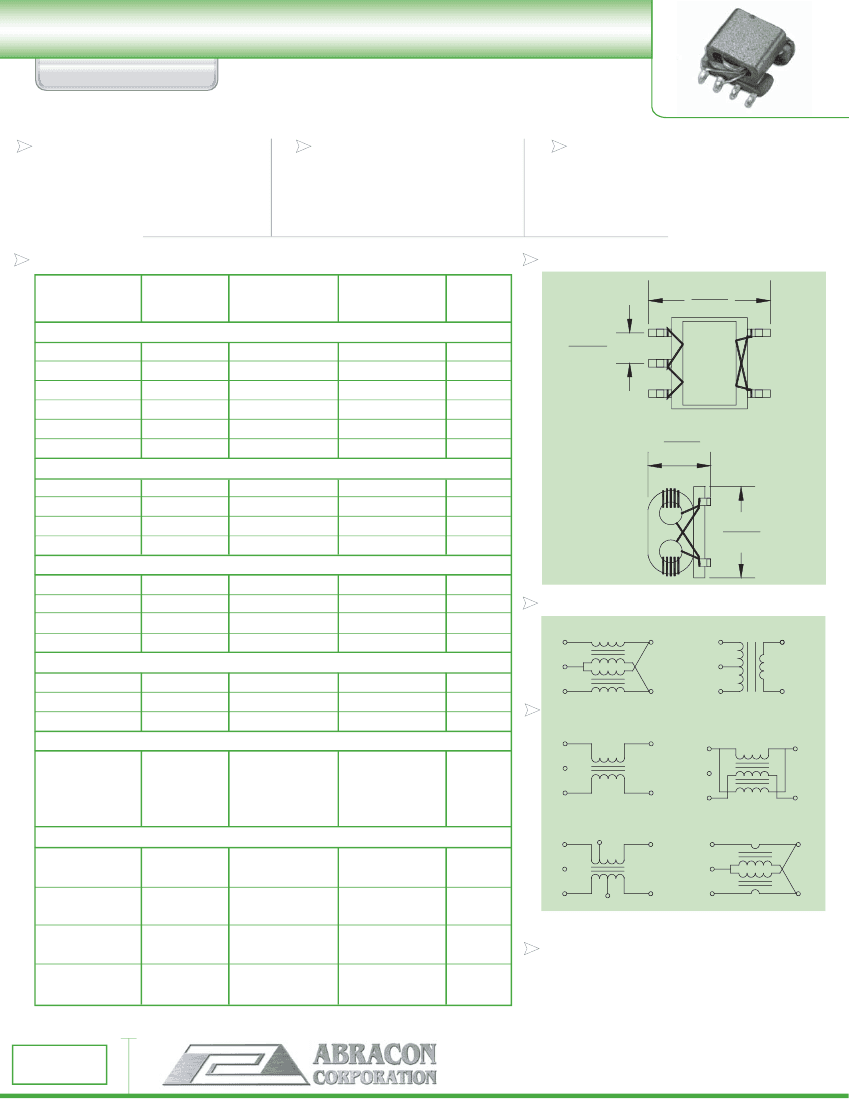

SMD BALUN SERIES

ABT-6-XXX

| | | | | | | | | | | | | | |

FEATURES:

• SMT and Thru Hole available

• High Reliability

• Extended Temperature

• Lead Free

OPTIONS:

• Tape and Reel is standard

• Custom design available

APPLICATIONS:

• RF, Set Top Box, Cable Modem

• Cable TV, Wide Band RF Applicants

• Balance to Unbalance application

• RF signal monitor point

STANDARD SPECIFICATIONS:

Part No

ABT-6-

Turns

Operating

Frequency

MHz

Insertion

Loss

dB Max

3.5

2.5

in-out1,2

4.5dB max

out1-out2,

isolation 10dB

in-out1, 2dB

in-out2, 10dB

in-out1, 1.5dB

in-out2, 11dB

in-out1, 1.3dB

in-ou2t, 13dB

in-out1, 1.0dB

in-out2, 15dB

Figure

OUTLINE DRAWING:

0.256

6,50

Double Balanced Mixer

50-400

10-1000

8-8000

6-6000

5-500

400-1300

Frequency Mixer

9-350

3.5-470

2.2-400

1.5-300

Balun Transformer

5.5-850

1½

2.5-2000

2½

1.2-1200

3½

1.0-1400

4½

Balun Transformer

160-2000

1½

55-1700

2½

30-1400

3½

Power Distributor/Combiners

20-600

0.079

2,00

0.197 Max

5,00

0.236

6,00

FIGURE (WIRE CONNECTION):

Directional Coupler

2½

3½

4½

5½

Out1

Out2

Out1

6-600

Dimensions: inch/mm

TECHNICAL INFORMATION:

• NO MARKING

• Add-T for tape and reel, -Z for lead free

• Operating temperature: -40°C to +85°C

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
