DC0000130: DescriptionMesserleiste SMD, Powerm. 9mm Male Con. SMD. Powerm, 9mm; File Size79KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet View All

DC0000130 Overview

Messerleiste SMD, Powerm. 9mm Male Con. SMD. Powerm, 9mm

Preview

Download Datasheet

View All

12,15

8,95

Ansaughaube

5,85

hood

4,6

1,5

Verpackt im Gurt nach DIN IEC 60286-3

Tape on Reel Packaging according to DIN IEC 60286-3

Verpackungseinheit: 220 Stück

Packaging unit: 220 pcs

2,75

14,95

12,8

14,3

330

0,65

0,5

0,6

0,8

3,675

Abspulrichtung -

Reel off Direction

12,15

ohne Ansaughaube

without hood

4x2=8

Anforderungsstufe 1

Leiterplatten-Layout Vorschlag /

PCB-layout proposal

±0,03

0,85

0,9

±0,03

3x3=9

0,8

0,65

0,7

±0,03

Performance Level 1

Kontaktbereich vergoldet

Mating Area gold plating

Anschlussbereich verzinnt 4-6 µm

Terminal Area 4-6 µm tin plating

Koplanarität der Anschlüsse

≤

0,1 mm

0,75

Coplanarity Area of Termination

≤

0,1 mm

Proprietary notice pursuant to ISO 16016 to be observed.

4,45

2,6

Information:

Tolerances

All Dimensions

in mm

Scale

5:1

0,8

1,5

4x2=8

0,85

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

07.02.2014

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

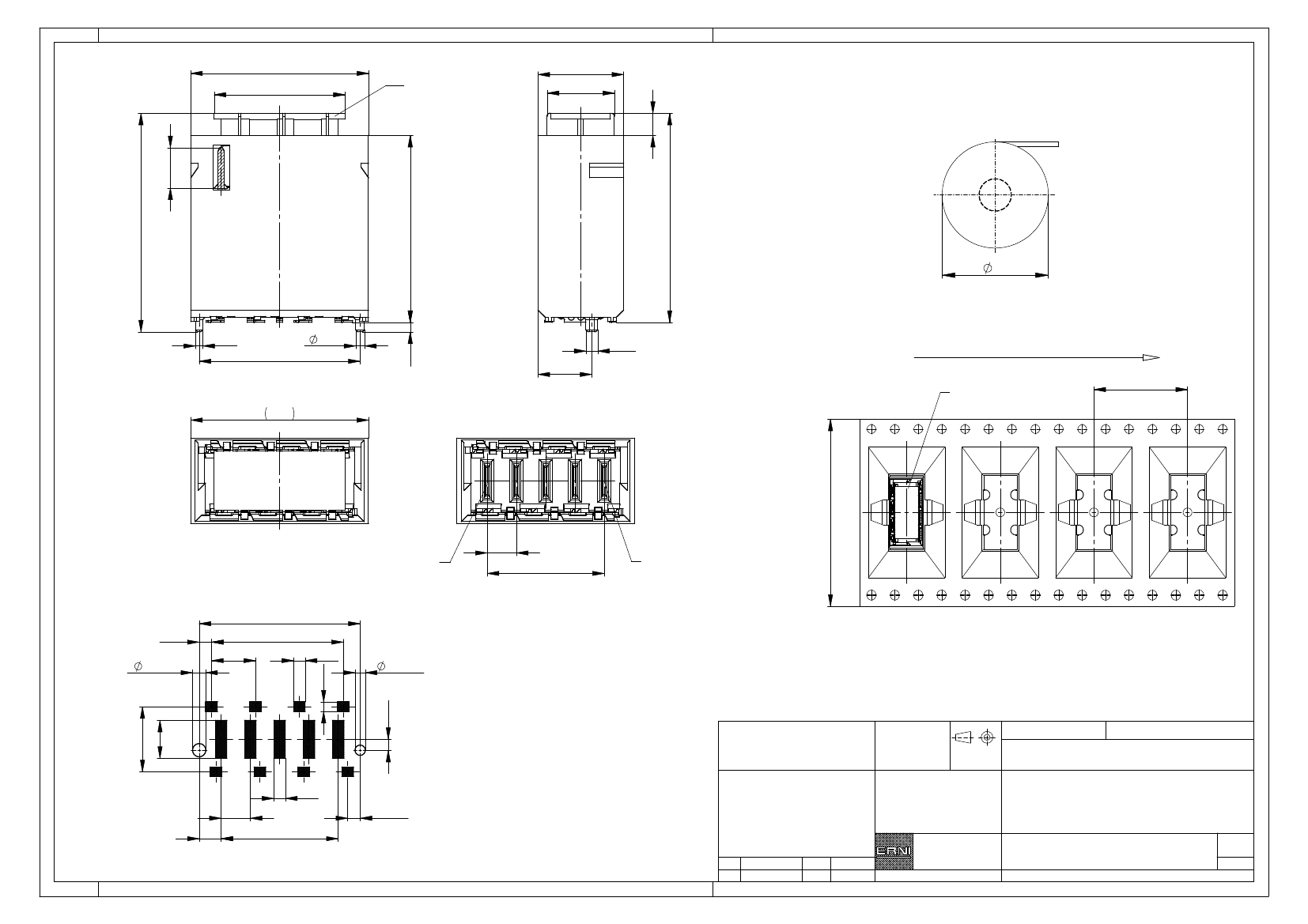

Messerleiste SMD, Powerm. 9mm

Male Con. SMD, Powerm. 9mm

www.ERNI.com

Class

214551

MSPEED

1) Durchmesser des Bohrers /

Drill tool
