ABT-3-4B: DescriptionRF Transformer, 3MHz Min, 400MHz Max, ROHS COMPLIANT; CategoryPower management transformer; File Size121KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABT-3-4B Overview

RF Transformer, 3MHz Min, 400MHz Max, ROHS COMPLIANT

ABT-3-4B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LENGHT DIM. INCLUDES THE TERMINAL LENGHT TOO
maximum cutoff frequency	400 MHz
minimum cutoff frequency	3 MHz
high	3.7 mm
Insertion loss	3 dB
length	5 mm
Manufacturer's serial number	ABT-3-4B
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L5XB3.8XH3.7 (mm)
surface mount	YES
Transformer type	RF TRANSFORMER
width	3.8 mm

Preview

Download Datasheet

View All

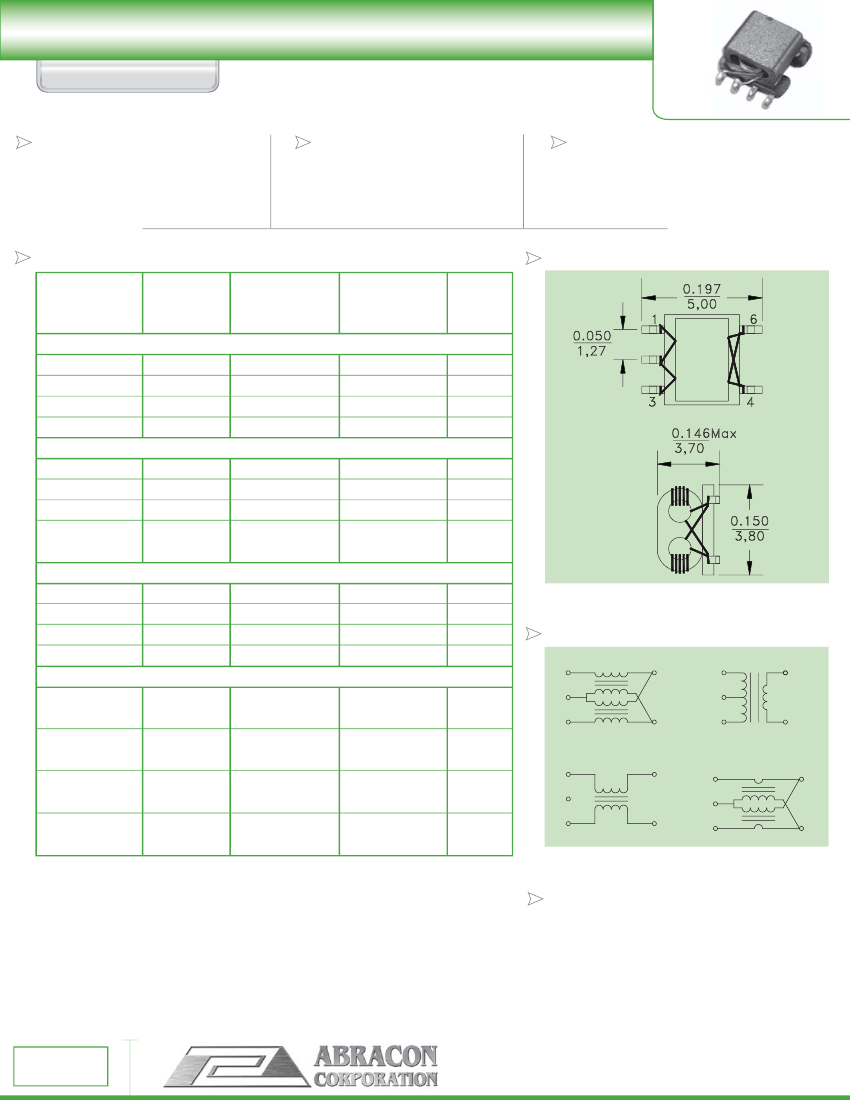

WIDE BAND, RF AND BALUN TRANSFORMERS

ABT-3-XXX

| | | | | | | | | | | | | | |

FEATURES:

• Mini Ceramic Base

• High Reliability

• Extended Temperature

• RoHS Compliance

OPTIONS:

• Tape and Reel is standard

• Custom design available

APPLICATIONS:

• RF, Set Top Box, Cable Modem

• Cable TV, Wide Band RF Applicants

• Balance to Unbalance application

• RF signal monitor point

STANDARD SPECIFICATIONS:

Operating

Frequency

MHz

Double Balanced Mixer (200Ω:50Ω)

25-2000

2½

2A

6-1800

3½

3A

3-1600

4½

4A

2-1700

5½

5A

Frequency Mixer (200Ω:50Ω)

40-500

2:2:2

2B

4.5-600

3:3:3

3B

3-400

4:4:4

4B

1.5-280

5:5:5

5B

(1 & 6 in phase)

Balun Transformer (50Ω:50Ω)

2½

2C

10-2700

3½

3C

3-2400

4½

4C

2-2000

5½

5C

1.3-1800

Directional Coupler (50Ω:100Ω)

2½

2F

50-1500

3F

4F

5F

3½

4½

5½

10-2000

8-1200

5-1000

Part No

ABT-3-

Turns

Insertion

Loss

dB Max

3

Figure

OUTLINE DRAWING:

A

B

3

in-out1, 2dB

in-out2, 10dB

in-out1, 2dB

in-out2, 12dB

in-out1, 1.5dB

in-ou2t, 14dB

in-out1, 1.2dB

in-out2, 15dB

C

F

FIGURE (WIRE CONNECTION):

A

1

6

1

B

6

2

3

4

3

4

C

F

6

1

In

1

6

Out1

F

1

2

4

Out2

3

1

4

Dimensions: inch/mm

TECHNICAL INFORMATION:

• Ordering Code: ABT-XX(Size)-XX(P/N)

• Add-T for tape and reel

• Insulation Resistance: 10MΩ minimum

• See SCD or detail E&M performance

• Operating Temperature: -40°C to +85°C

All specifications subject to change without notice.

rev2.1-6/05

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com
