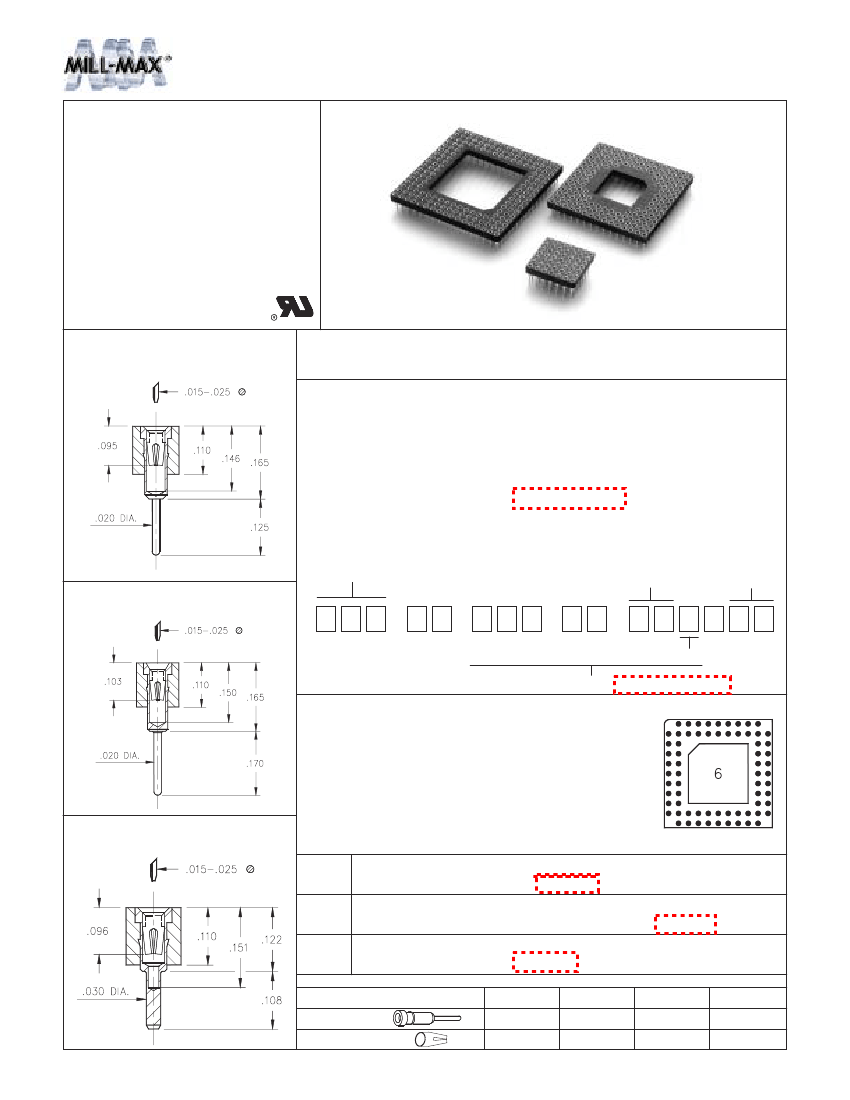

PIN GRID ARRAY SOCKETS
Standard, Long Solder Tail
& Low Profile
•
Series 510, 511, & 515 PGA
sockets are available in three
solder tail lengths:
standard, long and low profile.
•
Choice of three low force clips to
cover all applications.
•
Hi-Temp PCT polyester insulator
material suitable for all forms of
soldering.
Series 510, 511, 515
STANDARD SOLDER TAIL
SERIES 510
Ordering Information
1. Select pin type for PGA socket at left (standard, long, or low profile) to
determine series number.
2. Specify 2-digit plating code from chart at bottom of page
3. Locate footprint pattern from pages 107 to 111, the middle 8 digits of
the part number will be located under the pattern.
4. Determine the last 2 digits of part number from the Contact Chart below.
Series
LONG SOLDER TAIL
SERIES 511
Plating
Code
Window
Clip Type
5 1
-
-
No. of pins
-
Grid size
-
Pattern #
0
Determined from footprint pattern pages 107 to 111
EXAMPLE OF COMPLETE PART NUMBER:
510-93-068-11-061001
This is a 68 pin (11x11 grid) insulator with a .6” square
window and fitted with standard solder tail socket pins.
Pins are tin plated, inner contacts are Mill-Max #32
and are plated 30µ” gold.
LOW PROFILE SOLDER TAIL
SERIES 515
Clip
Type
01
02
03
Contact (Clip) Chart
Mill-Max #32 clip, standard low force, recommended for devices
with less than 150 pins. See page 208 for details.
Mill-Max #35 clip, ultra low force, recommended for devices with
more than 150 pins, but less than 250 pins. See page209 for details.
Mill-Max #43 clip, “ultra lite”, recommended for devices with
more than 250 pins. See page 209 for details.
13
10µ” Au
30µ” Au
91
10µ” Au
93
30µ” Au
99
200µ” Sn/Pb
SPECIFY PLATING CODE XX=
Sleeve (Pin)
Contact (Clip)
200µ” Sn/Pb 200µ” Sn/Pb 200µ” Sn/Pb
Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
