GGA47302550070 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> GGA47302550070

Preview

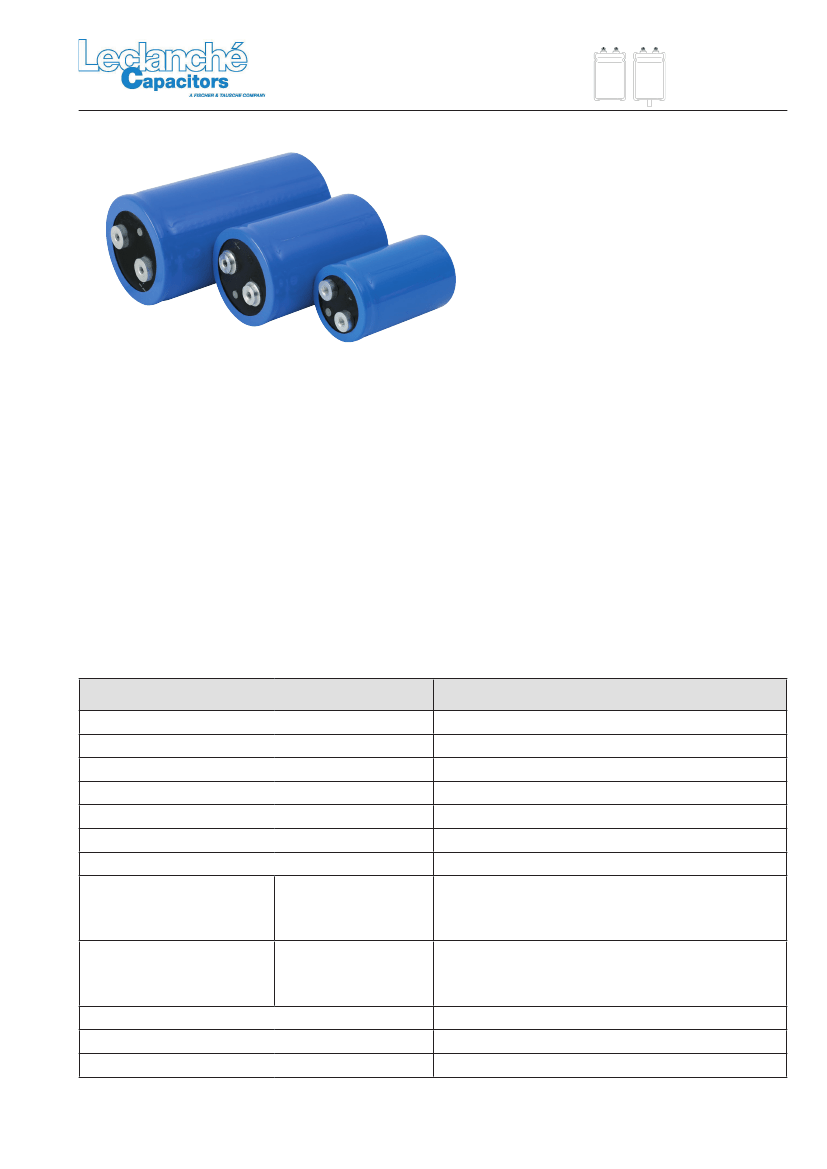

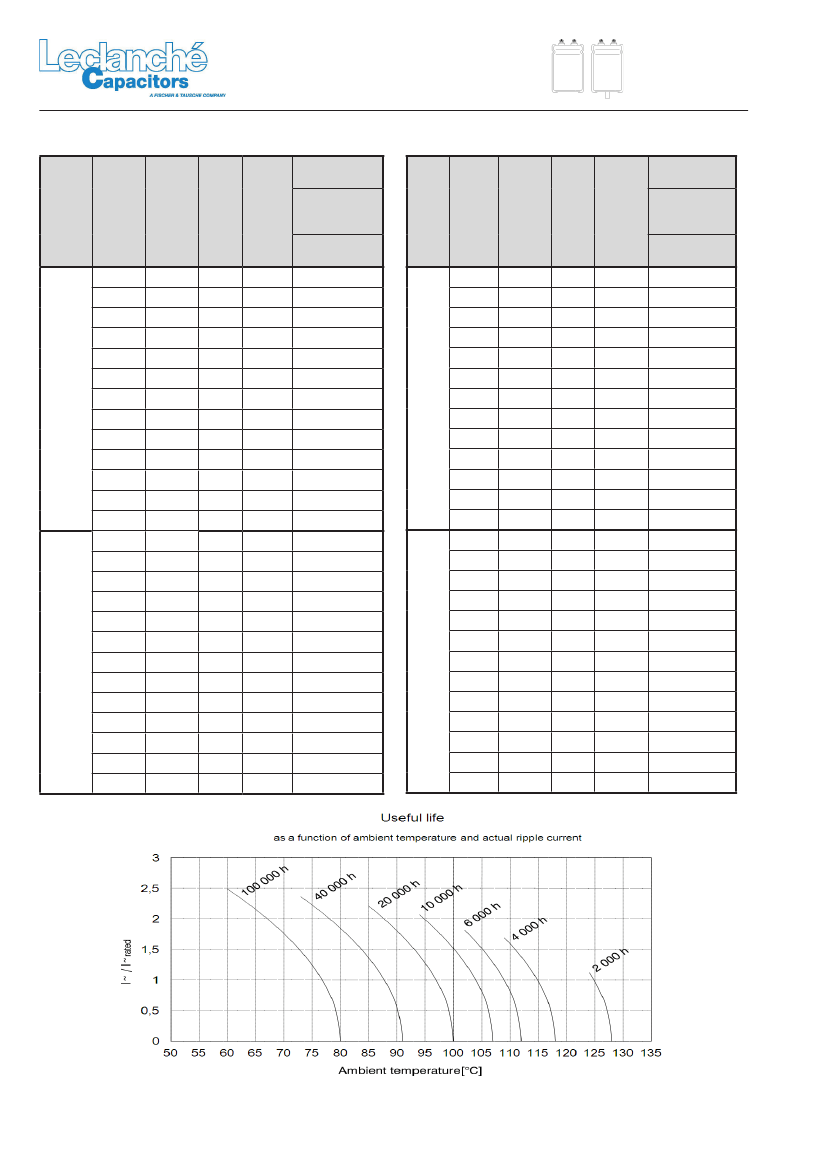

GGA47302550070: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID; CategoryPassive components capacitor; File Size558KB，2 Pages; ManufacturerLeclanche Capacitors; Websitehttp://www.lcap.ch; Environmental Compliance; Related ProductsFound1parts with similar functions to GGA47302550070

Download Datasheet Parametric View All

GGA47302550070 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID

GGA47302550070 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	47000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	50 mm
dielectric materials	ALUMINUM (WET)
ESR	9 mΩ
length	70 mm
Manufacturer's serial number	GG
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Screw Ends
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	8500 mA
series	GG
Base Number Matches	1

Preview

Download Datasheet

View All

125 °C

Screw terminals

Very long lifetime

High CV product

High-temp 125°C

GG

Low inductance ESL

Low temperature – 55°C

Features

•

RoHS compliant

REACH compliant

Different case sizes, voltages and

capacitance combinations

are available on request.

Also in small lots.

All internal contact welded

High temp 125°C

Long useful life

Low inductance ESL

Computer

Industrial

Inverter/drives

Welding

Applications

General specifications

Items

Rated capacitance range C

R

Capacitance tolerance

Rated voltage range U

R

Surge voltage U

S

Max. reverse voltage / ESL

Category temperature range

Leakage current I

L

after 5 min @ U

R

Useful life

2000 h @ 125 °C ; U

R

; I

R~

Characteristics

3.900 … 330.000 µF

±20 %

16 … 63 V

U

S

= 1,15 U

R

2 V / 13 nH

- 55°C ... + 125°C

≤ 0,008 * C

R

[µF] * U

R

[V] + 6 µA [µA]

Requirements

Δ C/C ≤ 30 % of initial value

ESR ≤ 300 % of specified limit

I

L

≤ specified limit

Requirements

Δ C/C ≤ 20

of initial value

ESR ≤ 130 % of specified limit

I

L

≤ specified limit

55/125/56

≥ 2500 V AC

IEC 60384-4

Endurance test

Climatic category IEC 60068

1000 h @ 125 °C , U

R

Voltage proof of the external insulation

Sectional specification

Leclanché Capacitors

1400 Yverdon, Switzerland

Tel. +41 24 445 66 88

Fax +41 24 445 66 89

www.Lcap.ch

capinfo@Lcap.ch

41

Recommended Resources

Voltage dividing power circuit

Power monitor circuit

A Xipu soft starter drives a three-state motor control circuit

DN35 typical application circuit diagram a

555 time program controller circuit (2)

Computer motherboard circuit diagram 810 2_05

GGA47302550070 Similar Products

Part Number	Manufacturer	Description
