81MMBX-50-0-2/111NH datasheet, PDF

Datasheet> All Categories > The connector> The connector> 81MMBX-50-0-2/111NH

81MMBX-50-0-2/111NH: DescriptionBOARD TERMINATED, MALE, RF CONNECTOR, SOLDER, PLUG, ROHS COMPLIANT; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

81MMBX-50-0-2/111NH Overview

BOARD TERMINATED, MALE, RF CONNECTOR, SOLDER, PLUG, ROHS COMPLIANT

81MMBX-50-0-2/111NH Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Other features	VSWR MAX AT 6 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	LCP/PFA
MIL compliance	NO
Manufacturer's serial number	MMBX
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	12.4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.15
Base Number Matches	1

Preview

Download Datasheet

View All

HUBER+SUHNER

DATA SHEET

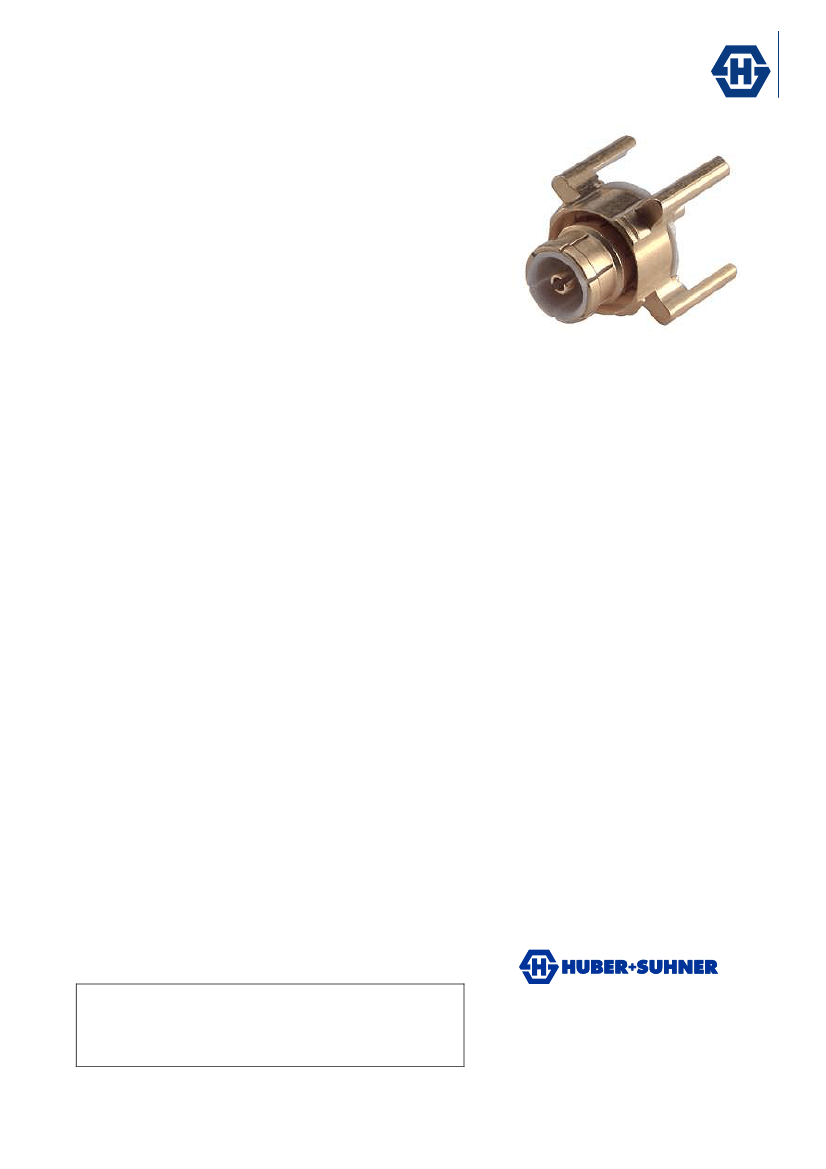

Coaxial PCB Connector: 81_MMBX-50-0-2/111_N

Description

Rev.: F

Straight PCB plug

Interface Standards

SUHNER-MMBX

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

Ω

12.4 GHz

DC to 2 GHz

≥ 30 dB

through holes

0.0007 kg

-55 °C to 155 °C

compliant

Material

Copper Beryllium / Brass

Bronze / Brass

PFA / LCP

DOU-00012625

DCA-00012627

DOU-00002008

81_MMBX-50-0-2/111_NE

81_MMBX-50-0-2/111_NH

81_MMBX-50-0-2/111_NM

Surface Plating

SUCOPRO Plating

Mechanical Data

2 to 6 GHz

≥ 23 dB

Board mounting type

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material Data

81MMBX-50-0-2/111NH Related Products

	81MMBX-50-0-2/111NH	81MMBX-50-0-2/111NM	VJ1812Y223KLPAR5G
Description	BOARD TERMINATED, MALE, RF CONNECTOR, SOLDER, PLUG, ROHS COMPLIANT	BOARD TERMINATED, MALE, RF CONNECTOR, SOLDER, PLUG, ROHS COMPLIANT	CAPACITOR, CERAMIC, MULTILAYER, 250 V, X7R, 0.022 uF, SURFACE MOUNT, 1812, CHIP
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	, 1812
Reach Compliance Code	unknow	unknow	compliant
Other features	VSWR MAX AT 6 GHZ	VSWR MAX AT 6 GHZ	-
Body/casing type	PLUG	PLUG	-
Characteristic impedance	50 Ω	50 Ω	-
Connector type	RF CONNECTOR	RF CONNECTOR	-
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-
Contact completed and terminated	NOT SPECIFIED	NOT SPECIFIED	-
Contact point gender	MALE	MALE	-
Coupling type	SNAP	SNAP	-
DIN compliance	NO	NO	-
Filter function	NO	NO	-
IEC compliance	NO	NO	-
insulator material	LCP/PFA	LCP/PFA	-
MIL compliance	NO	NO	-
Manufacturer's serial number	MMBX	MMBX	-
Installation method	STRAIGHT	STRAIGHT	-
Installation type	BOARD	BOARD	-
Maximum operating frequency	12.4 GHz	12.4 GHz	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	-
Panel mounting	NO	NO	-
Termination type	SOLDER	SOLDER	-
voltage standing wave ratio	1.15	1.15	-
Base Number Matches	1	1	-
