CJ88XEI: DescriptionTelecom and Datacom Connector, 4 Contact(s), Female, Jack; CategoryThe connector The connector; File Size89KB，2 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com

Download Datasheet Parametric Compare View All

CJ88XEI Overview

Telecom and Datacom Connector, 4 Contact(s), Female, Jack

CJ88XEI Parametric

Parameter Name	Attribute value
Maker	Panduit
Reach Compliance Code	unknown
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	CJ88XEI
Mixed contacts	NO
Installation type	CABLE
Total number of contacts	4
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

specifications

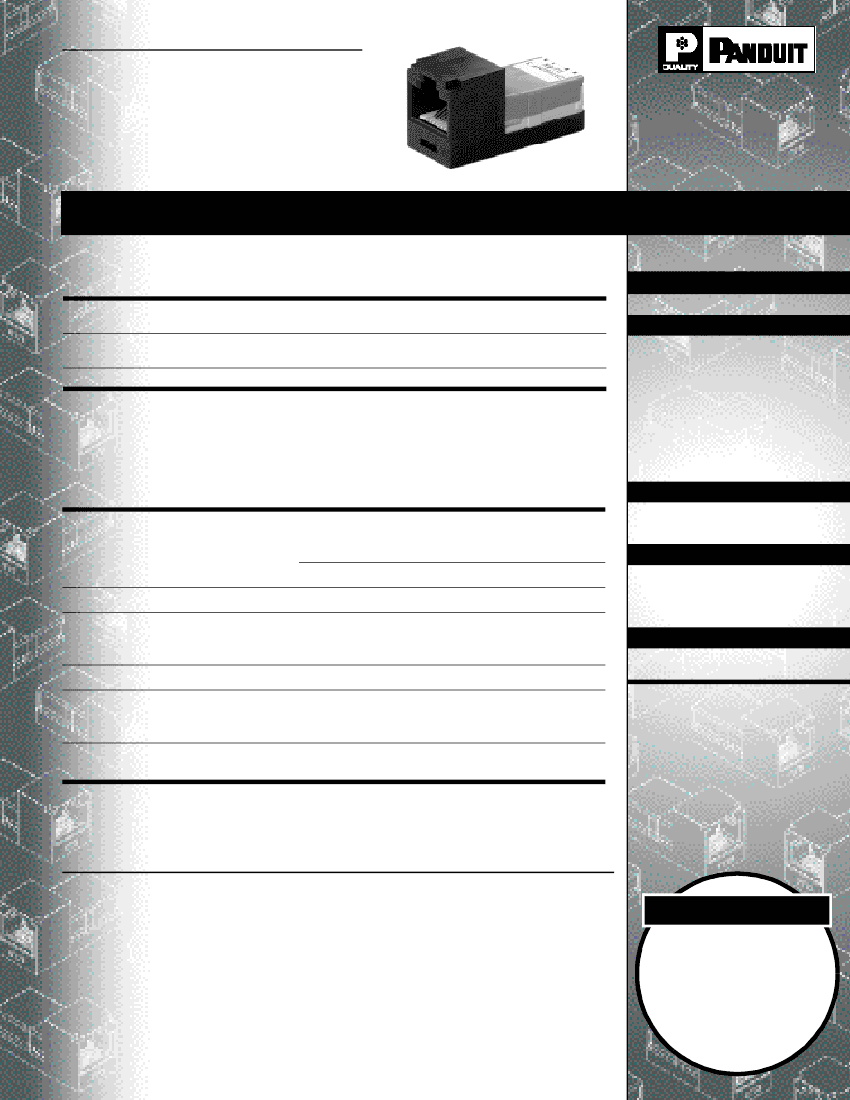

Eight position Category 3 modular jack shall

terminate four conductors using positions 1, 2, 4

and 5 of an RJ48X interface. The jack shall have

shorting bars to avoid signal interruption when

plug is disengaged from jack. The jack shall

terminate 24 awg cable without requiring the use

of a punchdown tool.

NETWORK CONNECTIVITY GROUP

SPEC SHEET

RJ48X Jack

technical information

Exceeds all Category 3 Connector requirements when mated with Panduit Patch

Cords

Exceeds all Category 3 Connector requirements when used with Category 3 cable

and Panduit Patch Cords

Flammability rating:

UL94-V0

INI

-C

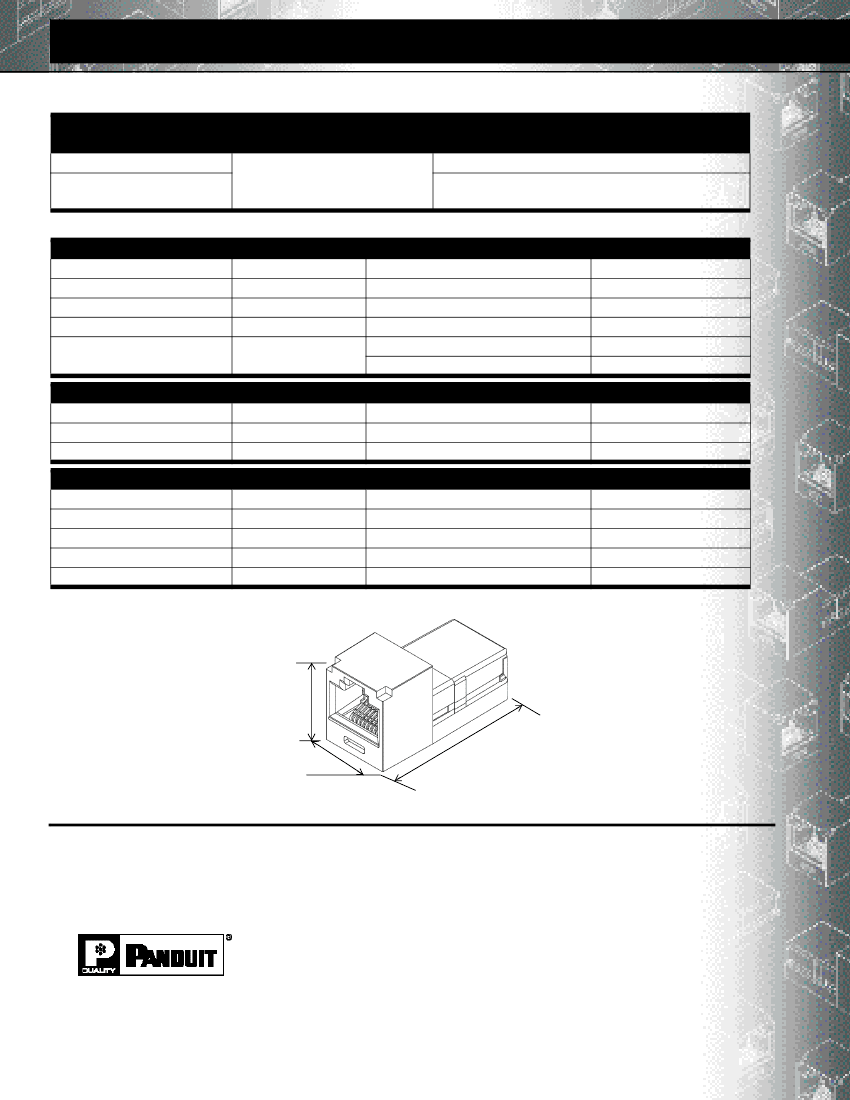

RJ48X Jack

Modular Jack:

Patch Cords^

1 foot:

3 feet:

5 feet:

7 feet:

9 feet:

14 feet:

20 feet:

UTPCH1

UTPCH3

UTPCH5

UTPCH7

UTPCH9

UTPCH14

UTPCH20

CPP24WBL

CPP48WBL

CP24BL

CP48BL

CP72BL

CJT-X

CJ88X**

key features and

Modular

...benefits

Can be used with other Panduit connectors in a

mixed media solution, providing labor and space

savings

Allows easy moves, adds and changes

Snap-In Faceplate Patch Panels

24 port:

48 port:

24 port:

48 port:

72 port:

Termination Tool

Termination

Tool:

All Metal Patch Panels

Industry standard RJ48X interface

Familiar to installers

Shorting bars

Provide continuous connection when the plug is

disengaged from the jack, avoiding unnecessary

central office alarms

Maximizes use of limited space

Can be used with multiple patch panels, surface

mount boxes and faceplates, allowing maximum

flexibility

Can terminate with standard channel lock pliers

or handy termination tool

High density

INI

-C

product

**Substitute:

IW = Off White

EI = Electrical Ivory

IG = Light Gray

WH = White

BL = Black

BU = Blue

RD = Red

YL = Yellow

OR = Orange

GR = Green

VL = Violet

^For other colors add suffix “BL” Black,

“BU” Blue, “GR” Green, “RD” Red

and “YL” Yellow

Does not require the use of a

punch down tool

applications

The RJ48X connector is used for the

connection of 1.544 Mbps T1 digital service

lines. The RJ48X modular connector is an

8-position jack wired with four conductors

on 1/2/4/5, with a shorting bar that allows a

signal to pass from one pair to the other

when a plug is not inserted in the jack. The

shorting bar allows the user to disconnect

service without setting off the alarm at the

service provider, thus preventing costly

service and maintenance calls. The RJ48X

modular jack can be used in conjunction

with Panduit

INI

-C

Modular Patch

Panels to provide the ultimate mixed-media

modular solution for ISPs, Co-Location

facilities, web hosting sites, service

providers, and business premise customers

using high speed T1 digital service lines.

installer tip

Snap tool CJT-X

insures

conductors are

fully terminated

Visit our website at: www.panduitncg.com

CJ88XEI Related Products

	CJ88XEI	CJ88XBU	CJ88XGR	CJ88XIG	CJ88XIW	CJ88XOR	CJ88XRD	CJ88XVL	CJ88XWH	CJ88XYL
Description	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Jack
Maker	Panduit	Panduit	Panduit	Panduit	Panduit	Panduit	Panduit	Panduit	Panduit	Panduit
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	CJ88XEI	CJ88XBU	CJ88XGR	CJ88XIG	CJ88XIW	CJ88XOR	CJ88XRD	CJ88XVL	CJ88XWH	CJ88XYL
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Total number of contacts	4	4	4	4	4	4	4	4	4	4
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
