HN27C4001RR-12 datasheet, PDF - EEWORLD Datasheet

HN27C4001RR-12: DescriptionOTP ROM, 512KX8, 120ns, CMOS, PDSO32, PLASTIC, REVERSE, TSOP2-32; Categorystorage storage; File Size307KB，14 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric View All

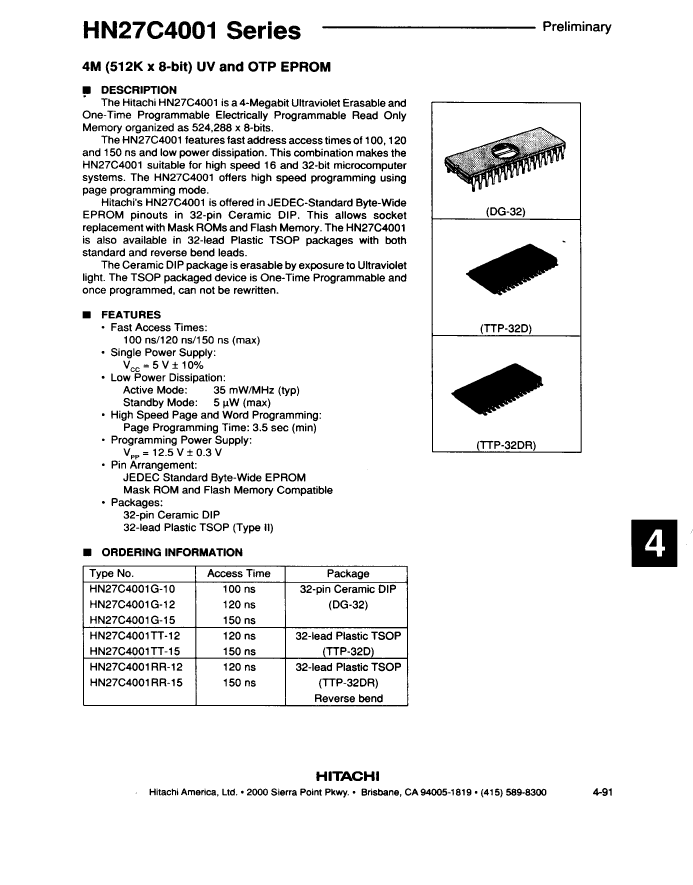

HN27C4001RR-12 Overview

OTP ROM, 512KX8, 120ns, CMOS, PDSO32, PLASTIC, REVERSE, TSOP2-32

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	TSOP2
package instruction	TSOP1-R, TSOP32,.46
Contacts	32
Reach Compliance Code	unknow
ECCN code	EAR99

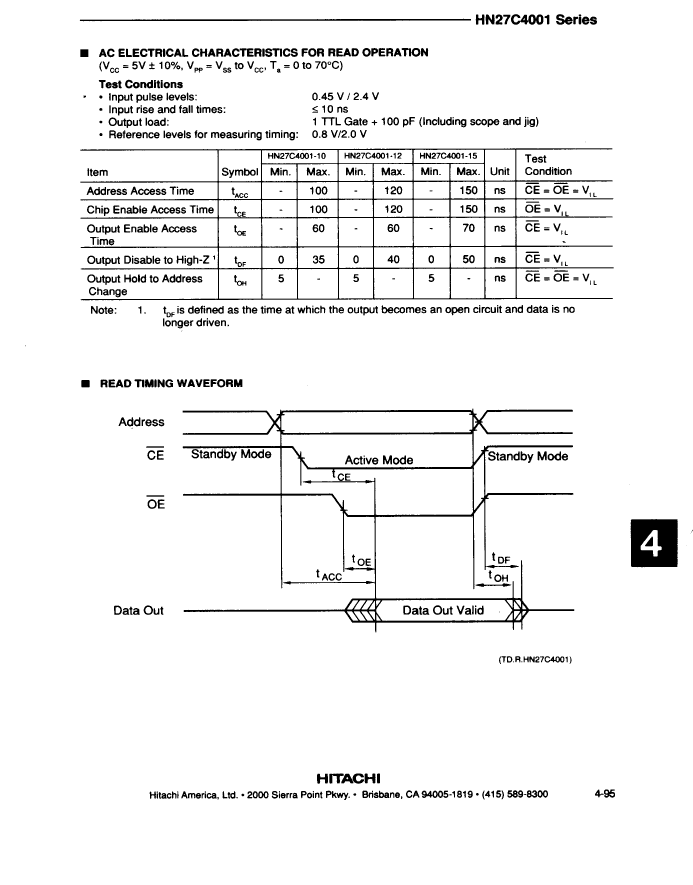

Maximum access time	120 ns
Other features	PAGE WRITE
I/O type	COMMON
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
length	18.4 mm
memory density	4194304 bi
Memory IC Type	OTP ROM
memory width	8
Number of functions	1
Number of terminals	32
word count	524288 words
character code	512000

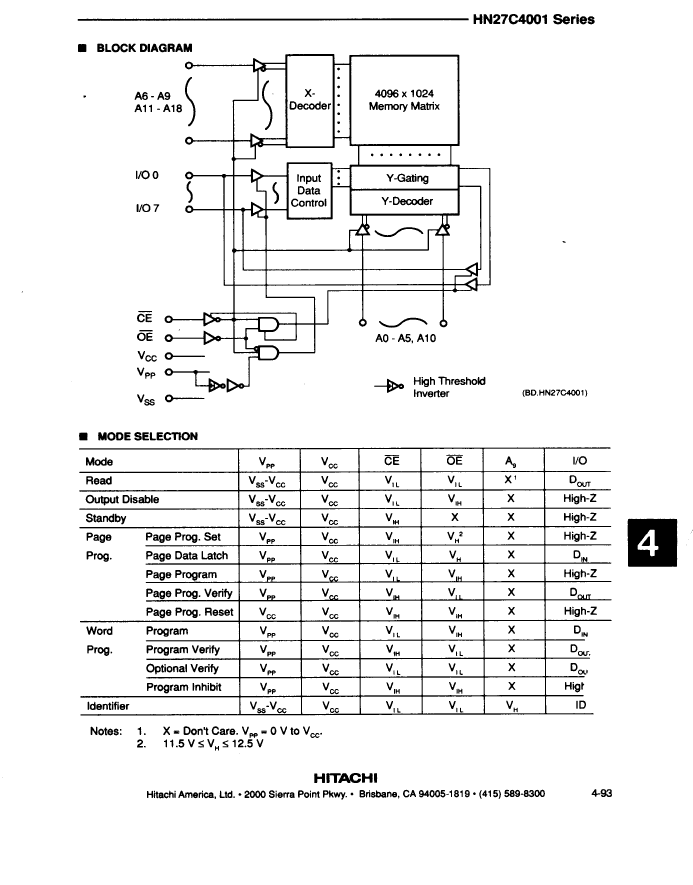

Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1-R
Encapsulate equivalent code	TSOP32,.46
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified

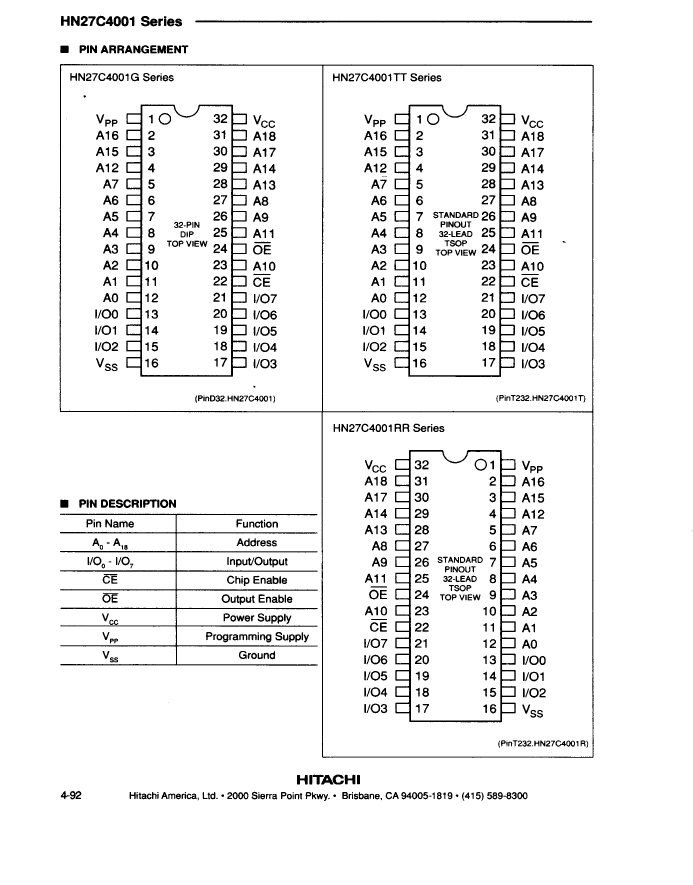

reverse pinout	YES
Maximum seat height	1.2 mm

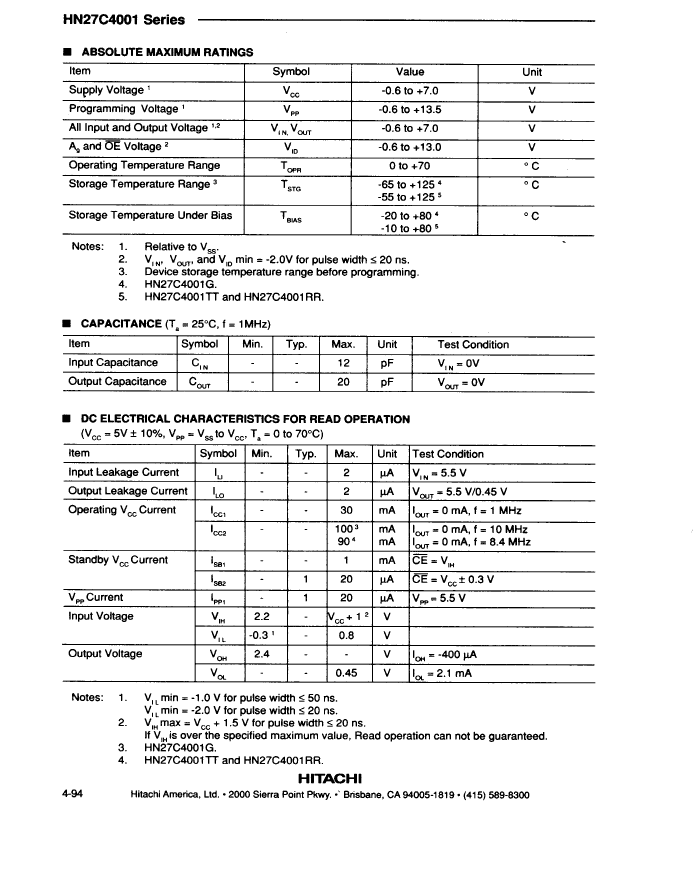

Maximum standby current	0.00002 A
Maximum slew rate	0.09 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
width	8 mm
Base Number Matches	1
