HK2G127M25025HA datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> HK2G127M25025HA

Preview

HK2G127M25025HA: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 120uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size205KB，2 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/; Environmental Compliance

Download Datasheet Parametric View All

HK2G127M25025HA Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 120uF, Through Hole Mount, RADIAL LEADED

HK2G127M25025HA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	120 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.65726 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	400 V
ripple current	640 mA
surface mount	NO
Delta tangent	0.15
Terminal surface	Tin (Sn)
Terminal shape	SNAP-IN
Base Number Matches	1

Preview

Download Datasheet

View All

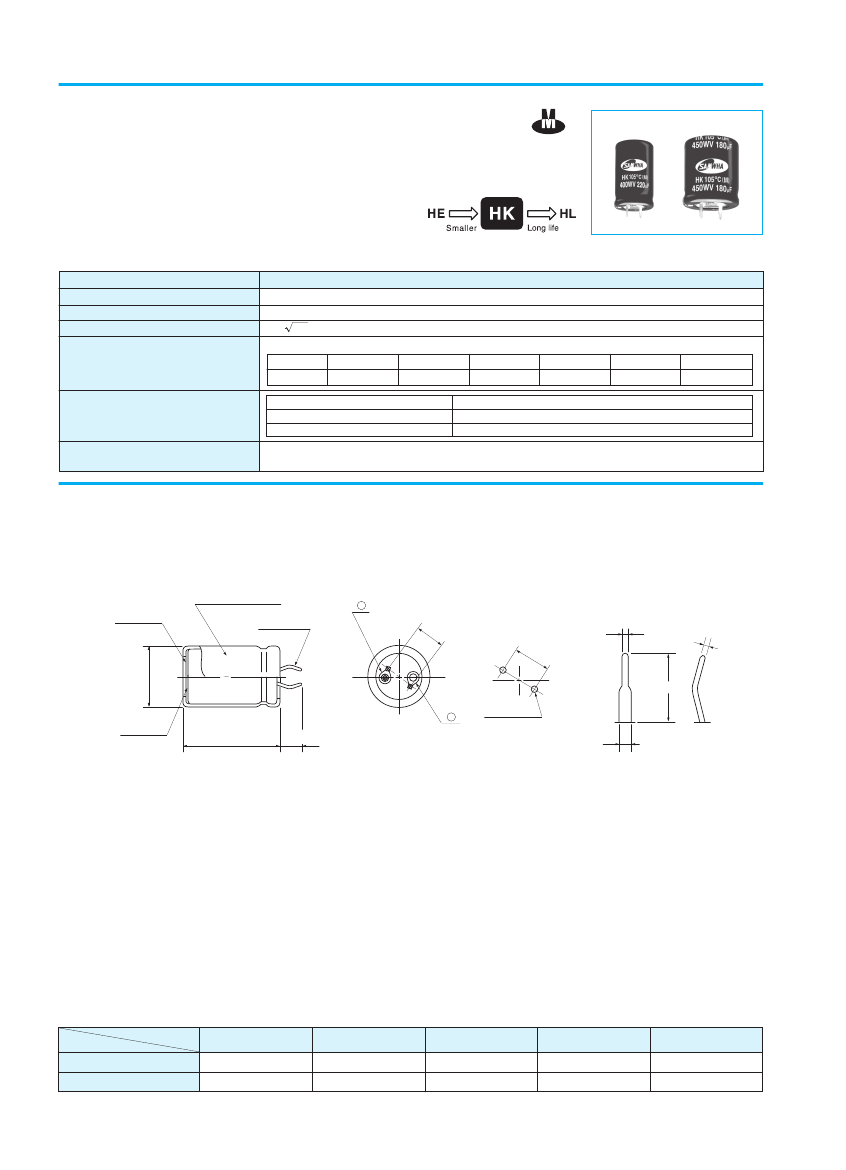

LARGE ALUMINUM ELECTROLYTIC CAPACITORS

HK

Wide Temperature Range, Miniaturized

Series

Miniaturized

Smaller case sizes than HE series

High voltage, high capacitance series

Load life of 3000 hours at 105 C

Complied to the RoHS directive

Item

Operating temperature range

Capacitance tolerance

Leakage current max.

Dissipation factor max.

(at 120Hz, 20°

C)

Load life

(after application of the rated

voltage for 3000 hours at 105°

C)

Shelf life (at 105°

C)

Characteristics

WV< 350 : -40 ~ +105 C, WV 350 : -25 ~ +105 C

20% at 120Hz, 20 C

I=3 CV ( A) (after 5 minutes)

Capacitance > 1000 F : tan increases by 0.01 for each 1000 F from below value.

WV

tan

160

0.15

200

0.15

250

0.15

350

0.15

400

0.15

450

0.20

Leakage current

Capacitance change

tan

Less than specified value

Within 20% of initial value

Less than 200% of specified value

After 1000 hours no load test, leakage current, capacitance and tan are same as load life value.

The measurement shall be performed at 20 C by the KS C 6503 clause 5.1.

Unit : mm

DRAWING

Insulating sleeve

Bottom plate

Terminal

PC Board

Mounting Holes

10

Terminal

0.8 0.1

0.8

0.1

10

D 1 max.

0.2

6.0

2

0.1

1

Safety vent

L 2 max.

6.0 1

4.0 0.5

1.5

0.1

Shorter terminal(4.0 0.5) is also available upon request.

Terminal length of height 20mm products is applied shorter terminal to standard terminal type.

FREQUENCY COEFFICIENT OF PERMISSIBLE RIPPLE CURRENT

WV

Frequency

160 ~ 250

300 ~

60Hz

0.85

120Hz

1.00

300Hz

1.20

1.15

1kHz

1.25

1.20

10kHz≦

1.45

1.40

170
