DF9A-11S-1V(59) datasheet, PDF

Datasheet> All Categories > The connector> The connector> DF9A-11S-1V(59)

DF9A-11S-1V(59): DescriptionBoard Connector, 11 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator, Plug; CategoryThe connector The connector; File Size263KB，8 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

DF9A-11S-1V(59) Overview

Board Connector, 11 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator, Plug

DF9A-11S-1V(59) Parametric

Parameter Name	Attribute value
Maker	Hirose
Reach Compliance Code	unknown
Other features	W/O METAL FITTING, TAPE PKG.
Board mount options	PEG
body width	0.165 inch
subject depth	0.13 inch
body length	0.366 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN/LEAD
Contact point gender	FEMALE
Contact material	PHOSPHORUS-COPPER
contact mode	STAGGERED
Contact resistance	50 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
Durability	100 Cycles
Insulation resistance	500000000 Ω
Insulator color	BEIGE
insulator material	POLYAMIDE
Manufacturer's serial number	DF9
Plug contact pitch	0.039 inch
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-45 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	3.9116 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	11

Preview

Download Datasheet

View All

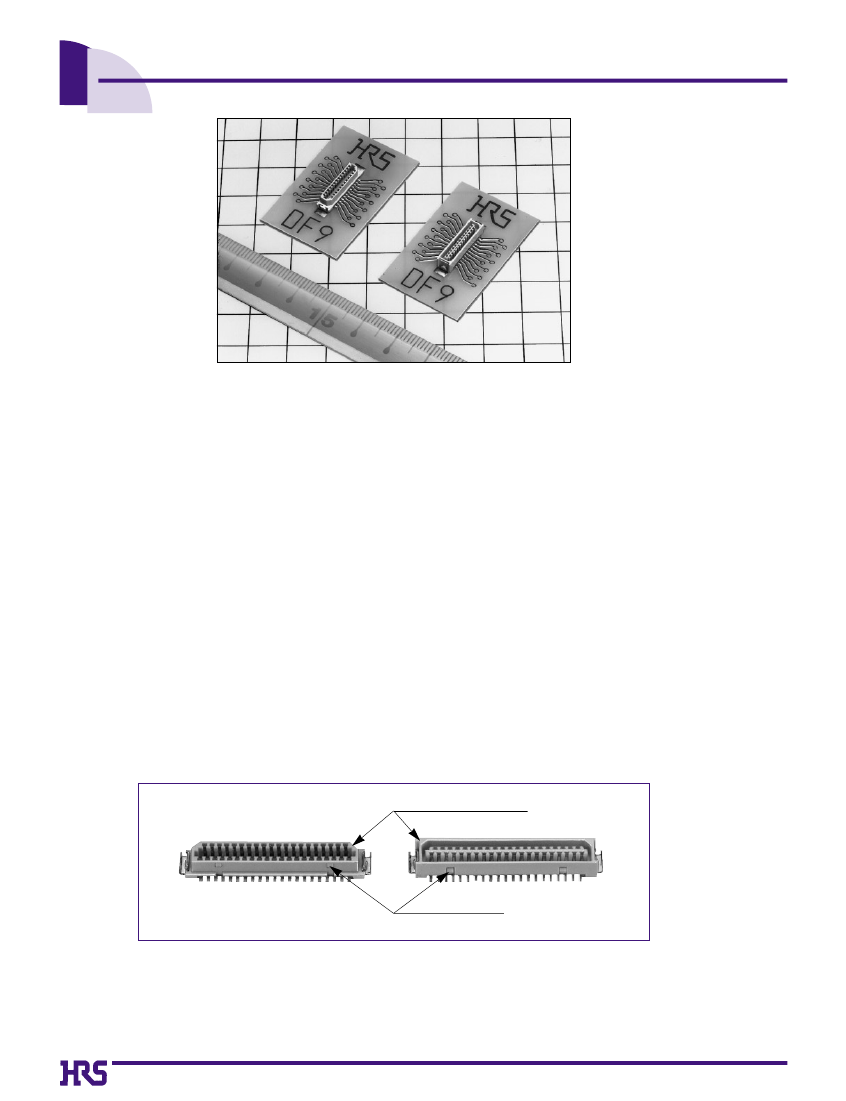

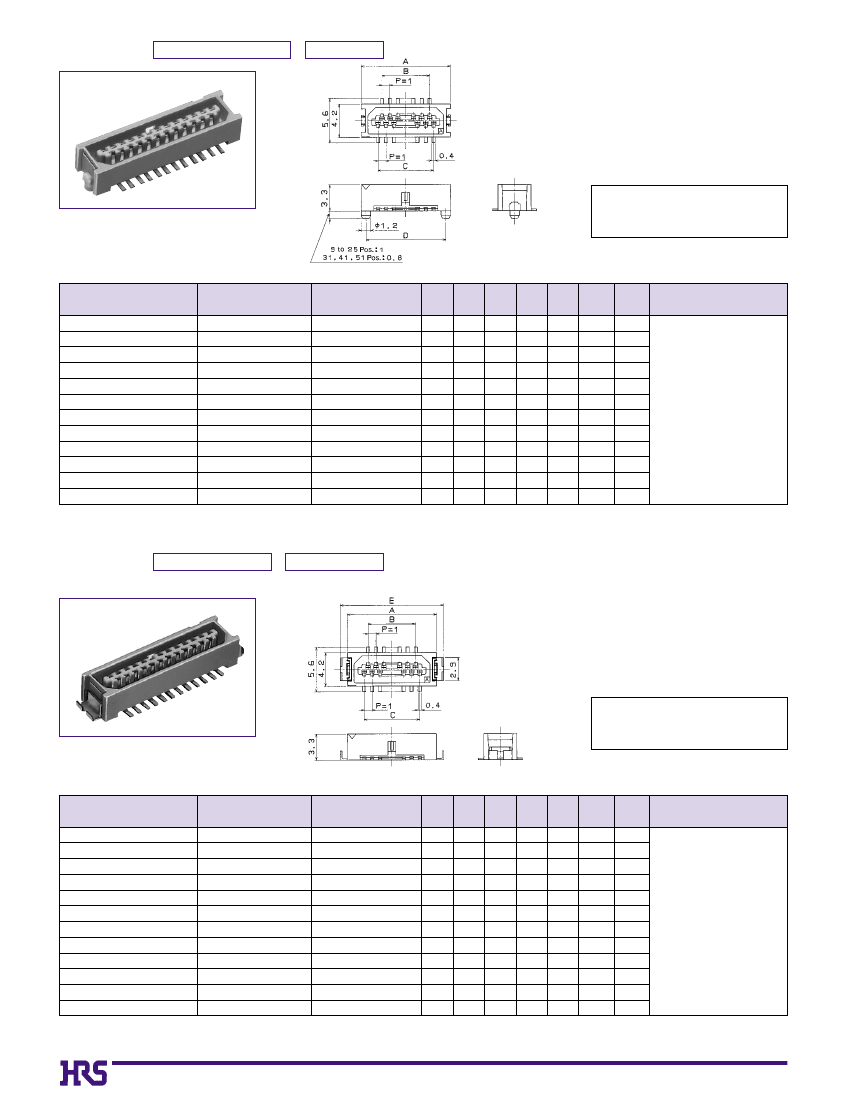

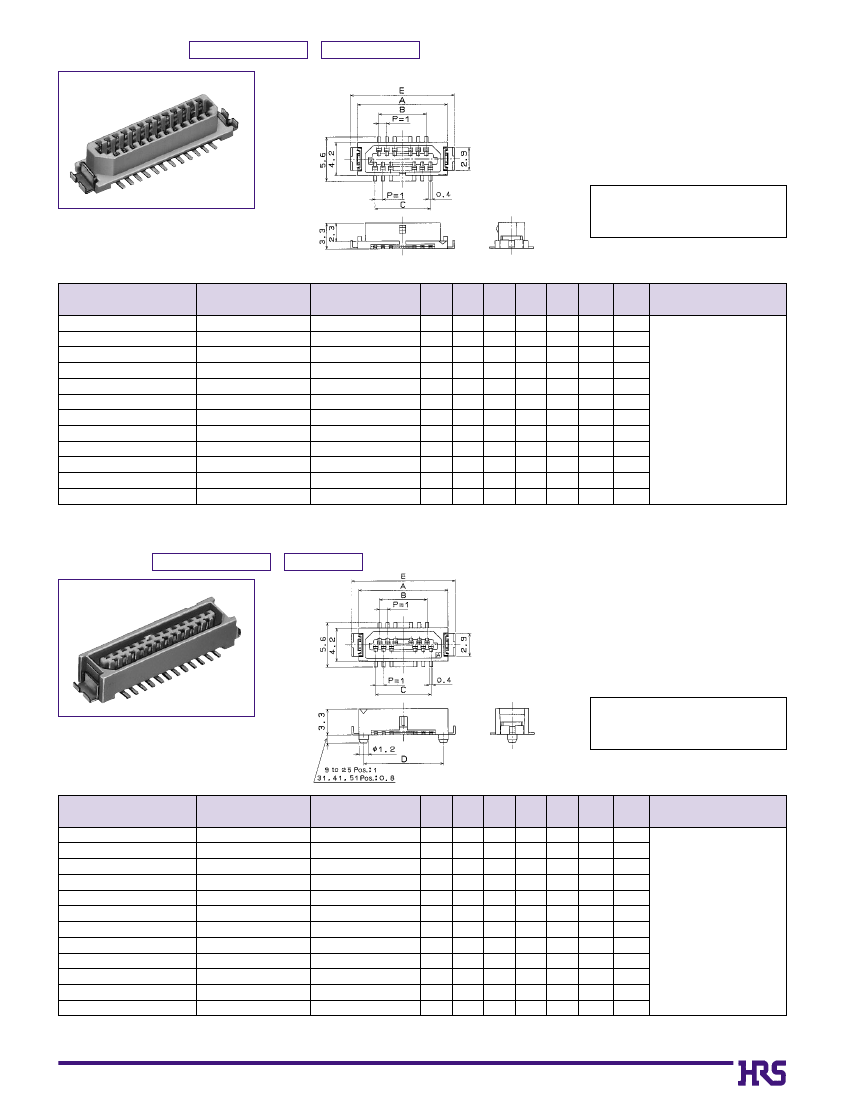

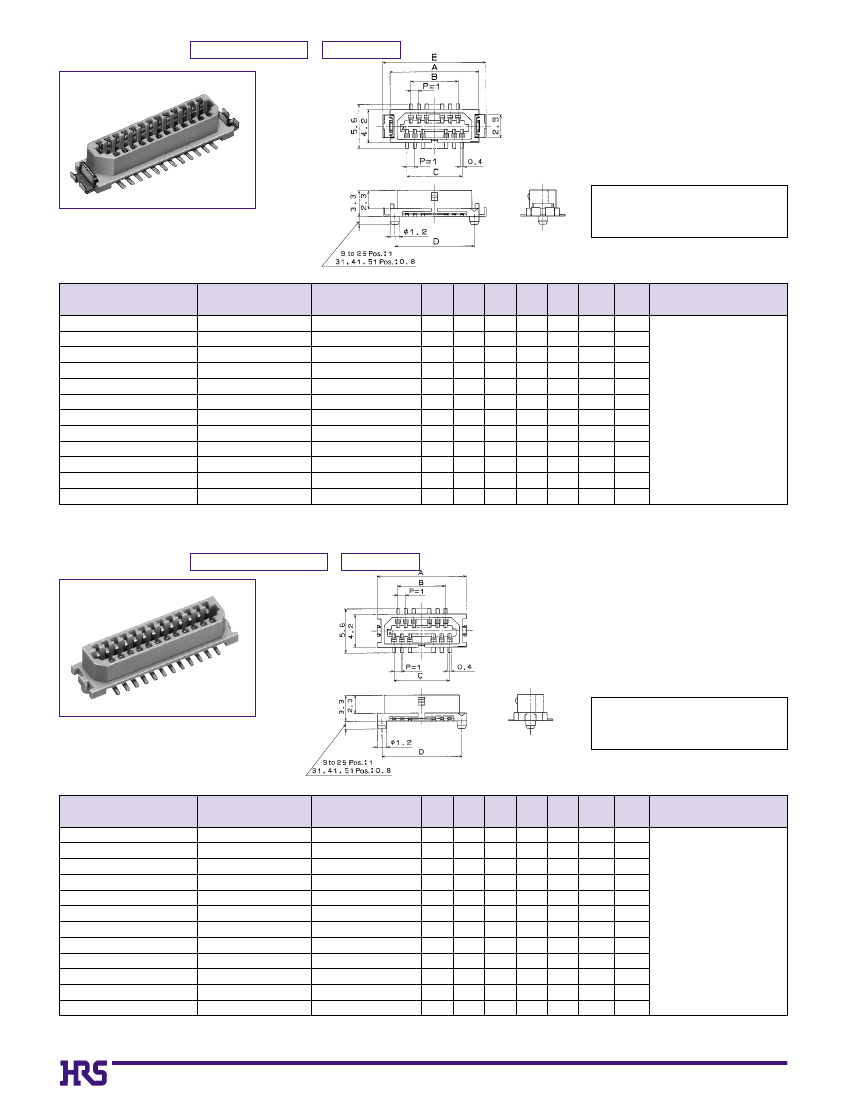

1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)

DF9 Series

sFeatures

1. Compliant with the VESA FPDI-1 Standard Interface Connector

The 31 and 41 contact connectors comply with the standard connector specification for the flat panel display interface, which

U.S VESA. has selected as FPDI-1.

VESA: Video Electronics Standards Association

FPDI-1: Flat Panel Display Interface

2. Perfect Mis-insertion Prevention

The mating area is designed in a trapezoidal structure, and perfectly prevents the mis-insertion despite the miniature size.

3. Equipped with Easy Lock Mechanism

The easy lock mechanism assures the firm insertion and extraction properties as well as the insertion/extraction feeling touch.

4. Smooth Insertion and Extraction Feeling

The contact is constructed without the material fragible surface in the contact portion, and provides a smooth insertion and

use feeling.

5. Setting Two Type Platings as Standard

Two type platings, tin plated and gold plated, are prepared, and either appropriate plating can be selected under cost and use

conditions.

Structure to Prevent Mis-insertion

Lock Mechanism

sApplications

LCD (Liquid Crystal Display), Mobile phone, Note PC

A278

DF9A-11S-1V(59) Related Products

	DF9A-11S-1V(59)	DF9A-11P-1V(59)	DF9A-13S-1V(59)	DF9A-15P-1V(59)
Description	Board Connector, 11 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator, Plug	Board Connector, 11 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator, Receptacle	Board Connector, 13 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator, Receptacle	Board Connector, 15 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator, Receptacle
Maker	Hirose	Hirose	Hirose	Hirose
Reach Compliance Code	unknown	unknown	unknown	unknow
Other features	W/O METAL FITTING, TAPE PKG.	W/O METAL FITTING, TAPE PKG.	POLARIZED	POLARIZED
Board mount options	PEG	PEG	PEG	PEG
body width	0.165 inch	0.165 inch	0.165 inch	0.165 inch
subject depth	0.13 inch	0.13 inch	0.13 inch	0.13 inch
body length	0.366 inch	0.366 inch	0.406 inch	0.445 inch
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	GOLD	GOLD
Contact completed and terminated	TIN/LEAD	TIN/LEAD	GOLD	GOLD
Contact point gender	FEMALE	MALE	FEMALE	MALE
Contact material	PHOSPHORUS-COPPER	PHOSPHORUS-COPPER	PHOSPHOR COPPER	PHOSPHOR COPPER
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	50 mΩ	50 mΩ	50 mΩ	50 mΩ
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BEIGE	BEIGE	BEIGE	BEIGE
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Manufacturer's serial number	DF9	DF9	DF9	DF9
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Installation option 1	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-45 °C	-45 °C	-45 °C	-45 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	3.9116 mm	3.9116 mm	3.9116 mm	3.9116 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.9906 mm	0.9906 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	11	11	13	15
