This document was generated on 05/11/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Description:
0015249067
Active
4.20mm (.165") Pitch Mini-Fit BMI™ Header, Dual Row, Right Angle, with Snap-in
Plastic Peg PCB Lock, 6 Circuits, PA Polyamide Nylon 6/6, UL 94V-2, with Select Gold
(Au) Plating
Documents:
3D Model
Drawing (PDF)
Product Specification PS-5556-002 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Comments
PCB Headers
42404
Board-to-Board, Wire-to-Board
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 Mini-Fit Plus HCS™
Crimp Terminal Crimpted to to 16 AWG wire. . See
Molex product specification PS-45750-001 for additional
current de-rating information.
Mini-Fit BMI™
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Product Name
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Guide to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
No
6
6
Natural
30
94V-2
No
Yes
Yes
Brass
Gold
Tin
Nylon
2
Right Angle
0.130 In
3.30 mm
Yes
Yes
0.070 In
1.80 mm
Tray
0.165 In
4.20 mm
30
0.76
100
2.50
Yes
Yes
Email pro
For a mu
Complian
Please vi
non-prod
Search
42404S
Mates
15-06-0
Recept
Recept
Vertica
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Partial
No
No
-40°C to +105°C
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
13A
600V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
Wave Capable (TH only)
1
240
Material Info
Old Part Number
42404-06A5
Reference - Drawing Numbers
Packaging Specification
Product Specification

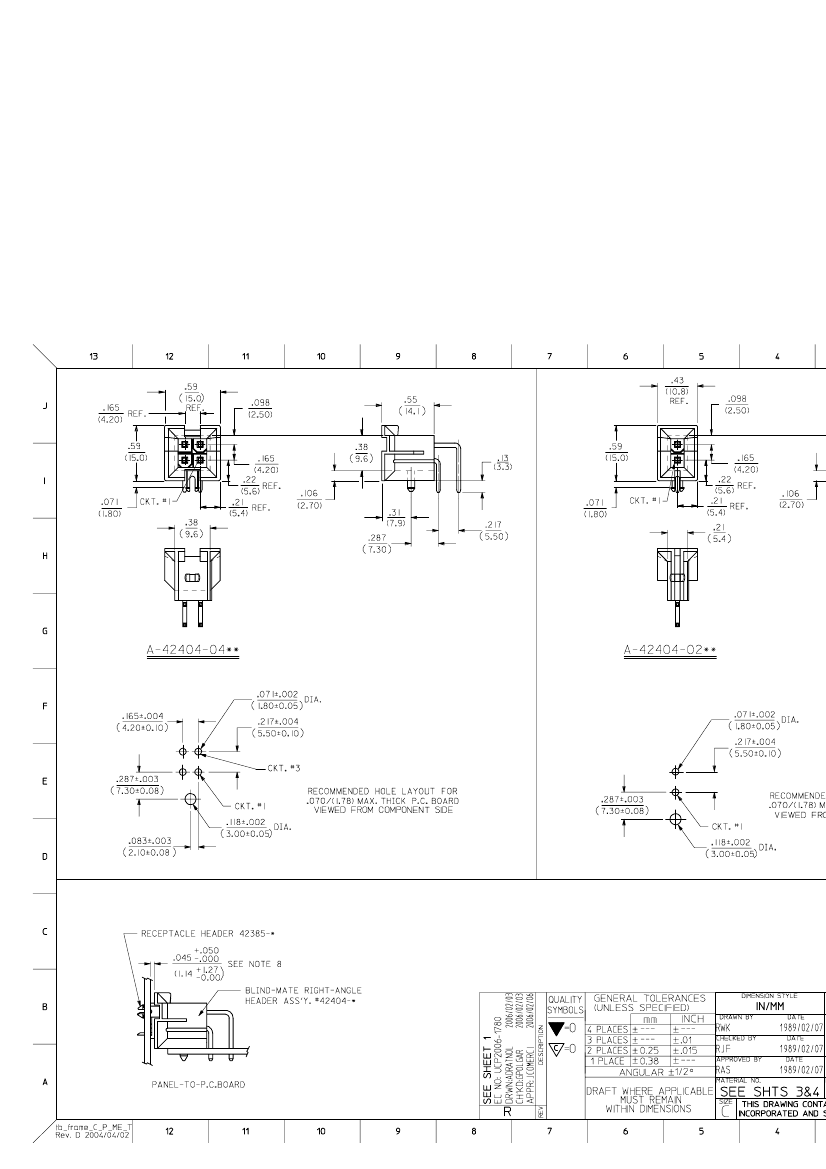

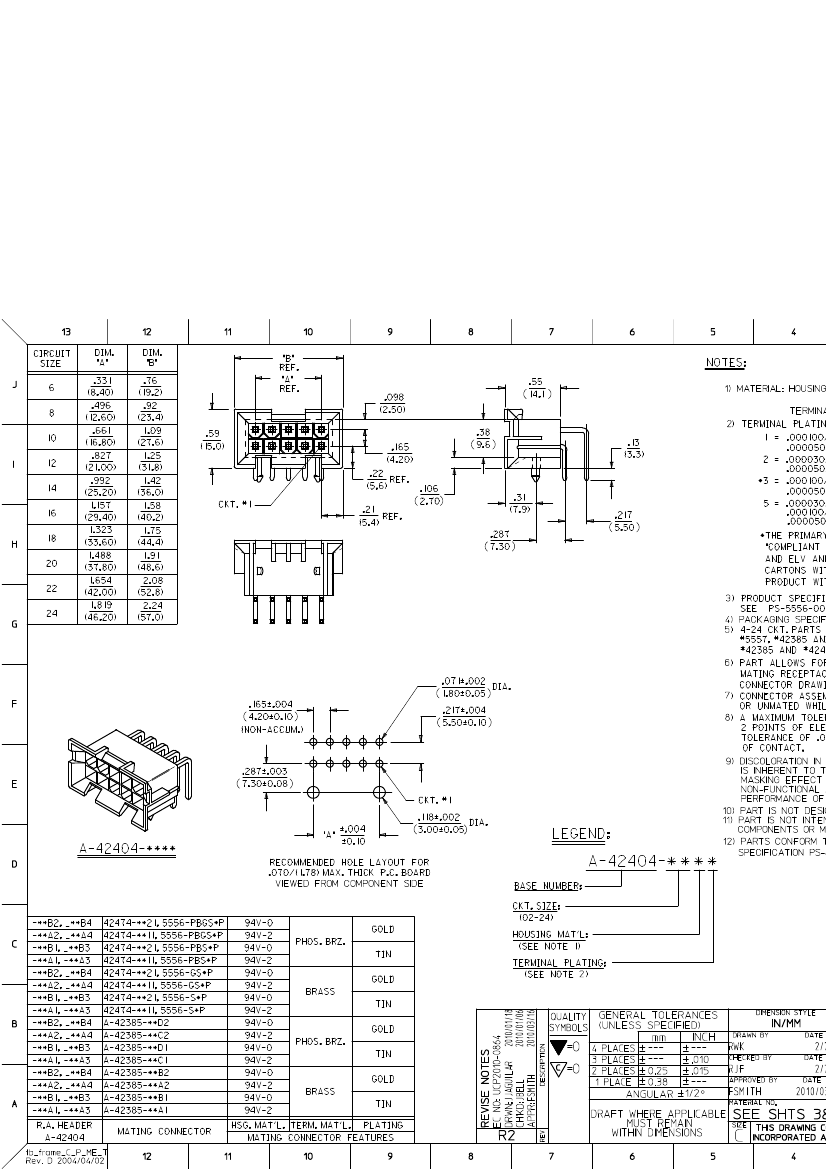

Sales Drawing
Test Summary
PK-42404-002
PS-5556-002
SDA-42404-****
TS-5556-002
This document was generated on 05/11/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
