A-70280-0118 Overview

76 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

This document was generated on 03/29/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Description:
0010897760
Active
2.54mm (.100") Pitch C-Grid® Breakaway Header, Dual Row, Vertical, High
Temperature, 76 Circuits, 0.76µm (30µ") Gold (Au) Selective Plating, Tin (Sn) PC Tail
Plating, 2.72mm (.107") PC Tail
Documents:
3D Model

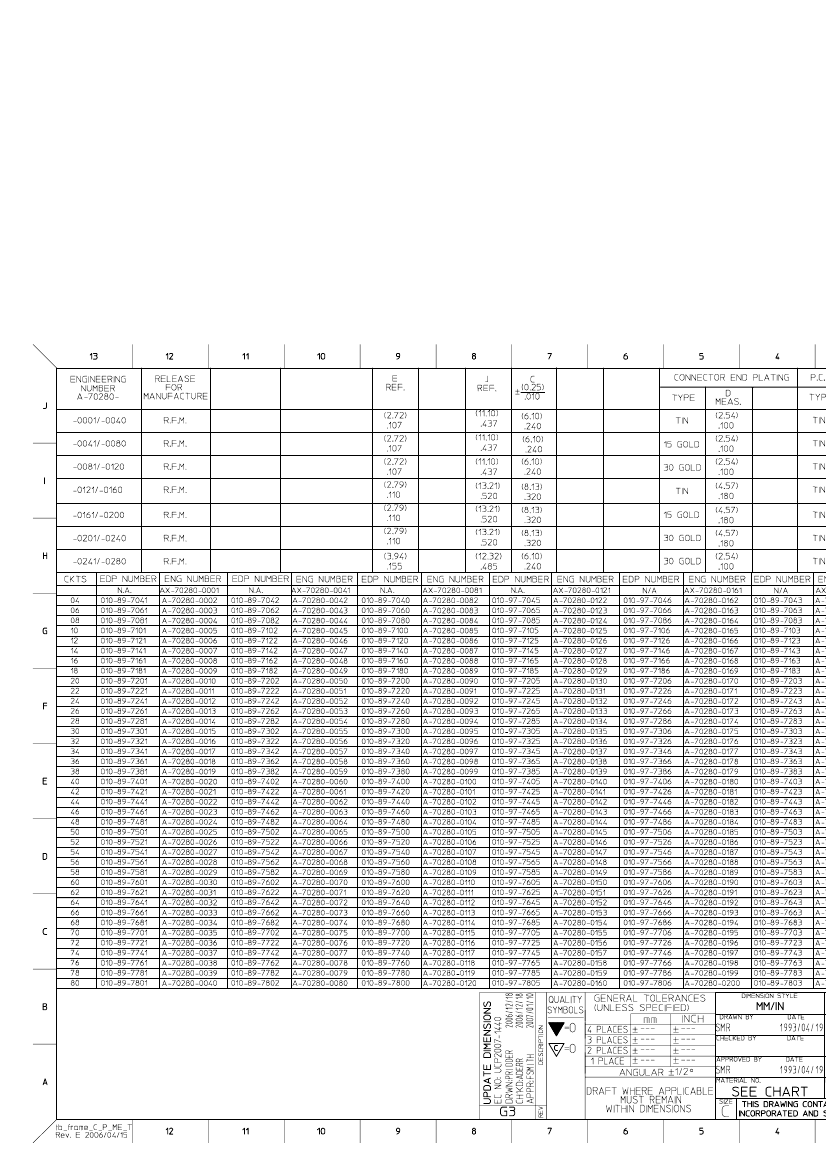

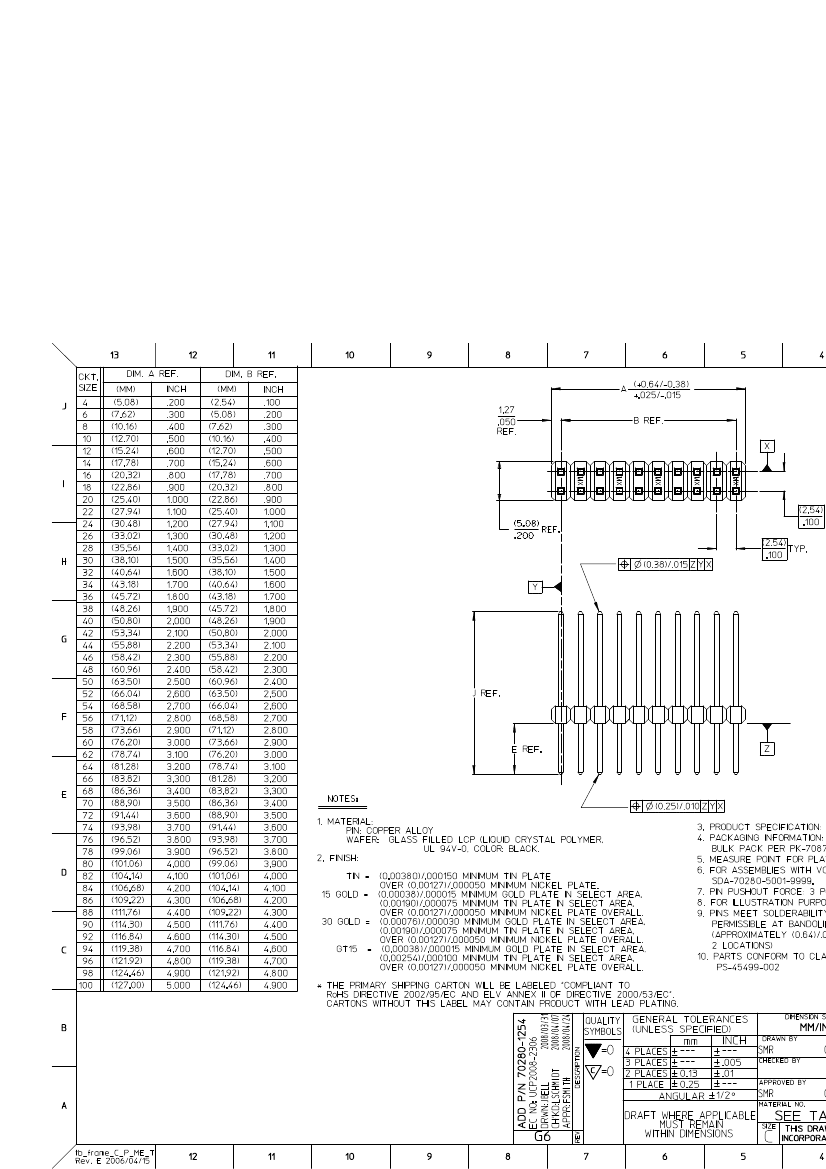

Drawing (PDF)
Product Specification PS-70280 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Product Name
PCB Headers
70280
Board-to-Board, Wire-to-Board
C-Grid®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Yes
76
76
Black
50
No
94V-0
No
No
None
None
Copper Alloy
Gold
Tin
High Temperature Thermoplastic
2
Vertical
0.110 In
2.79 mm
No
None
0.062 In
1.60 mm
Bag
0.100 In
2.54 mm
30
0.75
75
1.875
No
No
No
Yes
-40°C to +105°C
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
70280S
