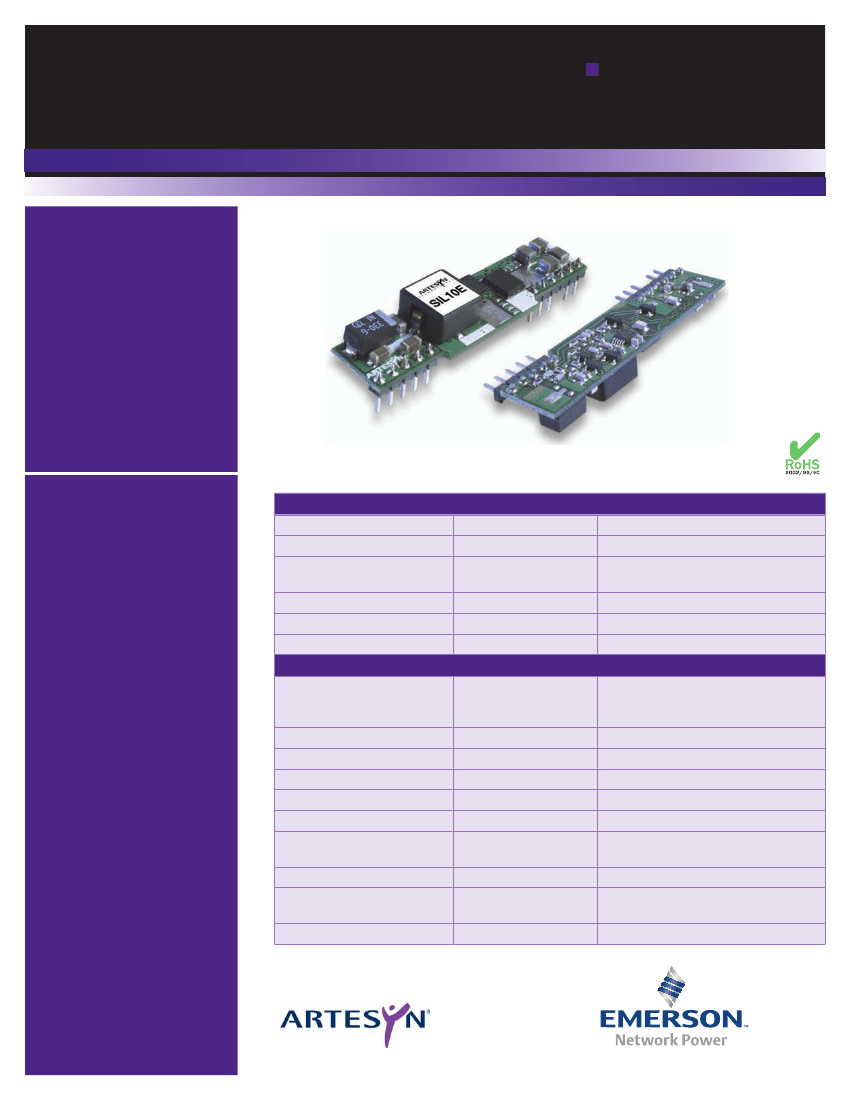

Embedded Power for
Business-Critical Continuity
SIL10E Series
3.0 Vin - 5.5 Vin
Rev.3.4.09_96
SIL10E_05 Series
1 of 4
Total Power:
49.9 Watts
Input Voltage:
3.0-5.5 Vdc
# of Outputs:
Single
Electrical Specifications
Special Features
• 10 A Current rating
• Input voltage range:
3 Vdc to 5.5 Vdc
• Output voltage range:
0.8 Vdc to 3.63 Vdc
• Ultra high efficiency:
96% @ 5 Vin and 3.3 Vout
• Extremely low internal
power dissipation
• Minimal thermal
design concerns
• Designed in reliability:
MTBF of 7,000,000 hours per
Telcordia SR-332
• Ideal solution where board
space is at a premium or
tighter card pitch is required
• Industry standard
footprint and pin out
• Available RoHS compliant
• 2 year warranty
Input
Input voltage range:
Input current:
Input current (max.):
Input reflected ripple:
Remote ON/OFF:
Start-up time:
No load
3.0-5.5 Vdc
70 mA
8 A max. @ lo max.
and Vout = 3.3 V
65 mA rms
(See Note 2)
20 ms
Fixed output versions
5 Vin with wide trim
3.3 Vin with wide trim
±10%
0.8 - 3.63 Vdc
0.8 - 2.75 Vdc
±0.4% typ.
±0.2% typ.
±1.0% typ.
0 A
None
50 mV pk-pk
25 mV rms max.
±0.01%/˚C
50 mV max. deviation
50µs recovery to within ±1.0%
10% Vo compensation
Output
Voltage adjustability:
(See Note 1)
Setpoint accuracy:
Line regulation:
Load regulation:
Minimum load:
Overshoot/Undershoot:
Ripple and noise:
Temperature co-efficient:
Transient response:
Remote sense:
Safety
• UL/cUL CAN/CSA 22.2
No. 60950-1-03/UL 60950-1,
File No. E186249
• TÜV Product Service
(EN60950) Certificate No.
B 08 05 51485 378
• CB report and certificate to
IEC60950, Certificate No.
DE3-51686M1
All specifications are typical at nominal input, full load at 25
°
C unless otherwise stated.
Embedded Power for
Business-Critical Continuity
Rev.3.4.09_96
SIL10E_05 Series
2 of 4
EMC Characteristics
Electrostatic discharge:
Conducted immunity:
Radiated immunity:
EN61000-4-2, IEC801-2
EN61000-4-6
EN61000-4-3
General Specifications
Efficiency:
Insulation voltage:
Switching frequency:
Approvals and standards:
Material flammability:
Dimensions
Pin length:
Weight:
MTBF:
Telcordia SR-332
MIL-HDBK-217F
(L x W x H)
(Vertical)
Fixed
See table
Non-isolated
300 kHz typ.
EN60950
UL/cUL60950
UL94V-0
50.8 x 7.8 x 12.7 mm
2.0 x 0.31 x 0.5 inches
0.135 ± 0.02 in (3.43 ± 0.5 mm)
5 g (0.18 oz)
7,042,000 hours
680,000 hours
Environmental Specifications
Thermal performance:
(See Note 3)
Operating ambient temperature
Non-operating
-40° C to +100 °C
-40 °C to +125 °C
Protection
Short circuit:
Thermal:
Continuous
Automatic recovery
Embedded Power for
Business-Critical Continuity
Ordering Information
All specifications are typical at nominal input, full load at 25
°
C unless otherwise stated.
Rev.3.4.09_96
SIL10E_05 Series
3 of 4
Ordering Information
Output
Power (Max.)
8.8 W
11 W
13.2 W
16.5 W
19.8 W
22 W
27.5 W
36.3 W
36.3 W
Input Voltage
3.0 - 5.5 Vdc
3.0 - 5.5 Vdc
3.0 - 5.5 Vdc
3.0 - 5.5 Vdc
3.0 - 5.5 Vdc
3.0 - 5.5 Vdc
3.0 - 5.5 Vdc
4.5 - 5.5 Vdc
4.5 - 5.5 Vdc
Output Voltage
0.8 V
1 V
1.2 V
1.5 V
1.8 V
2 V
2.5 V
3.3 V
0.8 - 3.63 V
Output Currents
Min
0 A
0 A
0 A
0 A
0 A
0 A
0 A
0 A
0 A
Max
10 A
10 A
10 A
10 A
10 A
10 A
10 A
10 A
10 A
Efficiency
(typ.)
83%
86%
88%
90%
92%
93%
94%
95%
95%
Regulation
Line
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
Load
±1.5%
±1.5%
±1.0%
±1.0%
±1.0%
±1.0%
±1.0%
±1.0%
±1.0%
Model Numbers
(4, 5, 6)
SIL10E-05S0V8-VJ (EOL)
SIL10E-05S1V0-VJ (EOL)
SIL10E-05S1V2-VJ (EOL)
SIL10E-05S1V5-VJ (EOL)
SIL10E-05S1V8-VJ (EOL)
SIL10E-05S2V0-VJ (EOL)
SIL10E-05S2V5-VJ (EOL)
SIL10E-05S3V3-VJ (EOL)
SIL10E-05W3V3-VJ
Part Number System with Options
SIL10E-05S3V3-VJ
Packaging Options
(5)
J = Pb-free RoHS 6/6 compliant
Mounting Options
V = Vertical Mount
H = Horizontal Mount
Output Voltage
2.5 V, 3.3 V, etc
Number of Outputs
S = Single
W = Wide
Product Family
SIL = Single In Line
Rated Output Current
10 = 10 Amps
Performance
E = Enhanced Performance
Input Voltage
05 = 3.0 V to 5.5 V
12 = 10 V to 14 V
Output Voltage Adjustment of the SIL10E-05W3V3J Series
The ultra-wide output voltage trim range offers major advantages to users who
select the SIL10E-05W3V3J. It is no longer necessary to purchase a variety of
modules in order to cover different output voltages. The output voltage can be
trimmed in a range of 0.8 Vdc to 3.63 Vdc. When the SIL10E-05W3V3J converter
leaves the factory the output has been adjusted to the default voltage of 3.3 V.
• When Vin ≥ 4.5 V, then Vout can be adjusted from 0.8 Vdc to 3.6 Vdc
• When Vin < 4.5 V, then Vout can be adjusted from 0.8 Vdc to 2.75 Vdc
Notes
1 When Vin ³ 4.5 V, then Vout can be adjusted from 0.8 V to 3.6 V. When Vin < 4.5 V, then Vout
can be adjusted from 0.8 V to 2.75 V.
2 The SIL10E features a ‘Negative Logic’ Remote ON/OFF operation. If you are not using the
Remote ON/OFF pin, leave the pin open (the converter will be on). The Remote ON/OFF pin is
referenced to ground.
The following conditions apply for the SIL10E:
Configuration
Remote pin open circuit
Remote pin pulled low
Remote pin pulled high [Von/off >1.2 V]
Converter Operation
Unit is ON
Unit is ON
Unit is OFF
Notes Continued
3 Full derating curves available in both the Longform Datasheet and Application
Note 136.
4 For certain applications that use low ESR capacitors on the output of the
convertor and to insure maximum converter stability, please add the suffix ‘02’
to the model, e.g. SIL10E-05S2V5-V02J.
5 TSE RoHS 5/6 (non Pb-free) compliant versions may be available on special
request, please contact your local sales representative for details.
6 NOTICE: Some models do not support all options. Please contact your local
Emerson Network Power representative or use the on-line model number
search tool at http://www.PowerConversion.com to find a suitable alternative.
Embedded Power for
Business-Critical Continuity
Mechanical Drawings
PIN VIEW
2.000 0.020
(50.80 0.50)
SIDE VIEW
PCB
0.500 (12.70)
Americas
Rev.3.4.09_96
SIL10E_05 Series
4 of 4
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 760 930 4600
Facsimile: +1 760 930 0698
Europe (UK)
0.025 0.001
(0.64 0.02)
6
5
J2
3
2
1
5
4 3
J1
2
1
0.316 0.008
(8.03 0.20)
0.170 (4.32)
0.100 (2.54)
1.900 (48.26)
0.050 (1.27)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
Asia (HK)
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
2 Place 0.15
3 Place 0.006
Figure 1: Horizontal Mount Version
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
Telephone: +852 2176 3333
Facsimile: +852 2176 3888
For global contact, visit:
www.PowerConversion.com
SIDE VIEW
0.307 0.008
(7.80 0.20)
PCB
FRONT VIEW
2.000 0.020
(50.80 0.50)
techsupport.embeddedpower
@emerson.com
0.500 (12.70)
While every precaution has been taken to ensure
accuracy and completeness in this literature, Emerson
Network Power assumes no responsibility, and disclaims
all liability for damages resulting from use of this
information or for any errors or omissions.
0.135 (3.43)
0.635 (16.13)
1
2
3
J1
4
5
1
0.025 0.001
(0.64 0.02)
2
3
J2
5
6
Emerson Network Power.
The global leader in enabling
business-critical continuity.
AC Power
Connectivity
DC Power
0.168 (4.26)
0.100 (2.54)
0.050 (1.27)
1.900 (48.26)
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
2 Place 0.15
3 Place 0.006
Embedded Computing
Embedded Power
Monitoring
Outside Plant
Power Switching & Controls
Precision Cooling
Racks & Integrated Cabinets
Services
Surge Protection
EmersonNetworkPower.com
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
©2008 Emerson Electric Co.
Figure 2: Vertical Mount Version
Input Pin Connections
J1
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
+Vout
+Vout
Remote Sense (+)
+Vout
Ground
Input Pin Connections
J2
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Ground
+Vin
+Vin
No Pin
Trim
Remote ON/OFF
