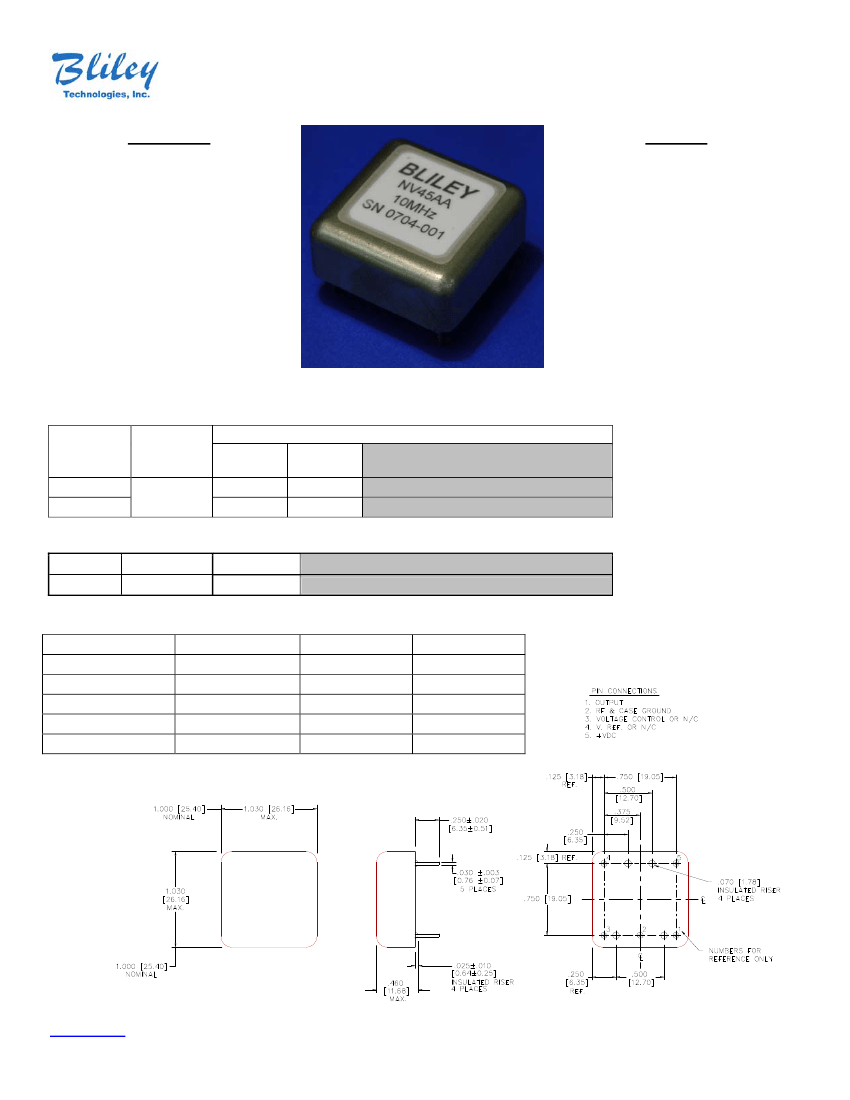

Low Profile. OCXO NV45AA
Description:
Description
The NV45AAOvenized Crystal
Oscillator Series offers high
stability performance in a low
profile package (0.46 inches
max.) for base station, test
equipment, synthesizers, and
digital switching applications.
•
•
•
•
•
Features:
Available in frequencies from 5 MHz
to20MHz with
CMOS and Sinewave output available
RoHS-6/Leadfree compliant available
5V, 12V and 15V available
Phase Noise Options
Frequency Versus Temperature
Operating Frequency Frequency Frequency
Temperature
Range
Stability.
Stability
+/-5 ppb +/-30 ppb
-20 to 75
°C
5MHz to
20MHz
+/- 30 ppb +/- 50 ppb
-40 to 85
°C
C1 and C2 for –20 to 70C
D1 and D2 for –40 to 85C
C1( +/- 5ppb ),C2( +/-30ppb )
D1( +/-30ppb ),D2( +/-50ppb )
Aging
Frequency Timeframe
All
First Year
Aging
+/- 100 ppb
Product Code
N/A
Phase Noise
1 Hz
10 Hz
100 Hz
1 KHz
10KHz
100KHz
Option A
-80 dBc/Hz
-115 dBc/Hz
-145 dBc/Hz
-150 dBc/Hz
-155 dBc/Hz
-155 dBc/Hz
Option B
-90 dBc/Hz
-120 dBc/Hz
-150 dBc/Hz
-155 dBc/Hz
-160 dBc/Hz
-160 dBc/Hz
Option C
-95 dBc/Hz
-125 dBc/Hz
-155 dBc/Hz
-160 dBc/Hz
-165 dBc/Hz
-165 dBc/Hz
Option B and C not available with squarewave out
Option C not available with +5VDC supply voltage
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 1 of 2
Tel
(814) 838-3571
Low Profile. OCXO NV45AA
Supply Voltage & Power Consumption:
5V +/- 5% ( Code A )
12V +/- 5% (Code B ) 15V +/- 5% (Code C )
2.5W turn on power
2.5W
2.5W
1.2W steady state power 1.2W
1.2W
Output Waveform:
CMOS
Waveform Description
CMOS Output Levels (15pf load)
Rise / Fall Time
Duty Cycle
Phase Noise Option A
"0" < 0.5V; "1" > 4.5V
<10ns (10% to 90%)
45% to 55% @ 50% Logic 1
Sinewave
Waveform
Phase Noise
Description Option B or C
Output
Power
8 dBm typ.
harmonics
-25dBc
spurious
-75 dBc
Pulling Range:
Tuning Range ( 0V to 4V on
Vcontrol )
Product Code
None
A
+/-0.5 ppm
min
B
+/- 1.0 ppm
min
C
Other VC ranges are available on request
Environmental:
Storage Temperature
-55 to 125
°C
Ordering Options:
Type, Package
style Leaded/RoHS
NV45AA Leaded
NVG45AA Rohs6
Compliant
Supply
Voltage
5V ( A )
12V ( B )
15V ( C )
Temp.
Range
C or D
C or D
C or D
Temp.
Stability
C1 to D2
C1 to D2
C1 to D2
Pulling
Range
A,B, or C
A,B, or C
A,B, or C
Phase Noise Freq.
A or B or C
A or B or C
A or B or C
xx.xxxxMhz
xx.xxxxMhz
xx.xxxxMhz
NV45AA
Part Number Build Example:
B
C
C1
B
C
10.0000MHz
This part is RoHS compliant, 12V supply, -20C to 70C, +/- 5ppb frequency vs. temperature stability referenced
to 25C,
+/- 0.5ppm pull, Sinewave, best phase noise (Option C ) at 10.0000MHz operating frequency
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 2 of 2
Tel
