UPD4265400G7-A50 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> UPD4265400G7-A50

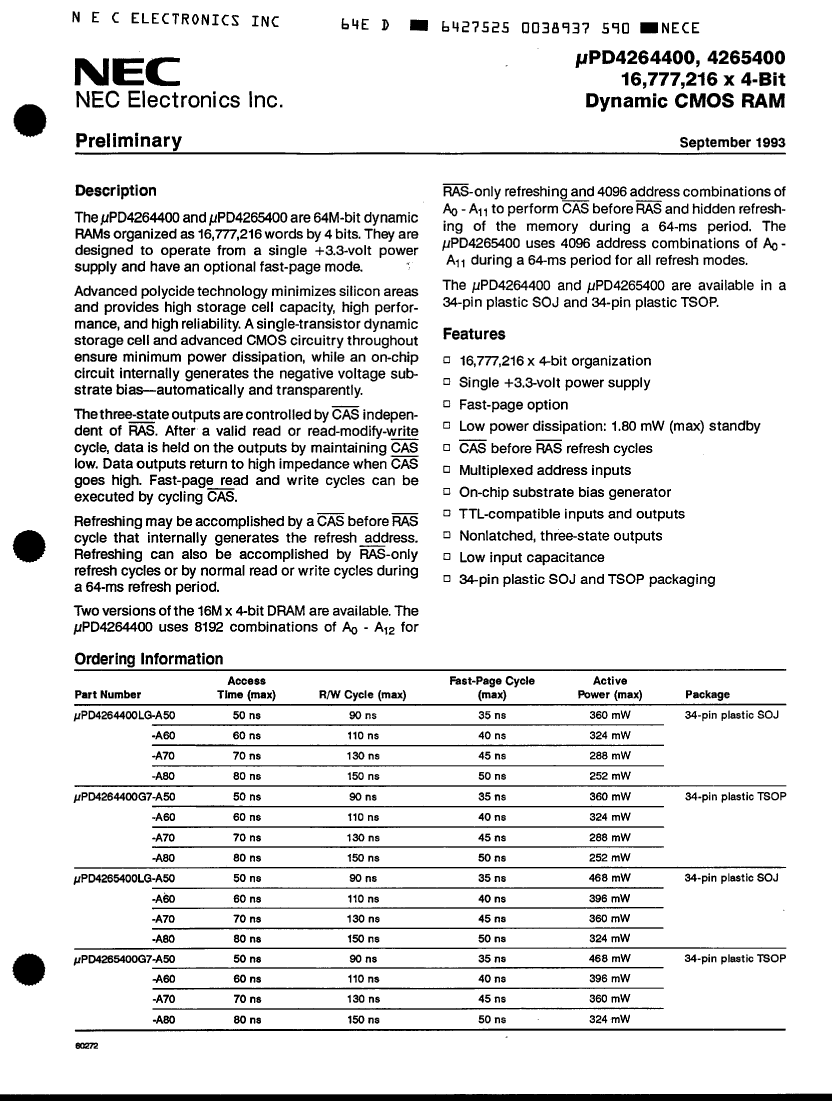

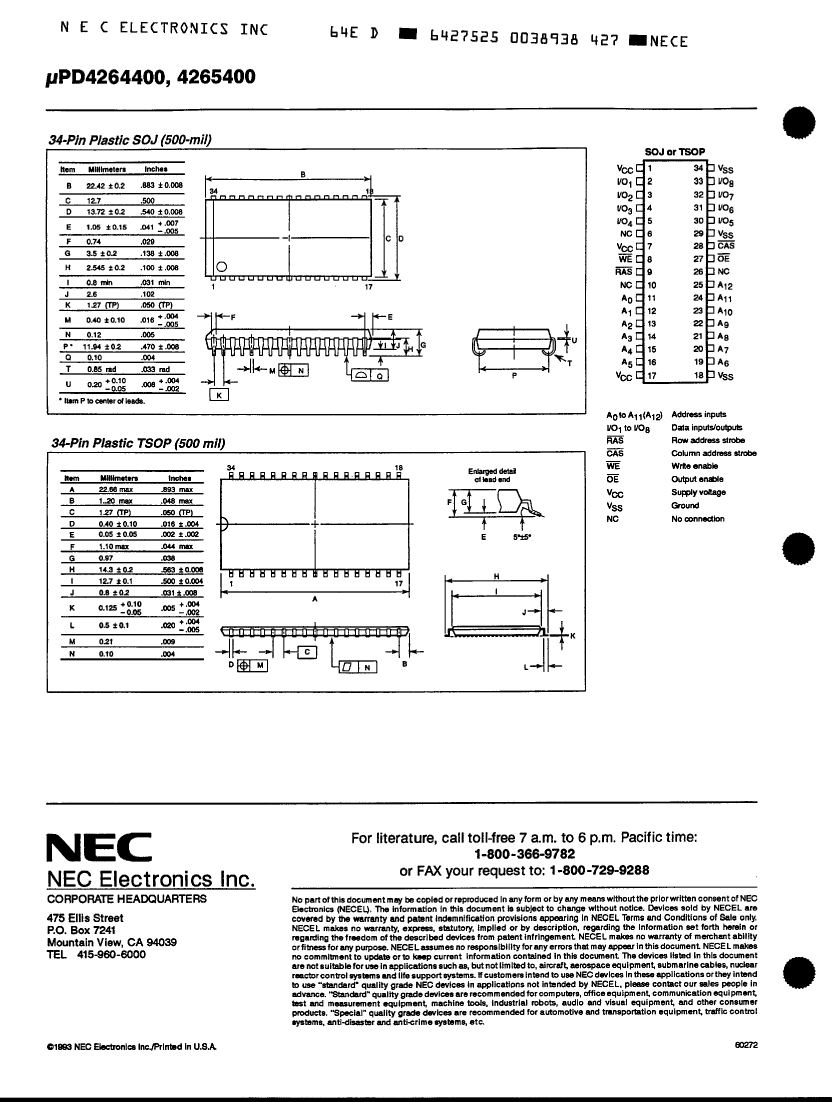

Preview

UPD4265400G7-A50: DescriptionIC,DRAM,FAST PAGE,16MX4,CMOS,TSOP,34PIN,PLASTIC; Categorystorage storage; File Size202KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

UPD4265400G7-A50 Overview

IC,DRAM,FAST PAGE,16MX4,CMOS,TSOP,34PIN,PLASTIC

UPD4265400G7-A50 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	TSOP, TSOP34,.56
Reach Compliance Code	unknown
Maximum access time	50 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G34
JESD-609 code	e0
memory density	67108864 bit
Memory IC Type	FAST PAGE DRAM
memory width	4
Number of terminals	34
word count	16777216 words
character code	16000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16MX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Encapsulate equivalent code	TSOP34,.56
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
self refresh	NO
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

UPD4265400G7-A50 Related Products

	UPD4265400G7-A50	UPD4264400LG-A50	UPD4264400LG-A80	UPD4265400G7-A80	UPD4265400LG-A50	UPD4265400LG-A70
Description	IC,DRAM,FAST PAGE,16MX4,CMOS,TSOP,34PIN,PLASTIC	IC,DRAM,FAST PAGE,16MX4,CMOS,SOJ,34PIN,PLASTIC	IC,DRAM,FAST PAGE,16MX4,CMOS,SOJ,34PIN,PLASTIC	IC,DRAM,FAST PAGE,16MX4,CMOS,TSOP,34PIN,PLASTIC	IC,DRAM,FAST PAGE,16MX4,CMOS,SOJ,34PIN,PLASTIC	IC,DRAM,FAST PAGE,16MX4,CMOS,SOJ,34PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	TSOP, TSOP34,.56	SOJ, SOJ34,.54	SOJ, SOJ34,.54	TSOP, TSOP34,.56	SOJ, SOJ34,.54	SOJ, SOJ34,.54
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	50 ns	50 ns	80 ns	80 ns	50 ns	70 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G34	R-PDSO-J34	R-PDSO-J34	R-PDSO-G34	R-PDSO-J34	R-PDSO-J34
JESD-609 code	e0	e0	e0	e0	e0	e0
memory density	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit	67108864 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	4	4	4	4	4	4
Number of terminals	34	34	34	34	34	34
word count	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words
character code	16000000	16000000	16000000	16000000	16000000	16000000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	16MX4	16MX4	16MX4	16MX4	16MX4	16MX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP	SOJ	SOJ	TSOP	SOJ	SOJ
Encapsulate equivalent code	TSOP34,.56	SOJ34,.54	SOJ34,.54	TSOP34,.56	SOJ34,.54	SOJ34,.54
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	8192	8192	4096	4096	4096
self refresh	NO	NO	NO	NO	NO	NO
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	J BEND	J BEND	GULL WING	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Renesas Electronics Corporation	-	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
