FSM11J: DescriptionKEYPAD SWITCH; CategoryMechanical and electronic products switch; File Size34KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

FSM11J Overview

KEYPAD SWITCH

FSM11J Parametric

Parameter Name	Attribute value
Brand Name	Alcoswitch
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
body width	5.99 mm
body height	3.6 mm
Body length or diameter	5.99 mm
Circuit configuration	1X1
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	100000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	FSMJ
Installation features	THROUGH HOLE-STRAIGHT
Number of switches	1
Maximum operating force	2.06 N
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Terminal surface	Silver (Ag)
Termination type	SOLDER

Preview

Download Datasheet

View All

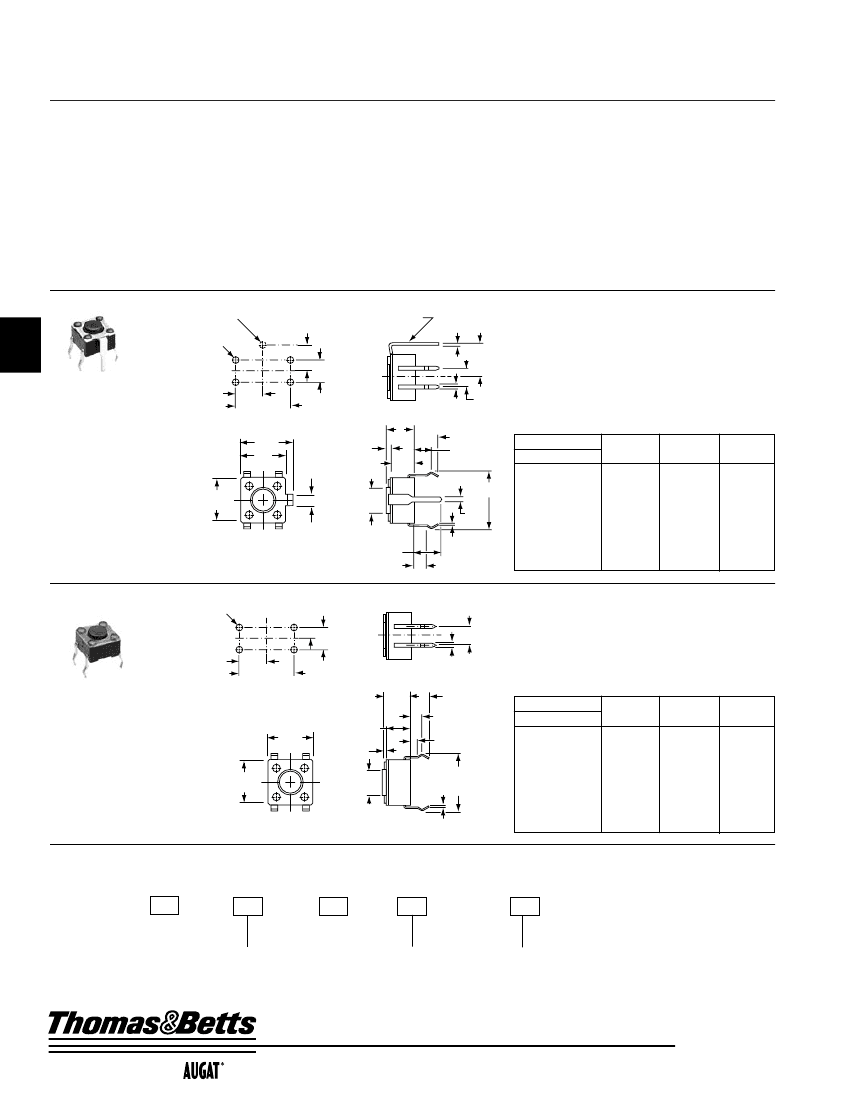

FSMJ Series

MATERIAL SPECIFICATIONS:

Micro Miniature Vertical Pushbuttons

with Tactile Feel & ESD Grounding Terminal

TYPICAL PERFORMANCE CHARACTERISTICS:

Contact Rating ........................50 mA @ 12 VDC

Initial Contact Resistance........100 Milliohms max.

Insulation Resistance ..............100 Megohms min. @ 100 VDC

Dielectric Strength ..................250 VAC

Actuation Force ......................160 Grams AVG (STD.)

Actuator Travel ........................ .012" (0,3)

Electrostatic Discharge

w/ESD Ground Terminal ........5Kv w/no discharge

Life Expectancy ......................100,000 Cycles

Contacts ..................................Copper alloy, silver plate

Case..........................................Polyamide

Actuator Button ......................Polyacetal Resin

Frame ......................................Copper alloy, tin plate

Terminals ................................Copper alloy, silver plate

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature............-4°F to +158°F (-20°C to + 70°C)

Storage Temperature................-22°F to +176°F (-30°C to +80°C)

Solder Heat Resistance............See Page M6

THIS HOLE FOR

GROUNDING TERMINAL

D

FSM1J

WITH

ESD

TERMINAL

.039

±

.002 DIA

(1.00

±

0.05) TYP.

.161

±

.004

(4.10

±

0.10)

ESD GROUNDING

TERMINAL

.012

(0.30)

6 x 6 mm

.161

(4.08)

.177

±

.004

(4.50

±

0.10)

.128

±

.006

(3.25

±

0.15)

.256

±

.012

(6.50

±

0.30)

“

B

”

.285

(7.23)

.236

(5.99)

“

A

”

.142

(3.60)

.138

(3.50)

.177

.028 (4.49)

(0.71)

.071

(1.80)

Part Number

W/ESD Terminal

FSM 1J

FSM 3J

FSM 5J

FSM 7J

FSM 9J

FSM 11J

FSM 13J

FSM 15J

FSM 17J

Dim.

A

.028" (0,70)

.055" (1,40

.134" (3,40)

.232" (5,90)

.146" (3,70)

.173" (4,40)

.370" (9,40)

.527" (13,40)

.193" (4,90)

Dim

B

.169" (4,30)

.196" (5,00)

.276" (7,00)

.374" (9,50)

.287" (7,30)

.315" (8,00)

.512" (13,00)

.669" (17,00)

.335" (8,51)

Button

Color

Black

Blue

Black

Ivory

White

Black

.236

(5.99)

.059

(1.49)

.138

(3.50)

.311

(7.90)

.028

(0.71)

.012

(0.30)

.027

(0.68)

.142

(3.60)

.039

±

.002 DIA

(1.00

±

0.05) TYP.

.177

±

.004

(4.50

±

0.10)

.128

±

.006

(3.25

±

0.15)

.256

±

.012

(6.50

±

0.30)

“

B

”

.142

(3.60)

“

A

”

.028

(0.71)

.138

(3.50)

.071

(1.80)

.027

(0.68)

.311

(7.90)

TYP.

.177

(4.49)

6 x 6 mm

FSM2J

WITHOUT

ESD

TERMINAL

Part Number

W/O ESD Terminal

FSM 2J

FSM 4J

FSM 6J

FSM 8J

FSM 10J

FSM 12J

FSM 14J

FSM 16J

FSM 18J

Dim.

A

.028" (0,70)

.055" (1,40

.134" (3,40)

.232" (5,90)

.146" (3,70)

.173" (4,40)

.370" (9,40)

.527" (13,40)

.193" (4,90)

Dim

B

.169" (4,30)

.196" (5,00)

.276" (7,00)

.374" (9,50)

.287" (7,30)

.315" (8,00)

.512" (13,00)

.669" (17,00)

.335" (8,51)

Button

Color

Black

Blue

Black

Ivory

White

Black

.236

(5.99)

.236

(5.99)

.138

(3.50)

.012

(0.30)

Model

FSM

Actuator

Length

J

Temp.

Actuator

Force

PART NUMBERING SEQUENCE

SEE ABOVE

BLANK= STD.

H= High TEMP.

ACTUATOR OPT.

1-8 ONLY

BLANK= 160g STD.

A = 260 g

AA = 520 g

L = 100 g

Thomas & Betts

8155 T&B Blvd.

Memphis, TN 38125

(901) 252-5000 FAX (901) 252-1380

Quality & Innovation From

Name Brand Products

D4
