5239-06 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5239-06

5239-06: Description6 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP; CategoryThe connector The connector; File Size90KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

5239-06 Overview

6 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, CRIMP

5239-06 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.25 inch
subject depth	0.625 inch
body length	0.957 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.0016 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.156 inch
Plug information	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	6
UL Flammability Code	94V-2
Evacuation force-minimum value	.0834 N

Preview

Download Datasheet

View All

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0009524064

Active

3.96mm (.156") Pitch KK® Crimp Housing, Female, Friction Ramp, 6 Circuits

Documents:

3D Model

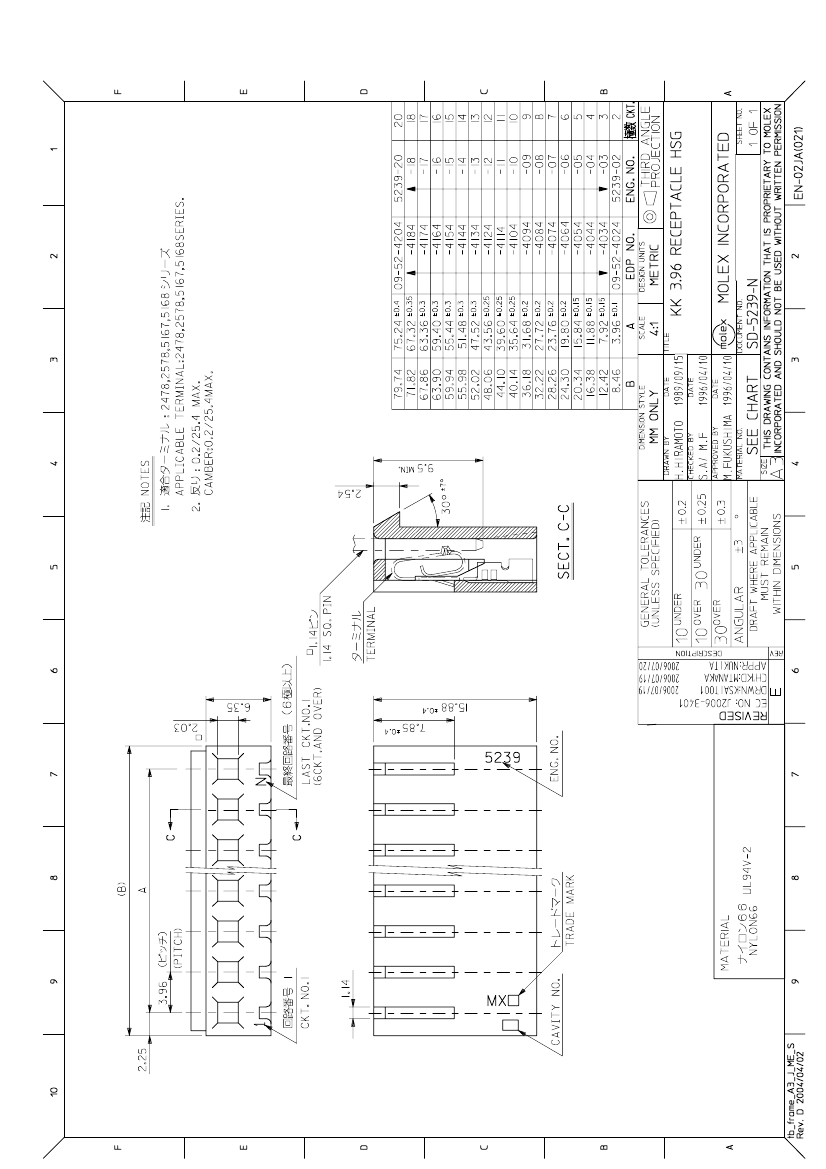

Drawing (PDF)

Product Specification PS-5239-002 (PDF)

Product Specification PS-5239-003 (PDF)

Product Specification PS-5239-004 (PDF)

Product Specification PS-5239-005 (PDF)

Product Specification PS-5239-006 (PDF)

Product Specification PS-5239-007 (PDF)

Product Specification PS-5239-010 (PDF)

Product Specification PS-5239-011 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

TUV

LR19980

R72090224

E29179

General

Product Family

Series

Overview

Product Name

Crimp Housings

5239

KK®

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Revi

Need mo

environm

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Natural

94V-2

Female

Yes

Nylon

Bag

0.156 In

3.96 mm

Yes

-40°C to +105°C

Email pro

For a mu

Complian

Please vi

non-prod

5239Se

Mates

Right A

Vertica

Material Info

Old Part Number

5239-06

Reference - Drawing Numbers

Product Specification

PS-5239-002, PS-5239-003, PS-5239-004,

PS-5239-005, PS-5239-006, PS-5239-007,

PS-5239-010, PS-5239-011, RPS-5239-001

SD-5239-N

Use W

5168 C

AWG, 5

18-24 A

Crimp T

Sales Drawing

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
