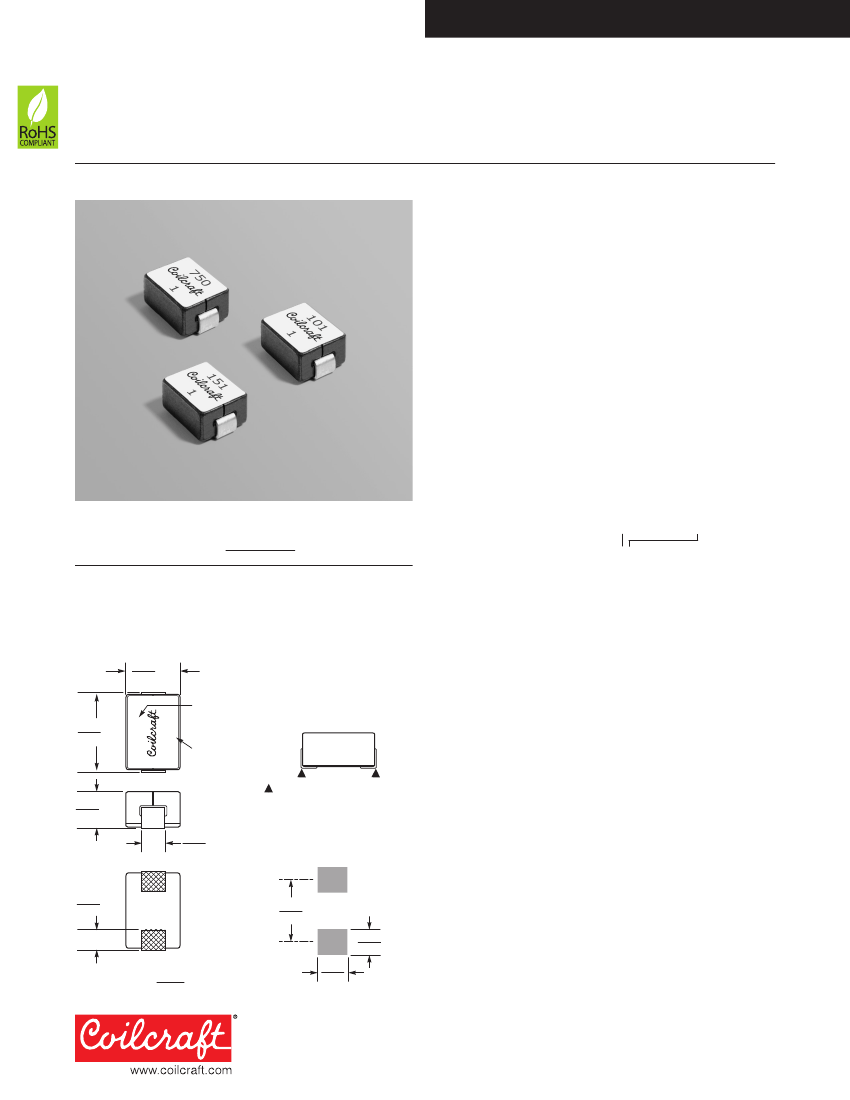

Shielded Power Inductors – SLC1049
• Designed foruse in multi-phase VRM/VRD regulators and high
current/high frequency DC/DC converters.
• Requires only 70 mm
2
of board space; can handle up to 61 A.
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant matte tin over nickel over copper.
Other terminations available at additional cost.
Weight
1.25 – 1.30 g
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
250/7″ reel; 1000/13″ reel Plastic tape: 24 mm wide,
0.35 mm thick, 12 mm pocket spacing, 5.08 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other
solvents, see Doc787_PCB_Washing.pdf.
Part number
1
SLC1049-750ML_
SLC1049-101ML_
SLC1049-121ML_
SLC1049-151ML_
SLC1049-231ML_
0.271
max
6,88
L
±20%
2
(µH)
0.075
0.100
0.125
0.150
0.230
DCR
(mOhms)
3
typ
max
0.230
0.230
0.230
0.230
0.230
0.246
0.246
0.246
0.246
0.246
SRF
typ
4
Isat
5
Irms
6
(MHz) (A)
(A)
200
145
140
133
70
61.0
50.0
37.0
30.0
25.5
43.0
43.0
43.0
43.0
43.0
1. When ordering, please specify
termination
and
packaging
codes:
SLC1049-151MLC
Termination: L
= RoHS compliant matte tin over nickel over copper.
Special order: T
= RoHS tin-silver-copper
(95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (250 per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (1000 per full reel). Factory order only, not
stocked.
2. Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4263B
LCR meter or equivalent.
3. DCR is measured on a micro-ohmmeter at points indicated in the
dimensional diagram.
4. SRF measured with coils connected in series using an Agilent/HP
8753ES network analyzer or equivalent.
5. DC current at which the inductance drops 20% (typ) from its value
without current.
6. Current that causes a 40°C temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Dash number
0.401 max
10,20
XXX
X
Internal code
Points used for measuring DCR
0.203 max
5,16
0.118
3,00
Recommended
Land Pattern
0.100
min
2,54
0.311
7,90
0.130
3,30
inches
Dimensions are in
mm
0.148
3,76
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 498-1
Revised 05/31/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 498-2

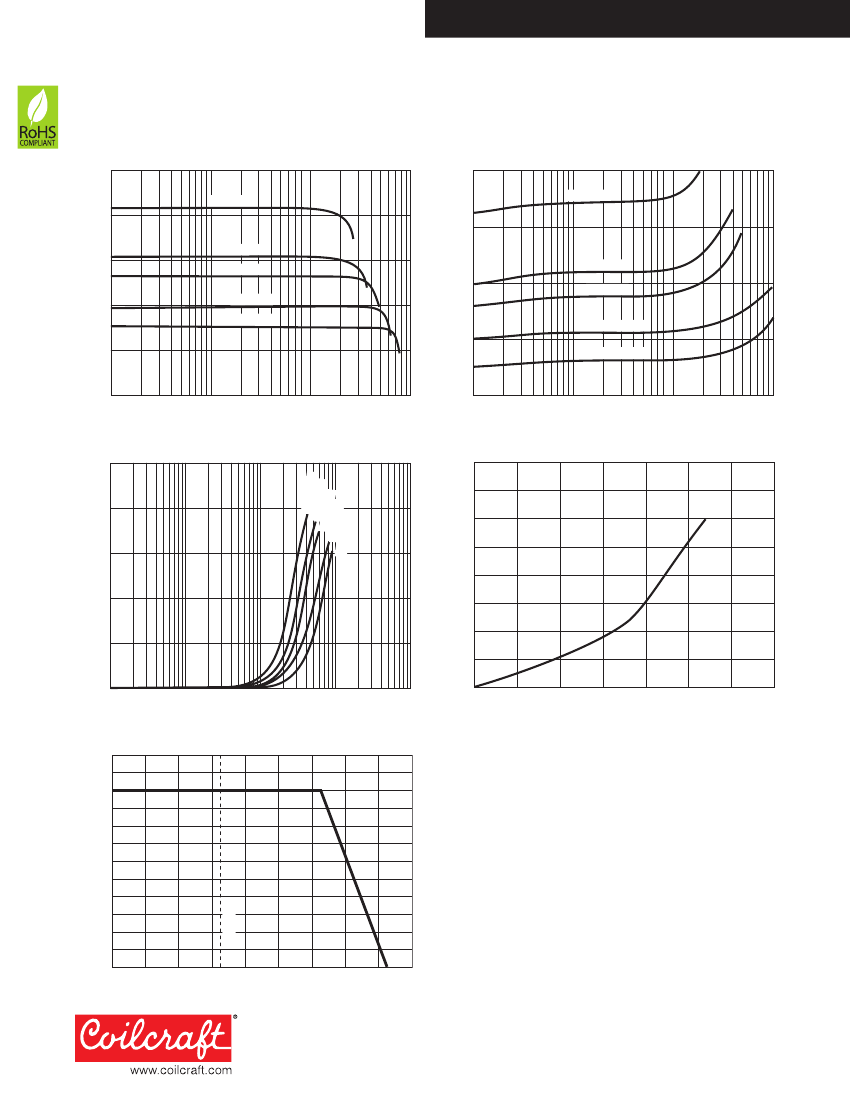

Shielded Power Inductors - SLC1049 Series
L vs Current
0.25
0.230 µH
0.20
0.20
0.150 µH
0.15
0.125 µH
0.100 µH
0.075 µH
0.05
L vs Frequency
0.25
0.230 µH
Inductance (µH)
Inductance (µH)
0.150 µH
0.15
0.125 µH
0.10
0.100 µH
0.10
0.075 µH
0
0.1
1
10
100
0.05
0.1
1
10
100
Current (A)
Frequency (MHz)
ESR vs Frequency
Equivalent Series Resistance (Ohms)
50
0.230 µ
0.150 µHH
0.125
0.100 µHµH
0.075 µH
Typical Temperature Rise vs Current
80
40
Temperature rise (from 25°C)
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
30
20
10
0
0.1
1
10
100
1000
Frequency (MHz)
Current (A rms)
Irms Derating
120
110
Percent of rated current
100
90
80
70
60
50
40
20
10
0
-40
-20
0
20
25°C
40
30
60
80
100
120 140
Ambient temperature (°C)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 498-2
Revised 05/31/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
