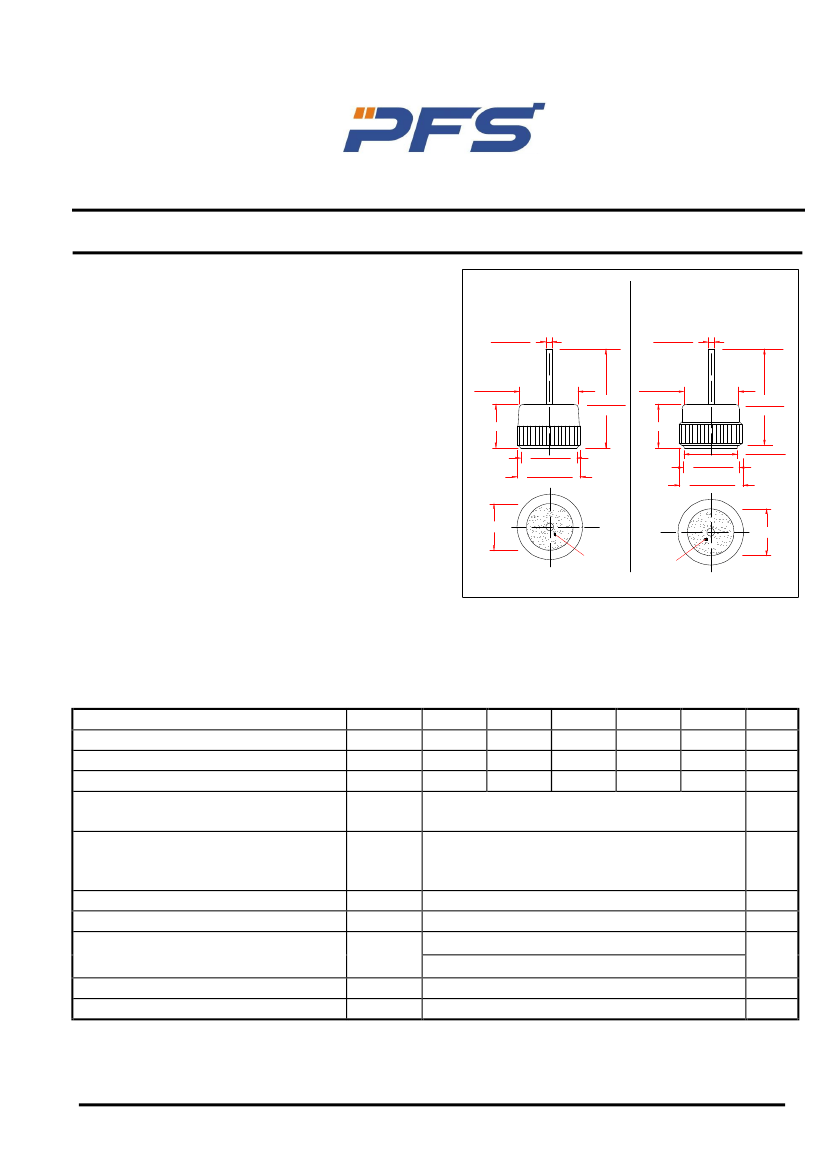

PRESS FIT AUTOMOTIVE RECTIFIER
（
PRBG351 THRU PRBG356
TECHNICAL SPECIFICATION：
FEATURES
•
•
•
•
•
BC-3
VOLTAGE RANGE
CURRENT
100 to 600 Volts
35.0 Amperes
BC-1
Lead Positive
0.049± 0.002
(Φ1.25±0.50)
Lead Negative
0.049± 0.002
(Φ1.25±0.50)
Low Leakage
Low forward voltage drop
High current capability
High forward surge current capacity
Glass passivated chip
Φ12.30±0.15
1.22± 0.02
(31.00± 0.50)
Φ8.30±0.15
ΦMAX11.80
1.22± 0.02
(31.00± 0.50)
Φ8.30±0.15
0.42± 0.008
(Φ10.60±0.20)
MECHANICAL DATA
•
•
•
•
•
•
0.44± 0.02
(Φ11.2±0.50)
0.50-0.505
(Φ12.78-12.82)
Technology: Cell with Vacuum soldered
Case: Copper case
Polarity: As marked of case bottom
Lead: Plated lead , solderable per MIL-STD-202E
method 208C
Mounting: Press Fit
Weight: 0.28 ounces, 7.86 grams
0.44± 0.02
(Φ11.2±0.50)
0.50-0.505
(Φ12.78-12.82)
Φ9.50±0.20
Φ9.50±0.20
Epoxy
Epoxy
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
•
•
•
Ratings at 25℃ ambient temperature unless otherwise specified
Single Phase, half wave, 60HZ, resistive or inductive load
For capacitive load derate current by 20%
SYMBOLS
PRBG351
100
70
100
PRBG352
200
140
200
PRBG353
300
210
300
35
PRBG354
400
280
400
PRBG356
600
420
600
UNIT
Volts
Volts
Volts
Amps
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current,
At Tc=105℃
Peak Forward Surge Current
3.3mS single half sine wave superimposed on
Rated load (JEDEC method)
Rating for fusing (t＜8.3ms)
Maximum instantaneous Forward Voltage at 100A
Maximum DC Reverse Current at Rated TA=25℃
DC Blocking Voltage
Typical Thermal Resistance
Operating and Storage Temperature Range
TA=100℃
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
I
2
t
V
F
I
R
R
θJC
T
J
,T
STG
500
1038
1.08
5.0
450
0.8
(-65 to +175)
Amps
A
2
S
Volts
UA
℃/W
℃
Notes:
1.
Enough heatsink must be considered in application.
Web Site:
WWW.PS-PFS.COM
PRESS FIT AUTOMOTIVE RECTIFIER
（
PRBG351 THRU PRBG356
VOLTAGE RANGE
CURRENT
100 to 600 Volts
35.0 Amperes

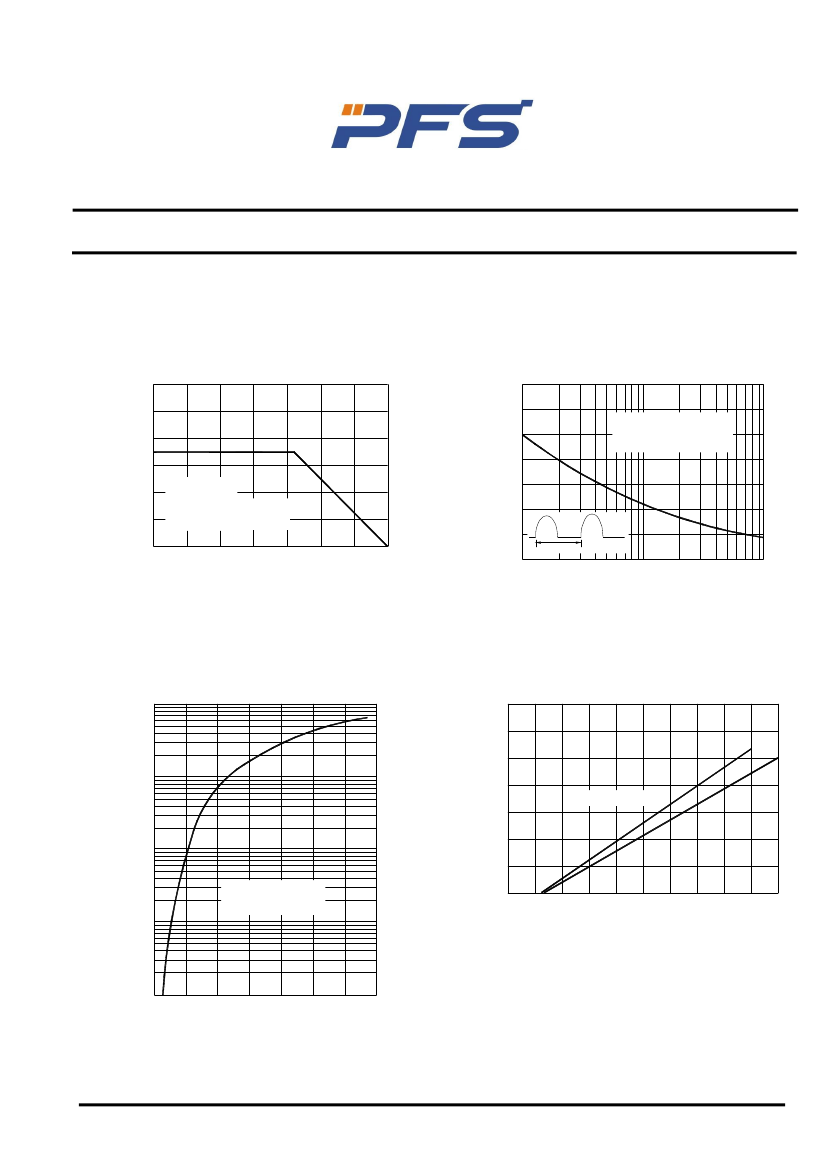

RATINGS AND CHARACTERISTIC CURVES PRBG351 THRU PRBG356
F1G.1 TYPICAL FORWARD CURRENT
DERATING GURVE
AVERAGE FORWARD CURRENT,
(A)
F1G.2 MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE
CURRENT,(A)
600
8.3ms Single Half Sine-Wave
500
400
300
200
100
(JEDEC Method) Tj=Tj max
40
30
20
10
0
0
25
50
75
Single Phase
Half Wave 60Hz
Resistive or Inductive Load
0.375″(9.5mm) Lead Length
110
100
1 Cycle
125
150
175
1
2
4
6
8 10
20
40
60 80 100
AMBIENT TEMPERATURE, (
℃
)
NUMBER OF CYCLES AT 60 Hz
F1G.3 TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
1000
F1G.4 FORWARD ROWER DISSIPATION
AVERAGE POWER DISSIPATION
(W)
60
INSTANTANEOUS FORWARD CURRENT,
(A)
100
40
SQUARE WAVE
DC
20
10
T1=25℃
PULSE WIDTH=300μS
1%DUTY CYCLE
1.0
0
0
10
20
30
40
50
AVERAGE FORWARD CURRENT, (A)
0.1
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
INSTANTANEOUS FORWARD VOLTAGE,(V)
Web Site:
WWW.PS-PFS.COM
