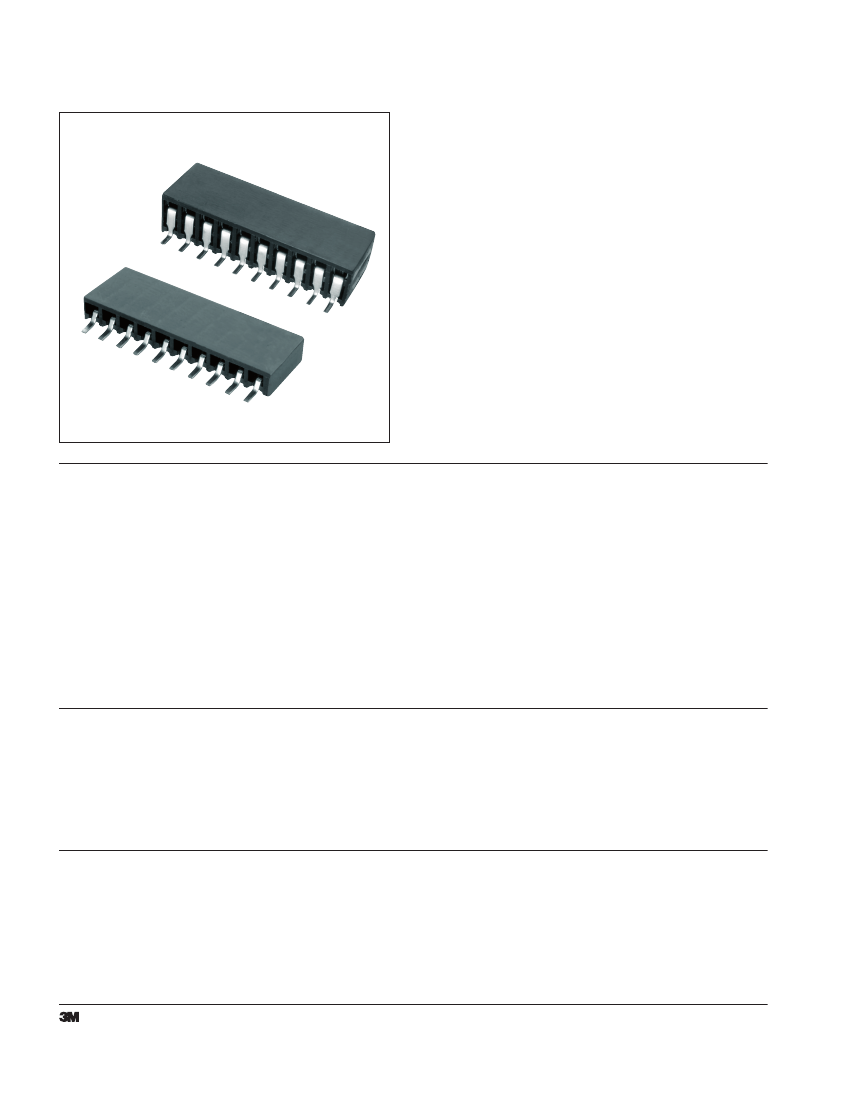

2.54 mm and 2.54 mm x 2.54 mm, Side Entry, Surface Mount
960 Series
•
High temperature dielectric
•
“No lead” reflow solder compatible
•
Single- and dual row design, 4–30 pins or 8–60 pins
•
Mates with pin-strip header products
•
RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the “RoHS compliance” section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
Date Modified: November 19, 2012
TS-2189-D
Sheet 1 of 2
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplating:
Wiping Area:
Solder Tail Area:
High Temperature Thermoplastic
UL 94V-0
Black
Copper Alloy
1.25–2.5 µm [50–100 µ"] Nickel
Flash Gold
1–3 µm [40–118 µ"] Matte Tin
Electrical
Current Rating:
2 A
Insulation Resistance:
> 5 x 10
8
Ohm at 100 V
DC
Withstanding Voltage:
1000 V
DC
Environmental
Temperature Range:
-25 °C to +105 °C
Processing Temperature:
max. 260 °C (Profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
Interconnect Solutions
www.3Mconnectors.com
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
3M
™
Boardmount Socket
2.54 mm and 2.54 mm x 2.54 mm, Side Entry, Surface Mount
960 Series

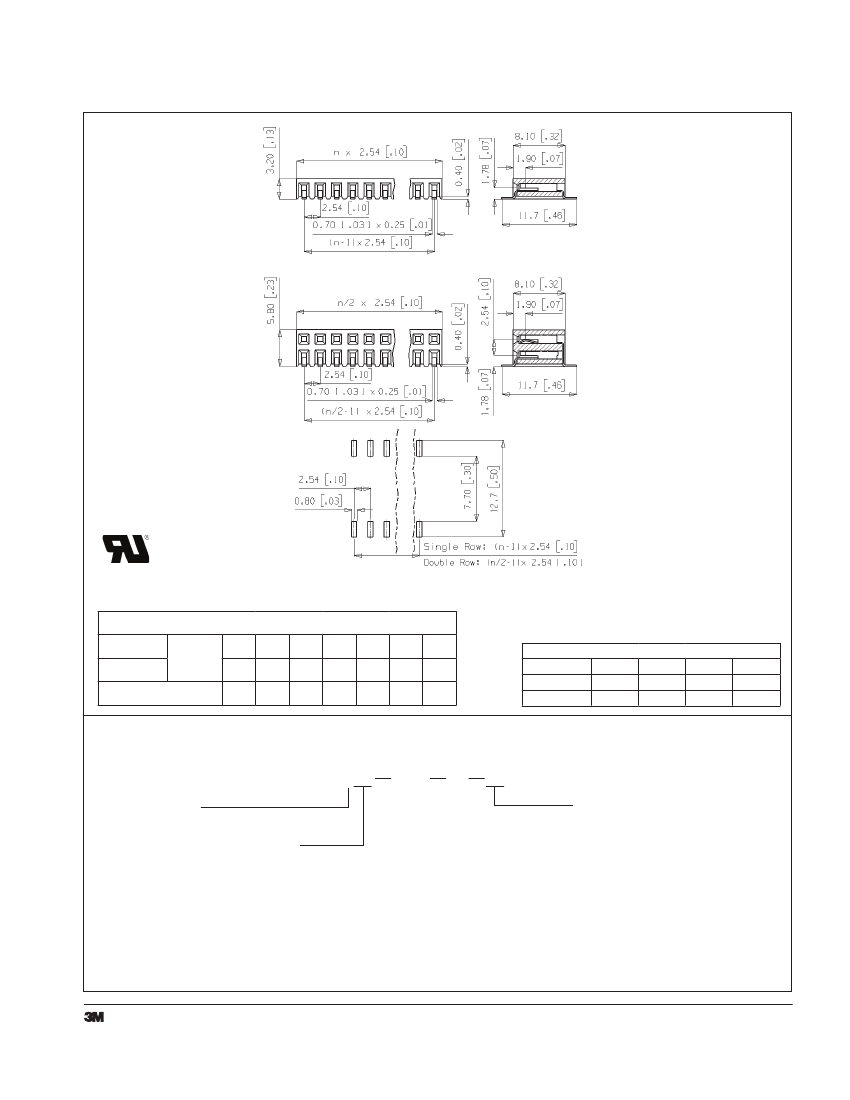

PCB Layout
Tape & Reel Option
9601xx-8100
(1 Row)
Contact
9602xx-8100
Quantity
(2 Row)
Tape Width
[mm]
4–6
7–8
9–13 14–17 18–22 23–29
30
60
104
n = No. of Contacts
8–12 14–16 18–26 28–34 36–44 46–58
24
32
44
56
72
88
Tolerance Unless Noted [mm]
Nominal Size
0.5–3
3–6
6–30
Linear Dim
+/- 0.1
+/- 0.1
+/- 0.2
Radii
+/- 0.2
+/- 0.5
+/- 1
30–120
+/- 0.3
+/- 1
Ordering Information
960XXX
Rows:
1 = 1 Row
2 = 2 Row
Contact Quantity:
04–30 Pins / 1 Row
08–60 Pins / 2 Row
8100
AR
XX
(RIA E1 & C1 Apply)
Packaging:
TP = Tube without Pad
TR = Tape & Reel
TS-2189-D
Sheet 2 of 2
Interconnect Solutions
www.3Mconnectors.com
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of ninety (90) days from the time of purchase.
3M MAKES NO OTHER WARRANTIES INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the warranty period stated
above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by law, 3M will
not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted.
