CIM25-B01NP

Description
D Microminiature Connector, 15 Contact(s), Female, Solder Terminal, Receptacle,
CategoryThe connector    The connector
File Size271KB,4 Pages
ManufacturerCristek Interconnects Inc
Download Datasheet Parametric View All

CIM25-B01NP Overview

D Microminiature Connector, 15 Contact(s), Female, Solder Terminal, Receptacle,

CIM25-B01NP Parametric

Parameter NameAttribute value
MakerCristek Interconnects Inc
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTANDARD: M83513
Body/casing typeRECEPTACLE
Connector typeD MICROMINIATURE CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED THREMOPLASTIC
JESD-609 codee4
MIL complianceYES
Manufacturer's serial numberCIM
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell surfaceNICKEL
Shell materialALUMINUM ALLOY
Housing sizeB
Termination typeSOLDER
Total number of contacts15
www.cristek.com

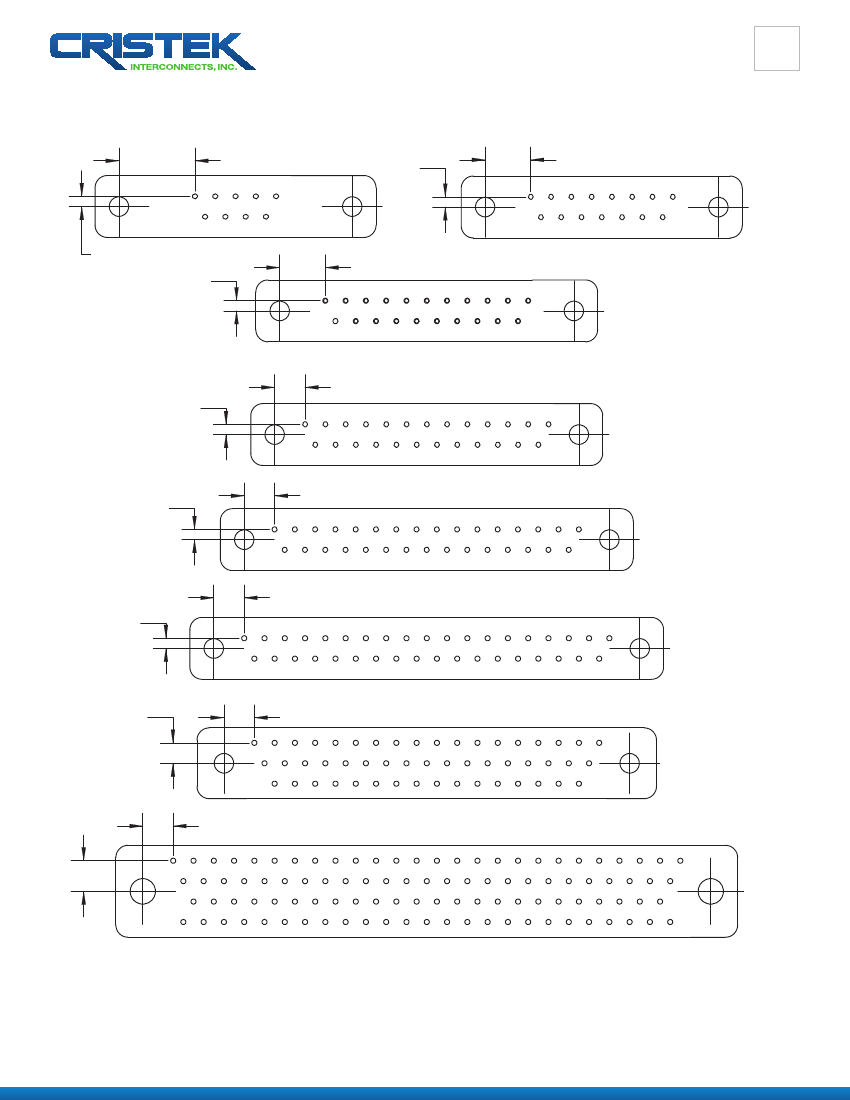

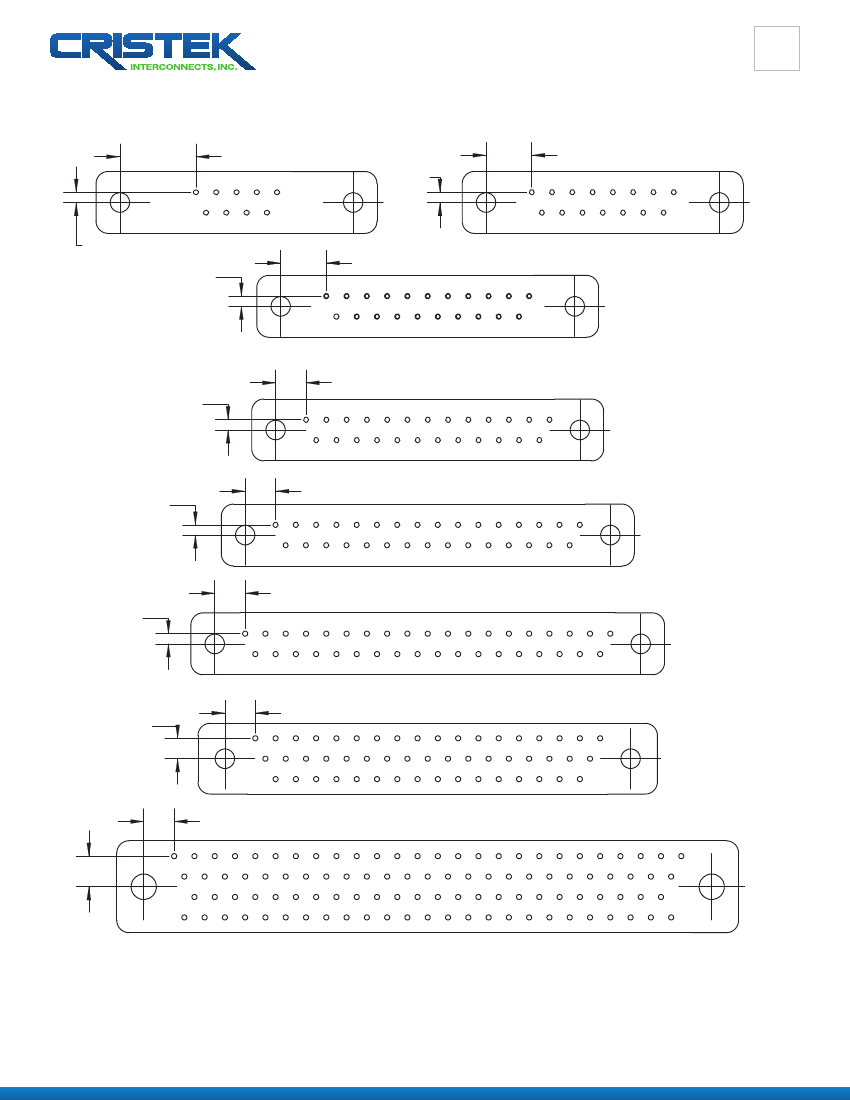

Military Micro D Metal Shell
Straight Board Mount
1.1
A
B
C
2x
.096 .005
E
PLUG
PIN #1
2x #2‐56 UNC‐2B
JACKPOST
.190 JACKPOST
.185
RECEPTACLE
SOCKET #1
D
.355
MAX
.165
MAX
SEE TERMINATION
OPTIONS
SIZE  9‐51
A
B
2x
.125 .003
E
PLUG
PIN #1
RECEPTACLE
SOCKET #1
D
2x #4‐40 UNC 2B
JACKPOST
.190 JACKPOST
.185
.303
MAX
.550
MAX
SEE TERMINATION
OPTIONS
SIZE  100
TOLERANCE:  .XXX ±.005
CRISTEK.COM
.XX ±.01
ANGLE ±1°
888.265.9162
MILITARY MICRO D METAL SHELL
STRAIGHT BOARD MOUNT
TITLE
DWG. NO.
SHT
REV
1
OF
4
M83513/22‐27
E
