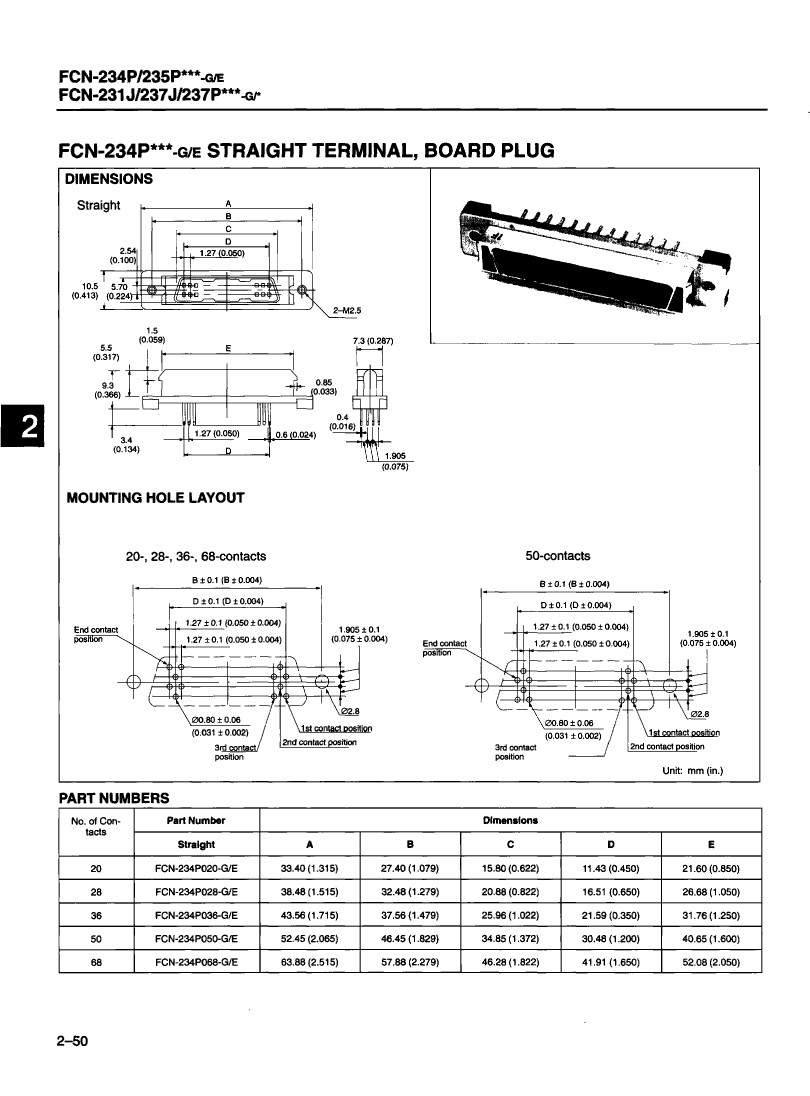

FNC-234P050-G/E datasheet, PDF

FNC-234P050-G/E: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug; CategoryThe connector The connector; File Size37KB，1 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

FNC-234P050-G/E Overview

Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug

Parameter Name	Attribute value
Maker	FUJITSU
Reach Compliance Code	unknown
Other features	STAGGERED CONFIGURATION
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	FCN-234P
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0

	FNC-234P050-G/E	FNC-234P020-G/E	FNC-234P028-G/E	FNC-234P036-G/E	FNC-234P068-G/E
Description	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug	Board Connector, 28 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug	Board Connector, 36 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug	Board Connector, 68 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug
Maker	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	FCN-234P	FCN-234P	FCN-234P	FCN-234P	FCN-234P
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	50	20	28	36	68
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
