NJM12903
SINGLE SUPPLY DUAL COMPARATOR
■
GENERAL DESCRIPTION
The NJM12903 is single-supply dual voltage comparator,
which can operate from 2V supply. The features are low input
offset voltage, low input bias current and low current
consumption.
The NJM12903 compare the input signal to 0V ( ground ) due
to the Darlington PNP input stage. The package lineup is DIP,
DMP and others compact, so that the NJM12903 is suitable for
any kind of signal comparator.
■
FEATURES
●
Operating Voltage
●
Open Collector Output
●
Bipolar Technology
●
Package Outline
■
PACKAGE OUTLINE
( +2V~+14V )
DIP8,DMP8,EMP8,SSOP8,
VSP8,SIP8
■

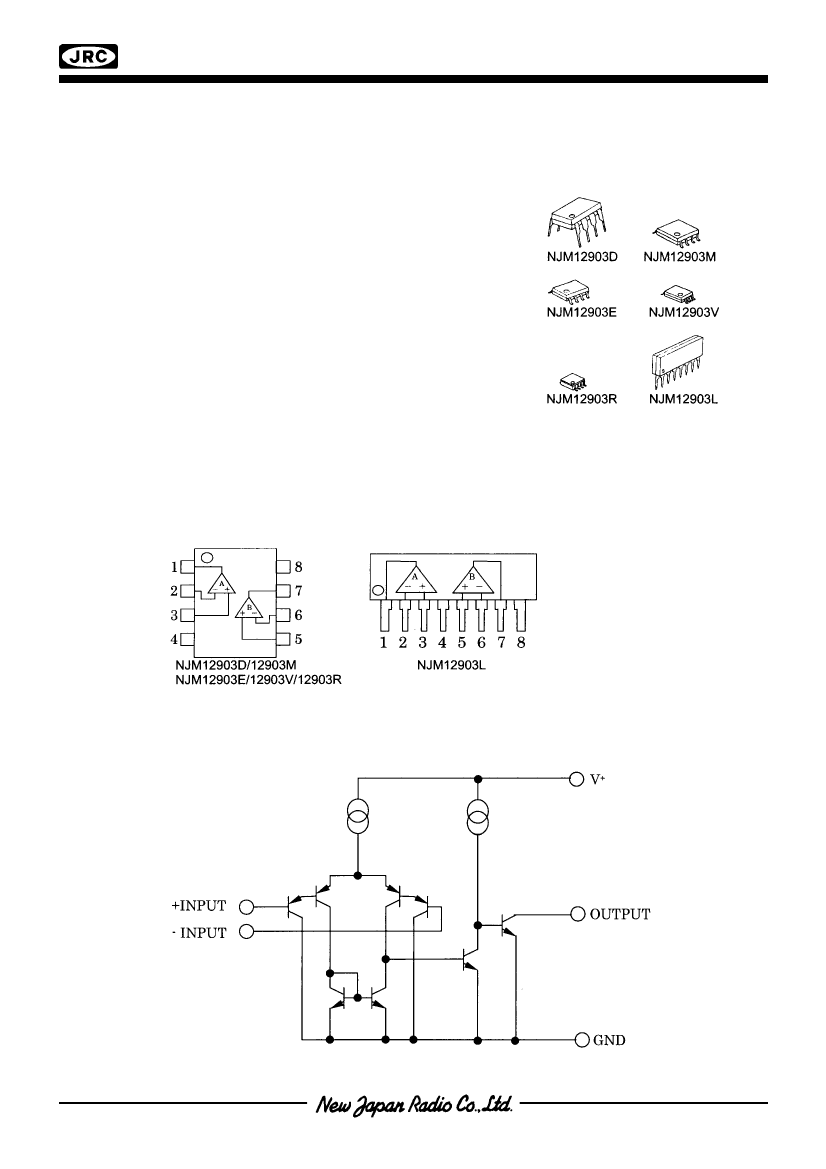

PIN CONFIGURATION
PIN FUNCTION
1.A OUTPUT
2.A -INPUT
3.A +INPUT
4.GND
5.B +INPUT
6.B –INPUT
7.B OUTPUT
+
8.V
■
EQUIVALENT CIRCUIT
( 1/2 Shown )
Ver.2003-03-19
-1-
NJM12903
■
ABSOLUTE MAXIMUM RATINGS
( Ta=25˚C )
PARAMETER
Supply Voltage
Differential Input Voltage
Input Voltage
SYMBOL
+
V
V
ID
V
IC
RATINGS
15
14
-0.3~+14
( DIP8 ) 500
( DMP8 ) 300
( EMP8 ) 300
( SSOP8 ) 250
( VSP8 ) 320
( SIP8 ) 800
-40~+85
-50~+125
UNIT
V
V
V
Power Dissipation
P
D
mW
Operating Temperature Range
Storage Temperature Range
T
opr
T
stg
˚C
˚C
■
ELECTRICAL CHARACTERISTICS
( V
+
=5V
,
Ta=25˚C )
PARAMETER
Operating Voltage
Input Offset Voltage
Input Offset Current
Input Bias Current
Large Signal Voltage Gain
Input Common Mode Voltage Range
Response Time
Output Sink Current
Output Saturation Voltage
Output Leakage Current
Operating Current
SYMBOL
V
opr
V
IO
I
IO
I
B
A
V
V
ICM
t
R
I
SINK
V
SAT
I
LEAK
I
CC
TEST CONDITION
R
S
=0Ω,V
O
=1.4V
R
L
=15kΩ
R
L
=5.1kΩ
-
+
V
IN
=1V,V
IN
=0V,V
O
=1.5V
-
+
V
IN
=1V,V
IN
=0V,I
SINK
=3mA
-
+
V
IN
=1V,V
IN
=0V,V
O
=5V
MIN.
2
-
-
-
-
0~3.5
-
6
-
-
-
TYP.
-
1
5
30
106
-
0.5
10
80
0.1
0.4
MAX.
14
4
50
200
-
-
-
-
300
1.0
1.0
UNIT
V
mV
nA
nA
dB
V
µs
mA
mV
µA
mA
-2-
Ver.2003-03-19
NJM12903
■

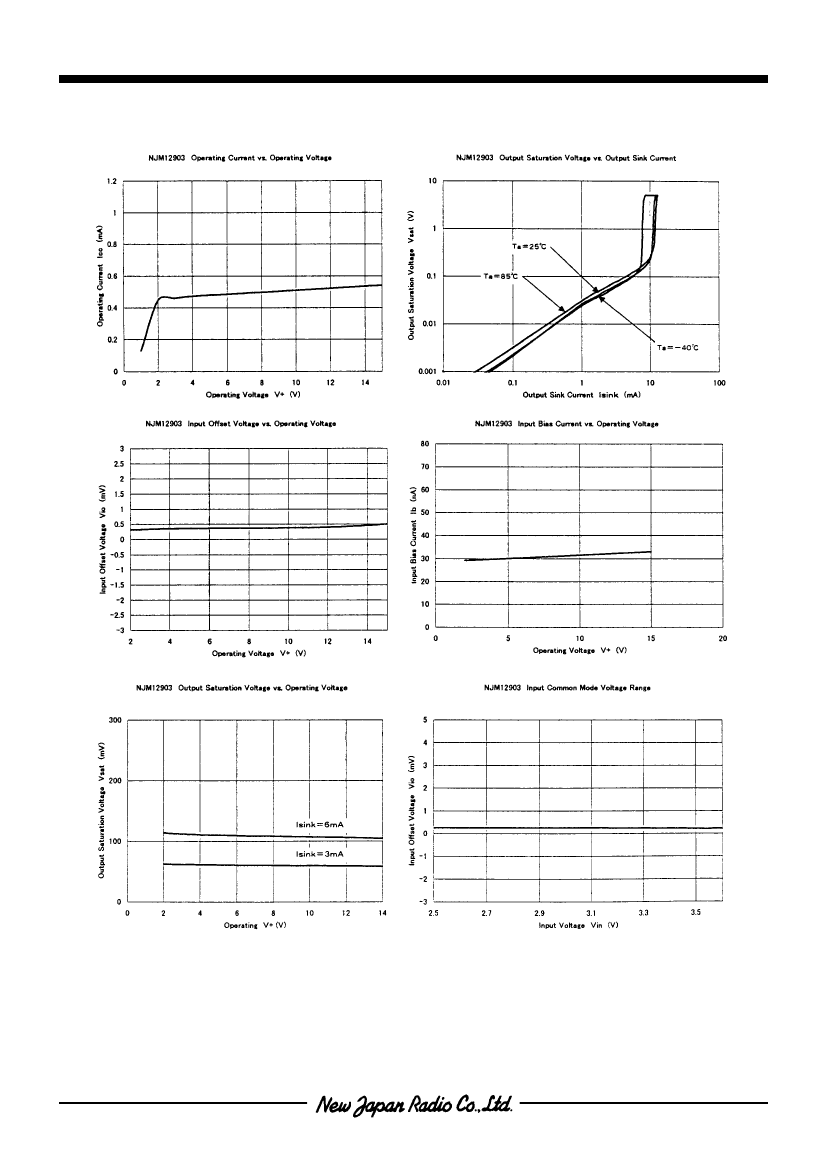

TYPICAL CHARACTERISTICS
Ver.2003-03-19
-3-
NJM12903
■

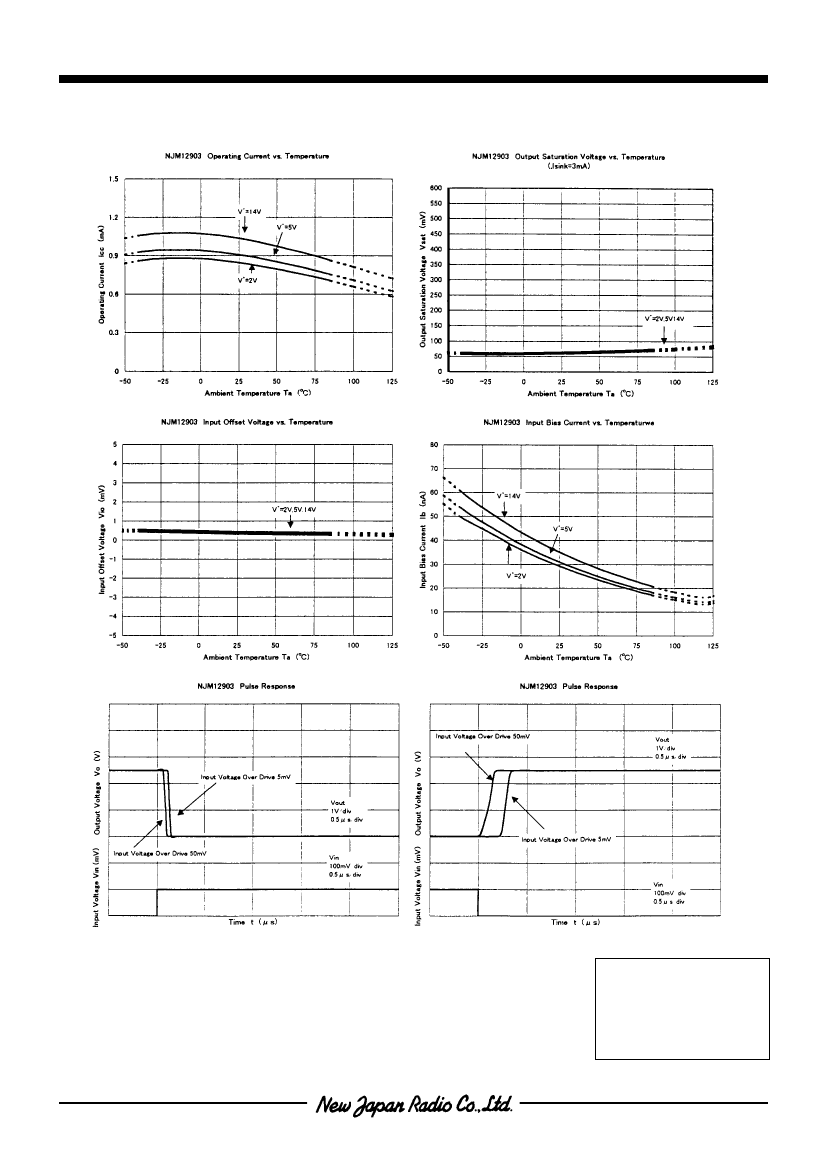

TYPICAL CHARACTERISTICS
[CAUTION]
The specifications on this databook are only
given for information , without any guarantee
as regards either mistakes or omissions. The
application circuits in this databook are
described only to show representative usages
of the product and not intended for the
guarantee or permission of any right including
the industrial rights.
-4-
Ver.2003-03-19
