BCY79-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BCY79-7

BCY79-7: DescriptionSmall Signal Bipolar Transistor, 0.2A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, TO-18; CategoryDiscrete semiconductor The transistor; File Size83KB，1 Pages; ManufacturerCDIL[Continental Device India Pvt. Ltd.]

Download Datasheet Parametric Compare View All

BCY79-7 Overview

Small Signal Bipolar Transistor, 0.2A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, TO-18

BCY79-7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	CDIL[Continental Device India Pvt. Ltd.]
package instruction	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	0.2 A
Collector-based maximum capacity	7 pF
Collector-emitter maximum voltage	45 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
JEDEC-95 code	TO-18
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.39 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Transistor component materials	SILICON
Nominal transition frequency (fT)	180 MHz
Maximum off time (toff)	800 ns
VCEsat-Max	0.8 V

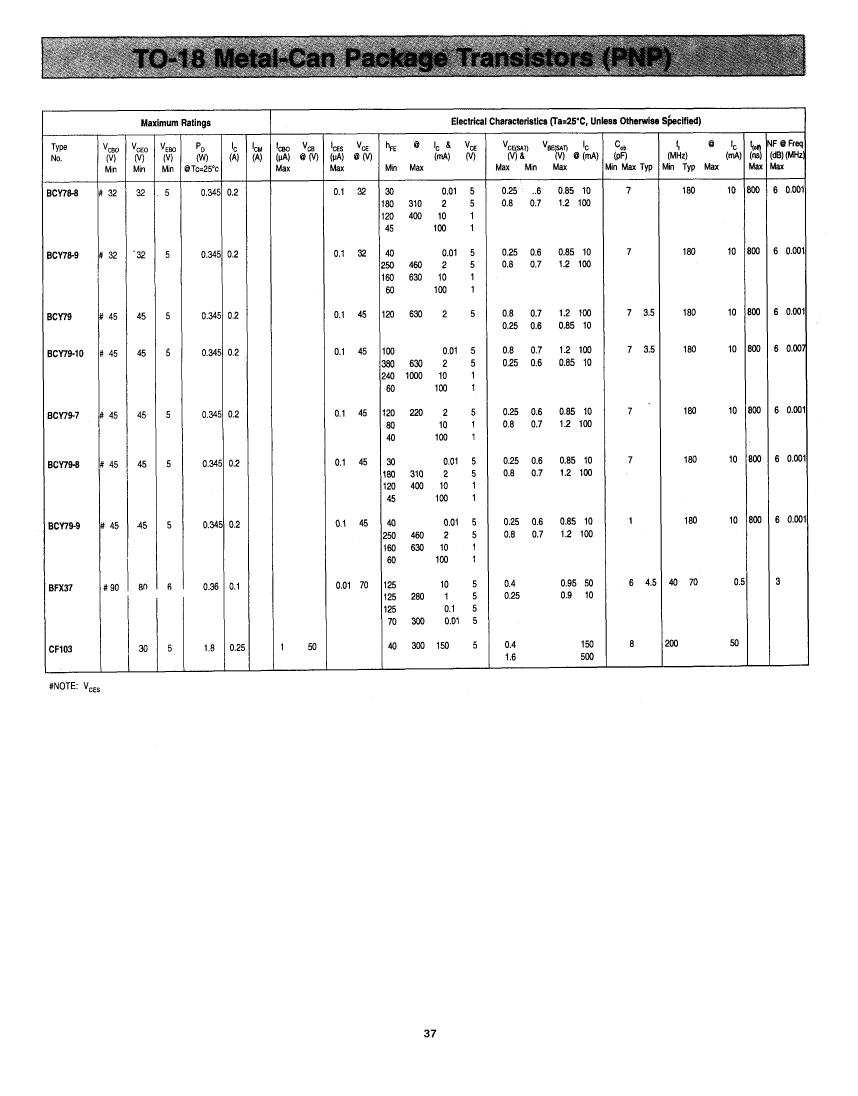

Preview

Download Datasheet

View All

BCY79-7 Related Products

	BCY79-7	BCY78-9	BCY79-8	BCY79-9	BCY78-8	BFX37	BCY79
Description	Small Signal Bipolar Transistor, 0.2A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, TO-18	Small Signal Bipolar Transistor, 0.2A I(C), 32V V(BR)CEO, 1-Element, PNP, Silicon, TO-18	Small Signal Bipolar Transistor, 0.2A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, TO-18	Small Signal Bipolar Transistor, 0.2A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, TO-18	Small Signal Bipolar Transistor, 0.2A I(C), 32V V(BR)CEO, 1-Element, PNP, Silicon, TO-18	Small Signal Bipolar Transistor, 0.1A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-18	Small Signal Bipolar Transistor, 0.2A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, TO-18
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.1 A	0.2 A
Collector-based maximum capacity	7 pF	7 pF	7 pF	1 pF	7 pF	6 pF	7 pF
Collector-emitter maximum voltage	45 V	32 V	45 V	45 V	32 V	80 V	45 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	40	60	45	60	45	125	120
JEDEC-95 code	TO-18	TO-18	TO-18	TO-18	TO-18	TO-18	TO-18
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	0.39 W	0.39 W	0.39 W	0.39 W	0.39 W	0.36 W	0.6 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	180 MHz	180 MHz	180 MHz	180 MHz	180 MHz	70 MHz	180 MHz
VCEsat-Max	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.4 V	0.8 V
Maker	CDIL[Continental Device India Pvt. Ltd.]	-	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]	CDIL[Continental Device India Pvt. Ltd.]
Maximum off time (toff)	800 ns	800 ns	800 ns	800 ns	800 ns	-	800 ns
