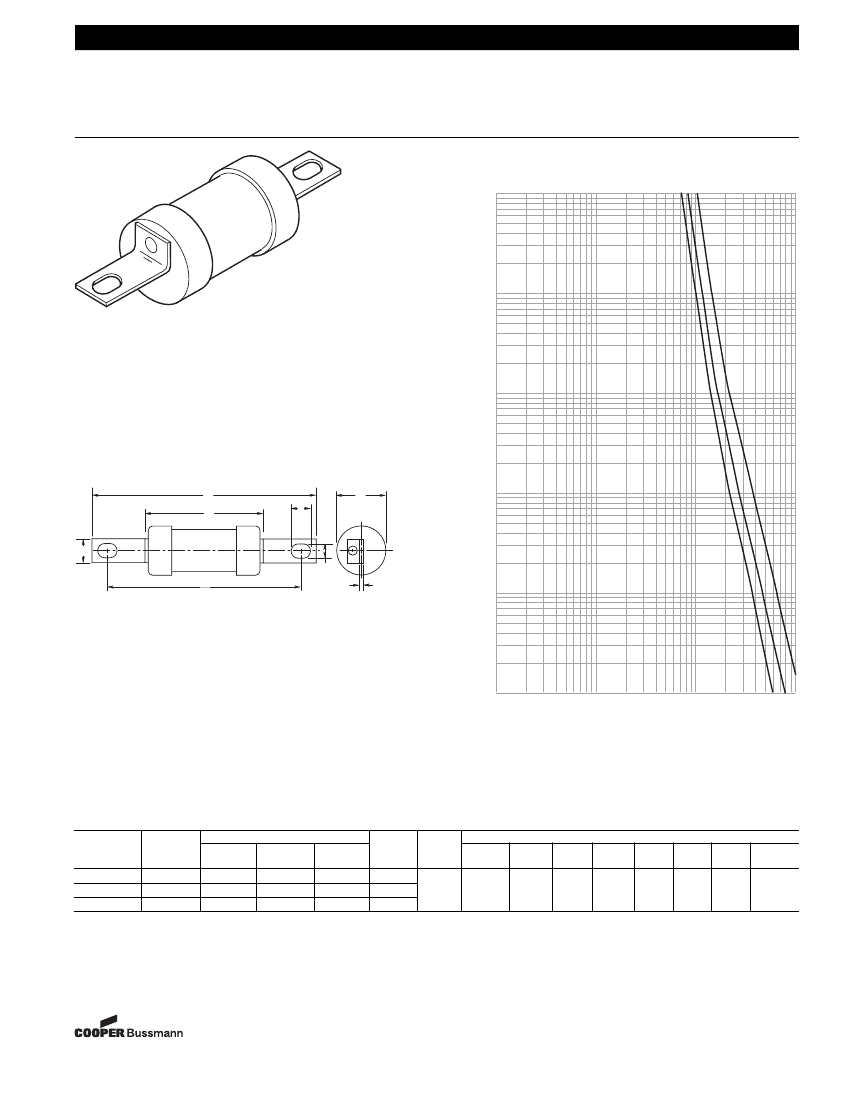

Bussmann
®
Industrial HRC Fuse Link
21.4 x 128mm, BS88, IEC 269-1
Center Bolted Tags
BD
Time-Current Characteristic Curve
(Full Size Curves Available)
1,000
CURRENT
RATING
40
50
63
100
TIME IN SECONDS
B
J
H
F
CATALOG SYMBOL: BD
INDUSTRIAL HRC FUSE LINK
CENTER BOLTED TAGS
PACKAGE QUANTITY: 20
80kA INTERRUPTING RATING
MOUNTS IN 200DF FUSEHOLDER
10
Dimensional Data:
D
A
E
G
1
.1
CURRENT IN AMPERES
Electrical Characteristics
Catalog
Number
BD40
BD50
BD63
Ampere
Rating
40
50
63
I
2
T (Amp
2
Seconds)
Pre-
Total At
Arcing
415V
1400
3000
6700
3600
8050
18,850
Total At
550V
5000
11,250
25,100
Nom
Watts
Loss
4.7
4.9
5.6
Dimensions (Inches/mm)
Rated
Voltage
550AC
250DC
A
55.5
B
21.0
D
5.06
128.5
E
14.2
F
1.4
G
111.5
H
0.34
8.7
J
11.8
The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this BIF document are by definition uncontrolled. This bulletin is intended to
clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any
products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been select-
ed, it should be tested by the user in all possible applications.
12-17-98
SB98107
Rev. A
Form No. BD
Page 1 of 1
BIF Doc #4114
