PCB terminal block - MKDS 1/14-3,5 BD:5-18 - 1907380
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, nominal current: 10 A, nom. voltage: 200 V, pitch: 3.5 mm, number of positions: 14,
connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB
connection direction: 0 °, color: green

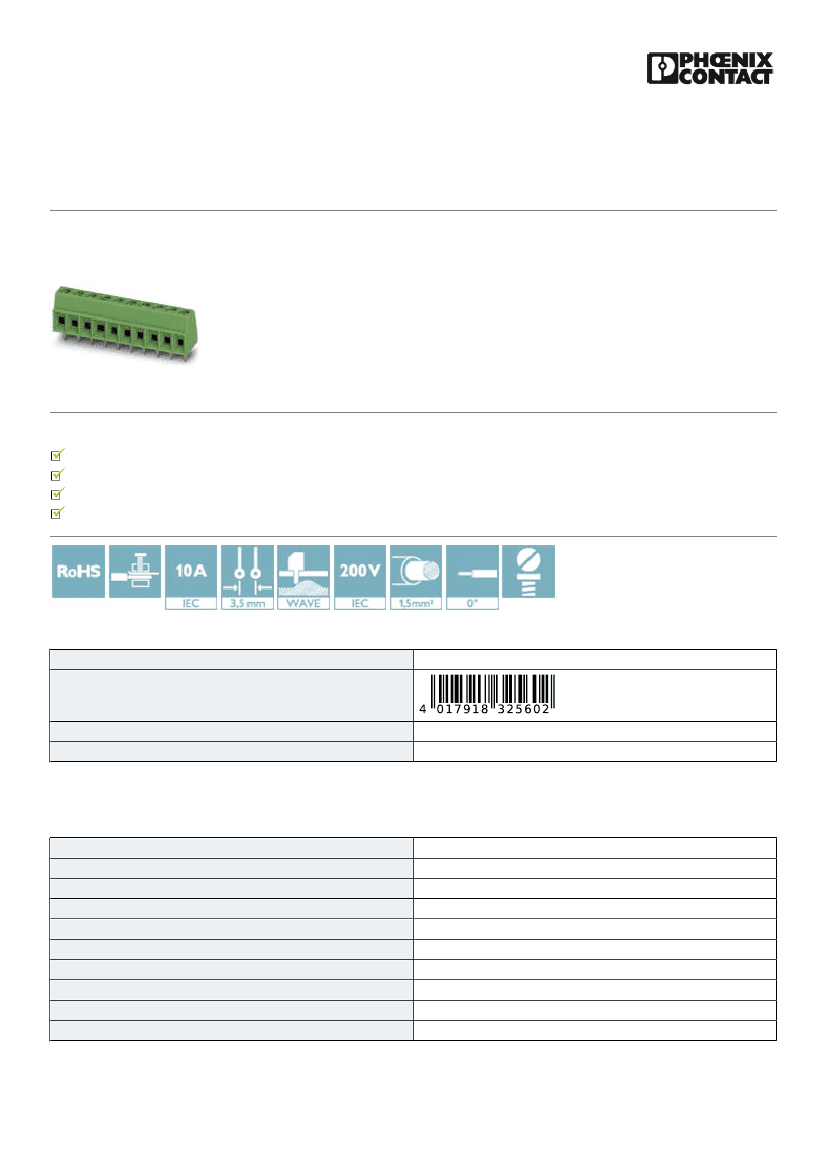

The figure shows a 10-position
version of the product
Your advantages
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Extremely small design for the respective conductor cross section
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4017918325602
85369010
1
Technical data
Item properties
Brief article description
Range of articles
Pitch
Number of positions
Connection method
Drive form screw head
Screw thread
Mounting type
Pin layout
Number of levels
PCB terminal block
MKDS 1
3.5 mm
14
Screw connection with tension sleeve
Slotted (L)
M2
Wave soldering
Linear pinning
1
01/18/2019 Page 1 / 6
https://www.phoenixcontact.com/in/products/1907380
PCB terminal block - MKDS 1/14-3,5 BD:5-18 - 1907380
Technical data
Electrical parameters
Rated current
Rated insulation voltage (III/2)
Rated surge voltage (III/2)
13.5 A
200 V
2.5 kV
Connection capacity
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG / kcmil
Conductor cross section flexible, with ferrule without plastic sleeve
Conductor cross section, flexible, with ferrule, with plastic sleeve
2 conductors with same cross section, solid
2 conductors with same cross section, flexible
Stripping length
Torque
0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm²
26 ... 16
0.25 mm² ... 0.5 mm²
0.25 mm² ... 0.5 mm²
0.14 mm² ... 0.5 mm²
0.14 mm² ... 0.34 mm²
5 mm
0.22 Nm ... 0.25 Nm
Material data - contact
Note
Contact material
Metal surface terminal point (top layer)
Metal surface terminal point (middle layer)
Metal surface soldering area (top layer)
Metal surface soldering area (middle layer)
WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/
JEDEC JESD 201
Cu alloy
Tin (5 - 7 µm Sn)
Nickel (2 - 3 µm Ni)
Tin (5 - 7 µm Sn)
Nickel (2 - 3 µm Ni)
Material data - housing
Insulating material
Insulating material group
CTI according to IEC 60112
Flammability rating according to UL 94
Glow wire flammability index GWFI according to EN 60695-2-12
Glow wire ignition temperature GWIT according to EN 60695-2-13
Temperature for the ball pressure test according to EN 60695-10-2
PA
I
600
V0
850
775
125 °C
Dimensions for the product
Length [ l ]
Width [ w ]
Height [ h ]
Pitch
Height (without solder pin)
Solder pin [P]
Pin dimensions
Dimension a
7.3 mm
49.5 mm
12 mm
3.5 mm
8.5 mm
3.5 mm
0.5 x 0.9 mm
45.5 mm
Dimensions for PCB design
01/18/2019 Page 2 / 6
https://www.phoenixcontact.com/in/products/1907380
PCB terminal block - MKDS 1/14-3,5 BD:5-18 - 1907380
Technical data
Dimensions for PCB design
Hole diameter
1.1 mm
Packaging information
Type of packaging
Pieces per package
Denomination packing units
packed in cardboard
50
Pcs.
General product information
Type of note
Note on application
For safe conductor connection, always adhere to a defined tightening
torque. Particularly in the case of PCB terminal blocks with two or
three positions, the individual solder pin for each contact point cannot
compensate for this. That is why the terminal blocks must be supported
during conductor connection (held with one hand, support on the
housing).
Note
Ambient conditions
Ambient temperature (storage/transport)
Ambient temperature (assembly)
Ambient temperature (operation)
-40 °C ... 70 °C
-5 °C ... 100 °C
-40 °C
Electrical tests
Rated current
Rated insulation voltage (III/2)
Rated surge voltage (III/2)
13.5 A
200 V
2.5 kV
Air clearances and creepage distances
Insulating material group
Voltage
Rated insulation voltage (III/3)
Rated insulation voltage (III/2)
Rated insulation voltage (II/2)
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
I
160 V
160 V
200 V
400 V
2.5 kV
2.5 kV
2.5 kV
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CSA
V0
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
01/18/2019 Page 3 / 6
https://www.phoenixcontact.com/in/products/1907380
PCB terminal block - MKDS 1/14-3,5 BD:5-18 - 1907380
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141109
27141109
27141190
27261100
27261100
27440401
27440401
27440401
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC001121
EC002643
EC002643
EC002643
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
39121432
39121432
39121432
Approvals
Approvals
Approvals
IECEE CB Scheme / SEV / EAC / cULus Recognized
Ex Approvals
Approval details
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.iecee.org/
CH-8225
125 V
12 A
1.5
01/18/2019 Page 4 / 6
https://www.phoenixcontact.com/in/products/1907380
PCB terminal block - MKDS 1/14-3,5 BD:5-18 - 1907380
Approvals
SEV
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
https://www.electrosuisse.ch/de/meta/shop/produktezertifikate.html
125 V
12 A
1.5
IK-3542-M1
EAC
D
300 V
10 A
30-16
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19770427
B
300 V
10 A
30-16
Accessories
Accessories
Labeled terminal marker
Marker card - SK 3,5/2,8:FORTL.ZAHLEN - 0804073
Marker card, Card, white, labeled, Horizontal: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 91 ... 99, mounting
type: adhesive, for terminal block width: 3.5 mm, lettering field size: 3.5 x 2.8 mm
Marker pen
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Screwdriver tools
