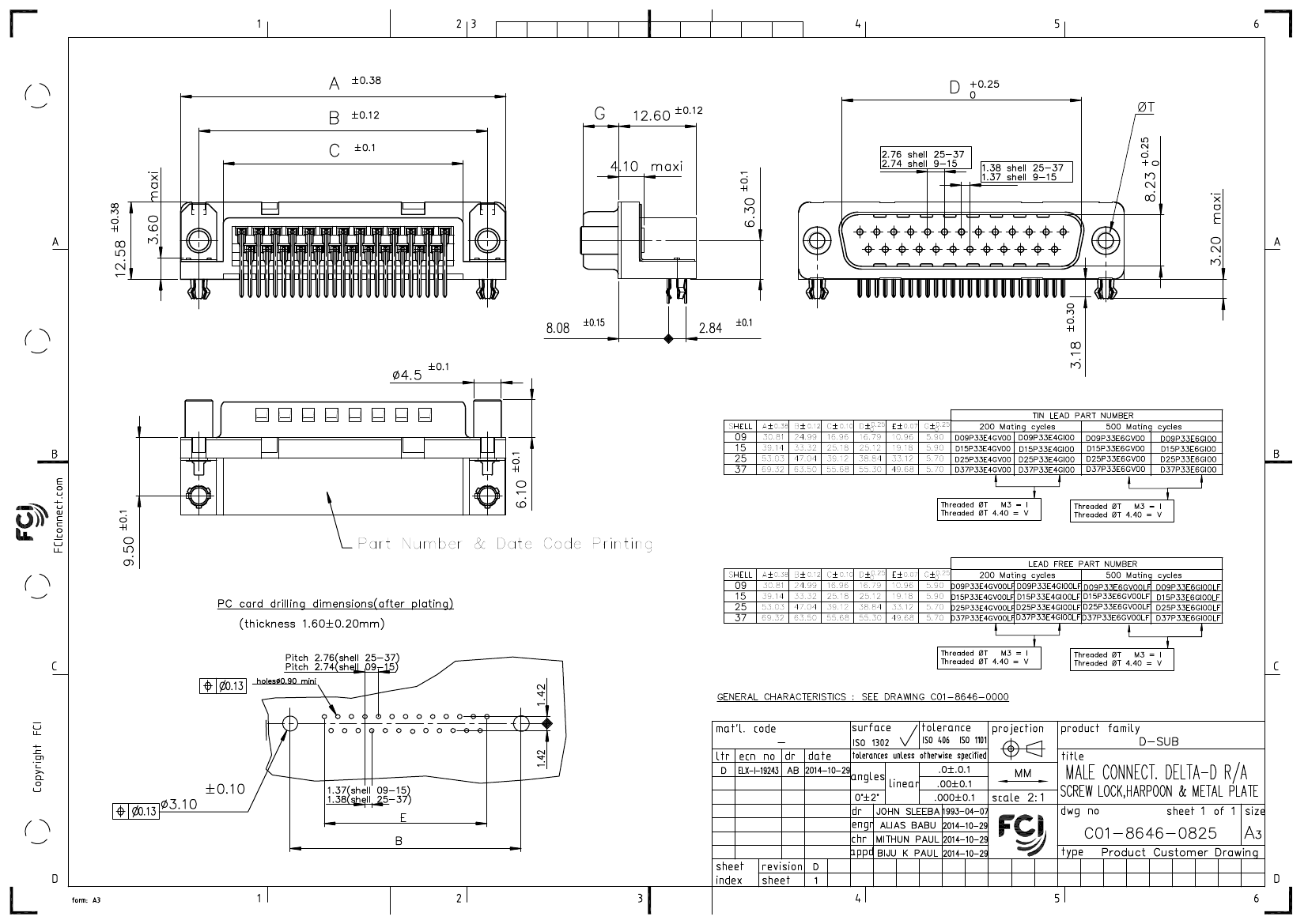

D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, M3
| Parameter Name | Attribute value |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| body width | 0.495 inch |
| subject depth | 0.496 inch |
| body length | 2.729 inch |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD FLASH OVER NICKEL |
| Contact completed and terminated | TIN LEAD OVER NICKEL |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | STAGGERED |
| Contact resistance | 10 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1400VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 4.8928 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYESTER |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | D |
| Plug contact pitch | 0.109 inch |
| Mixed contacts | NO |
| Installation option 1 | M3 |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.8448 mm |
| Plating thickness | FLASH inch |
| Rated current (signal) | 5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | TIN/ZINC CHROMIUM |
| Shell material | STEEL |
| Housing size | 4/C |
| Terminal length | 0.125 inch |
| Terminal pitch | 2.7686 mm |
| Termination type | SOLDER |
| Total number of contacts | 37 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .30024 N |
| D37P33E4GI00 | D37P33E6GV00LF | D37P33E4GV00LF | D09P33E6GV00LF | D15P33E6GV00LF | D25P33E6GV00LF | D25P33E6GI00LF | D37P33E6GI00LF | D09P33E6GI00LF | |
|---|---|---|---|---|---|---|---|---|---|
| Description | D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, M3 | CONN D-SUB PLUG 37POS R/A SOLDER | CONN D-SUB PLUG 37POS R/A SOLDER | D Subminiature Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, #4-40, LEAD FREE | D Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, #4-40, Receptacle, LEAD FREE | D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle, LEAD FREE | D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, M3, LEAD FREE | D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, M3, LEAD FREE | D Subminiature Connector, 9 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, M3, LEAD FREE |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| body width | 0.495 inch | 0.494 inch | 0.495 inch | 0.495 inch | 0.494 inch | 0.494 inch | 0.495 inch | 0.495 inch | 0.495 inch |
| subject depth | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch | 0.496 inch |
| body length | 2.729 inch | 2.729 inch | 2.729 inch | 1.213 inch | 1.541 inch | 2.088 inch | 2.088 inch | 2.729 inch | 1.213 inch |
| Connector type | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD FLASH OVER NICKEL | NOT SPECIFIED | NOT SPECIFIED | GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL | NOT SPECIFIED | GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact material | BRASS | NOT SPECIFIED | NOT SPECIFIED | BRASS | NOT SPECIFIED | NOT SPECIFIED | BRASS | BRASS | BRASS |
| contact mode | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| Contact resistance | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ | 10 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V | 1400VAC V |
| empty shell | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| maximum insertion force | 4.8928 N | 4.8928 N | 4.8928 N | 4.8928 N | 4.8928 N | 5.3376 N | 4.8928 N | 4.8928 N | 4.8928 N |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK |
| insulator material | POLYESTER | POLYESTER | POLYESTER | POLYESTER | POLYESTER | POLYESTER | POLYESTER | POLYESTER | POLYESTER |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Plug contact pitch | 0.109 inch | 0.109 inch | 0.109 inch | 0.108 inch | 0.108 inch | 0.109 inch | 0.109 inch | 0.109 inch | 0.108 inch |
| Mixed contacts | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation option 1 | M3 | #4-40 | #4-40 | #4-40 | #4-40 | #4-40 | M3 | M3 | M3 |
| Installation option 2 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| PCB row number | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | 2.8448 mm | 2.8448 mm | 2.8448 mm | 2.8448 mm | 2.8448 mm | 2.8448 mm | 2.8448 mm | 2.8448 mm | 2.8448 mm |
| Plating thickness | FLASH inch | 30u inch | FLASH inch | 30u inch | 30u inch | 30u inch | 30u inch | 30u inch | 30u inch |
| Rated current (signal) | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A |
| Guideline | UL | UL | UL | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell surface | TIN/ZINC CHROMIUM | TIN/ZINC CHROMIUM | TIN/ZINC CHROMIUM | TIN/ZINC CHROMIUM | TIN/ZINC CHROMIUM | TIN/ZINC CHROMIUM | TIN/ZINC CHROMIUM | TIN/ZINC CHROMIUM | TIN/ZINC CHROMIUM |
| Shell material | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL |
| Housing size | 4/C | 4/C | 4/C | 1/E | 2/A | 3/B | 3/B | 4/C | 1/E |
| Terminal length | 0.125 inch | 0.125 inch | 0.125 inch | 0.125 inch | 0.125 inch | 0.125 inch | 0.125 inch | 0.125 inch | 0.125 inch |
| Terminal pitch | 2.7686 mm | 2.76 mm | 2.7686 mm | 2.7432 mm | 2.74 mm | 2.76 mm | 2.7686 mm | 2.7686 mm | 2.7432 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 37 | 37 | 37 | 9 | 15 | 25 | 25 | 37 | 9 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Evacuation force-minimum value | .30024 N | .30024 N | .30024 N | .30024 N | .30024 N | .30024 N | .30024 N | .30024 N | .30024 N |
| Maker | Amphenol | Amphenol | Amphenol | - | - | - | Amphenol | Amphenol | Amphenol |
| Contact completed and terminated | TIN LEAD OVER NICKEL | - | Matte Tin (Sn) - with Nickel (Ni) barrier | Matte Tin (Sn) - with Nickel (Ni) barrier | Matte Tin (Sn) - with Nickel (Ni) barrier | - | MATTE TIN (79) OVER NICKEL (50) | MATTE TIN (79) OVER NICKEL (50) | MATTE TIN (79) OVER NICKEL (50) |
| JESD-609 code | e0 | - | e3 | e3 | e3 | - | e3 | e3 | e3 |
| Is it Rohs certified? | - | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| package instruction | - | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE | LEAD FREE |
| Factory Lead Time | - | 10 weeks | 10 weeks | 8 weeks | 6 weeks | - | - | - | 12 weeks |
