D37S33E4GX00: DescriptionD Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Socket; CategoryThe connector The connector; File Size97KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D37S33E4GX00 Overview

D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Socket

D37S33E4GX00 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.495 inch
subject depth	0.734 inch
body length	2.736 inch
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	POLYESTER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	D
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN/ZINC CHROMIUM
Shell material	STEEL
Housing size	4/C
Terminal length	0.125 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

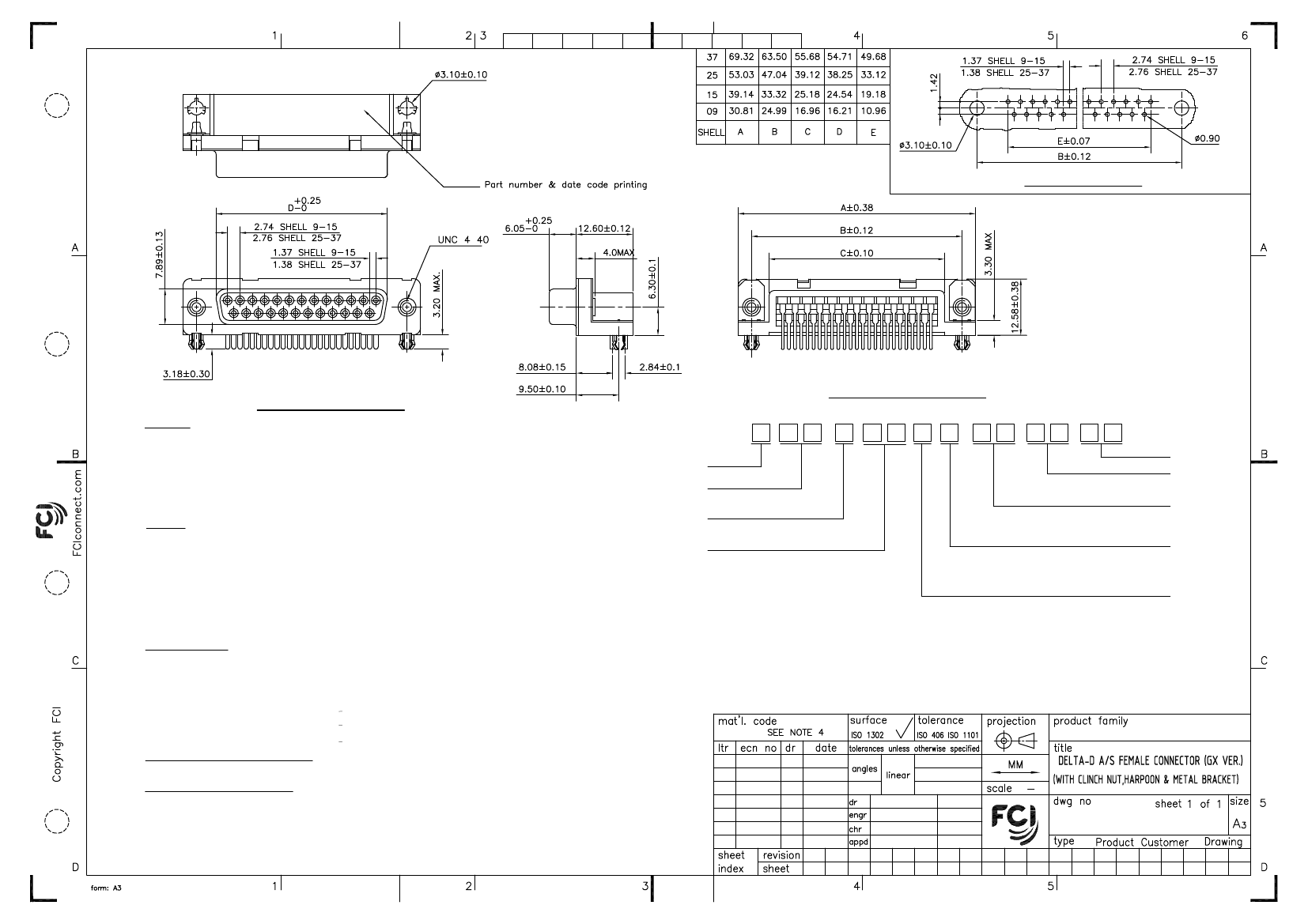

PCB DRILLING DETAILS

TECHNICAL SPECIFICATIONS

MATERIAL

SHELL

INSULATORS

:

STEEL TIN/Zinc Cr 3 PLATED.

SELF EXTINGUISHING BLACK POLYESTER UL CLASS 94V0

THE HOUSING WILL WITHSTAND EXPOSURE TO 260-265°C

IF WE USE PROTECTIVE ADHESIVE (type Kapton or Teflon)

OR PROTECTIVE METALLIC DEVICE

CONTACTS

:

COPPER ALLOY

ORDERING INFORMATION

D

SERIES

NO.OF CONTACTS

09,15,25&37

TYPE OF CONTACTS

S-SOCKET

TYPE OF TERMINATION

33-ANGLED SPILL

PITCH 2.84 USA

FOOT PRINT 8.08 USA

2

5

S

3

E

4

G

X

0

L

F

LEAD FREE

SPECIAL CODE

00->STANDARD

MOUNTING OPTIONS

GX->HARPOON+INSERT UNC 4 40+METAL BRACKET

GL->HARPOON+INSERTM3+METAL BRACKET

PLATING

4->FLASH Au+Sn Pb

6->0.76

µ

Au+Sn/Sn Pb

HEIGHT OF TERMINATION

E-3.18 US STANDARD

PLATING

ACTIVE ZONE

TERMINATION ZONE

FOR LEAD FREE PLATING

:

GOLD OVER NICKEL

TIN LEAD OVER NICKEL

2

µ

MIN.MATTE TIN TOP OVER

1.27

µ

MIN.NICKEL UNDER PLATE(ON TERMINATION ZONE)

METAL BRACKET

HARPOON

CLINCH NUT

:

BRASS,TIN/Zinc Cr 3 PLATED.

BRASS,TIN PLATED.

BRASS,TIN/Zinc Cr 3 PLATED.

"This LF product meets European Union Directives and other country

regulations as described in GS-22-008"

ELECTRICAL DATA

MAX.CURRENT RATING

TEST VOLTAGE

RATED VOLTAGE

CONTACT RESISTANCE

SHELL RESISTANCE

INSULATION RESISTANCE

:

5A

1000V

300V

< 25m

Ω

< 5m

Ω

> 5000M

Ω

The housing will withstand exposure to 260°C peak temperature for 3.5 seconds

in a wave solder application with a 1.6mm minimum thick circuit board.

Packaging as per GS-14-920

DELTA-D

B

I06-0074

GVJ

2006/06/08

.00±0.1

0°±1°

.000±.00X

GEORGE.V.JOSEPH

K_V_SIVADAS

B

1

1998/12/16

2006/06/22

ENVIRONMENTAL CHARACTERISTICS.

OPERATING TEMPERATURE RANGE

:

-55°C +125°C

MECHANICAL CHARACTERISTICS

MATING/UNMATING CYCLES (MIN)

INSERTION/EXTRACTION FORCE PER CONTACT

:

200 (FLASH Au); 500 (0.76µ Au)

5 N Max./ 0.3 N Min.

C-DD-0085

6

PDM: Rev:B

STATUS:

Released

Printed: Jan 18, 2011

.

D37S33E4GX00 Related Products

	D37S33E4GX00	D37S33E6GX00	D15S33E4GX00	D15S33E6GX00	D25S33E6GX00	D25S33E4GX00	D09S33E6GX00	D09S33E4GX00
Description	D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Socket	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Solder Terminal, #4-40, Socket	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Socket	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket
Reach Compliance Code	compliant	unknown	compliant	unknown	unknown	compliant	unknown	unknown
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL	GOLD (30) OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD (30) OVER NICKEL	GOLD FLASH OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	D	D	D	D	D	D	D	D
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	4/C	4/C	2/A	2/A	3/B	3/B	1/E	1/E
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	37	37	15	15	25	25	9	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
