DFV14-MLECP666.5143MHZ100E30 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> DFV14-MLECP666.5143MHZ100E30

DFV14-MLECP666.5143MHZ100E30: DescriptionLVPECL 100K Output Clock Oscillator, 666.5143MHz Nom,; CategoryPassive components oscillator; File Size82KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

DFV14-MLECP666.5143MHZ100E30 Overview

LVPECL 100K Output Clock Oscillator, 666.5143MHz Nom,

DFV14-MLECP666.5143MHZ100E30 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	compliant
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	0.5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	30%
Manufacturer's serial number	DFV14-MLECP
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	666.5143 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVPECL 100K
Output load	50 OHM
physical size	20.3mm x 12.7mm x 8.5mm
longest rise time	0.5 ns
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

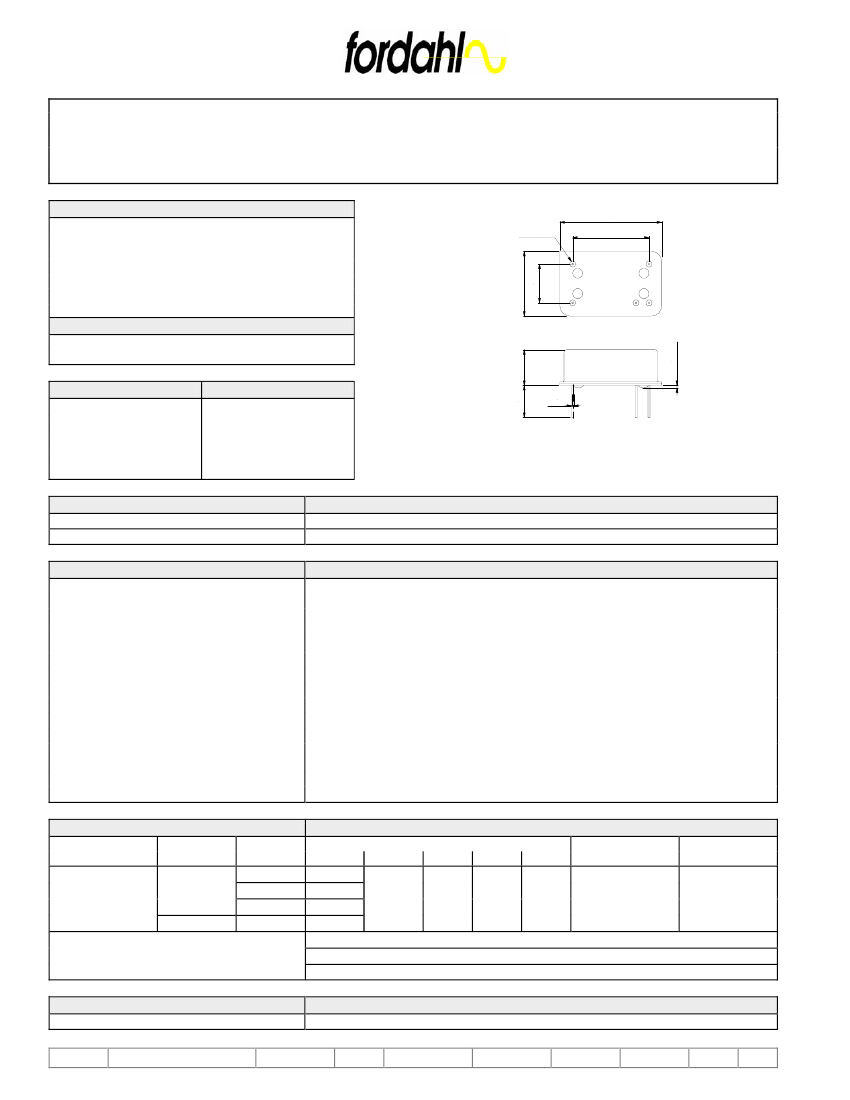

FREQUENCY CONTROL PRODUCTS

HIGH FREQUENCY DIL 14 VCXO

DFV 14-MLECP (3.3 V)

KEY FEATURES

622 to 800 MHz

Parametric frequency multiplication

0.4 ps RMS jitter over 50 kHz to 80 MHz B.W.

APPLICATIONS

H = 8.50 mm

H±0.1

PIN 1

20.3±0.1

15.24

12.7±0.1

7.62

OC-192/Sonet/SDH

Function

V control

GND

Output 1

Output 2

Vcc

TYPE

Frequency Range

Standard Frequencies

DFV 14

6.3

0.45

DFV 14-MLECP

622 to 800 MHz

622.0800; 644.5313; 666.5143; 669.3266; 693.4828; 777.6000 MHz

ELECTRICAL SPECIFICATIONS

supply voltage

supply current (no load)

output load

duty cycle @ 50% level

rise/fall times ( 20 to 80% )

high/low levels

jitter RMS ( 12 kHz to 5 MHz )

jitter RMS ( 12 kHz to 20 MHz )

jitter RMS ( 50 kHz to 80 MHz )

complementary output on pin 9

start up

3.3 V ± 5 %

≤

60 mA

LVPECL 100 K ( 50

Ω

to 1.3 V )

45/55...55/45 %

≤

0.5 ns

≥

2.22 V/

≤

1.7 V

0.08 ps typ;

≤

0.10 ps

0.12 ps typ;

≤

0.15 ps

0.32 ps typ;

≤

0.40 ps

180° phase shifted

≤

10 ms @ 3.15 V

FREQUENCY STABILITY

type

temperature model

range

code

100B20

0 to 70°C 100B25

100B50

-40 to 85°C 100E30

temp.

≤

± 20

≤

± 25

≤

± 50

≤

± 30

detailed tolerances [ ppm ]

stability versus:

@ 25°C

Vcc

load

≤

± 10

≤

±3

≤

± 0.5

ageing

≤

±2

pulling range

positive function

≥

± 100

control

voltage

1.65 V

1.35 V

DFV 14-MLECP

remarks

input impedance

≥

10 kΩ,

modulation bandwidth

≥

10 kHz @ -3dB

ageing is 1

year at 25°C

ORDERING CODE

Example

TYPE

DFV 14-MLECP

REVISION

type + option code + frequency + model code

DFV 14-MLECP 622.08 MHz 100B20

CHECKED

DATE

11.10.2002

PAGE

0.75±0.1
