DFVS8-MLECP666.5124MHZ100B25 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> DFVS8-MLECP666.5124MHZ100B25

DFVS8-MLECP666.5124MHZ100B25: DescriptionLVPECL Output Clock Oscillator, 666.5124MHz Nom; CategoryPassive components oscillator; File Size85KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

DFVS8-MLECP666.5124MHZ100B25 Overview

LVPECL Output Clock Oscillator, 666.5124MHz Nom

DFVS8-MLECP666.5124MHZ100B25 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	compliant
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	0.5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	25%
Manufacturer's serial number	DFVS8-MLECP
Installation features	SURFACE MOUNT
Nominal operating frequency	666.5124 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVPECL
Output load	50 OHM
physical size	19.8mm x 12.8mm x 7.8mm
longest rise time	0.5 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

FREQUENCY CONTROL PRODUCTS

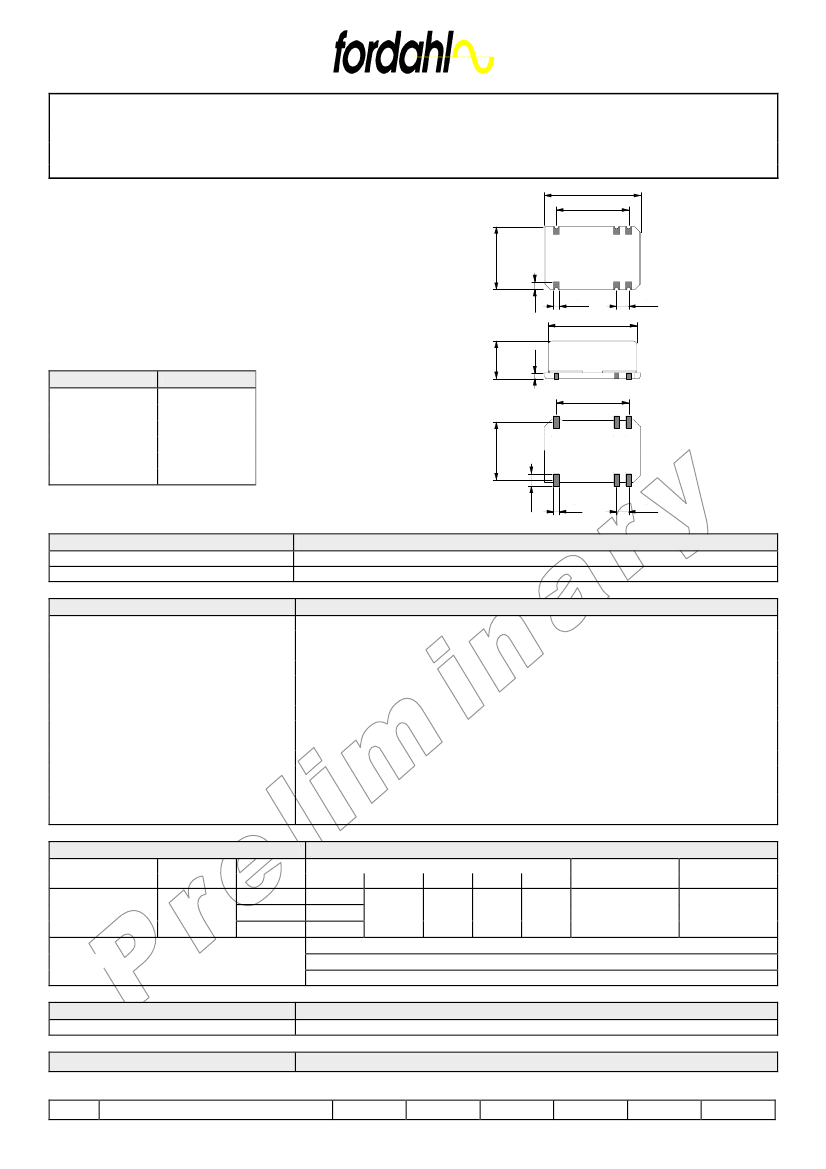

SURFACE MOUNT VOLTAGE CONTROL OSCILLATOR

DFV S8-MLECP (3.3 V)

19.8±0.2

CRYSTAL PACKED INTO ITS OWN HOLDER

12.8±0.1

15.24

3.3 V SUPPLY VOLTAGE

VERY LOW JITTER

1.6

1.27

18.4

2.54

H±0.15

Function

V control

E/D

GND

Output 1

Output 2

Vcc

DFV S8

1.2

15.24

9 8

PC board footprint

12.0

2.6

6 7

H=7.80 mm

1.3

2.54

TYPE

Frequency Range

Standard Frequencies

DFV S8-MLECP

622.08 to 800 MHZ

622.08, 644.53125 & 666.5124 MHz

ELECTRICAL SPECIFICATIONS

supply voltage

supply current (no load)

output load

duty cycle @ 50% level

rise/fall times ( 20 to 80% )

high/low levels

jitter RMS ( 12 kHz to 5 MHz )

jitter RMS ( 50 kHz to 80 MHz )

complementary output on pin 9

start up

3.3 V ± 5 %

≤

80 mA

LVPECL 100 K ( 50

Ω

to 1.3 V )

45/55...55/45 %

≤

0.5 ns

≥

2.22 V/

≤

1.7 V

≤

0.5 ps

≤

3.0 ps

180° phase shifted

≤

10 ms @ 3.15 V

FREQUENCY STABILITY

type

DFV S8-MLECPI

temperature model

range

code

100B15

0 to 70°C 100B25

100B50

temp.

≤

± 15

≤

± 25

≤

± 50

detailed tolerances [ ppm ]

stability versus:

@ 25°C

Vcc

load

≤

± 10

≤

±3

≤

± 0.5

ageing

≤

±2

pulling range

positive function

≥

± 100

control

voltage

1.65 V

1.35 V

Remarks

input impedance

≥

10 kΩ,

modulation bandwidth

≥

10 kHz @ -3dB

ageing is 1 year at 25°C

type + option code + frequency + model code

DFV S8-MLECP 622.08 MHz 100B15

Preliminary data sheet is subject to change without notice

ORDERING CODE

Example

REMARK

TYPE

DFV S8-MLECP

REV

DATE

13.10.2001

CHECKED

NE/MYP
