Part Number

Search

503159-1410

Description
1.50mm (.059") Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Through Hole, Vertical, without Peg, 14 Circuits
CategoryThe connector    The connector
File Size201KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

503159-1410 Online Shopping

Suppliers Part Number Price MOQ In stock
503159-1410 - - View Buy Now

503159-1410 Overview

1.50mm (.059") Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Through Hole, Vertical, without Peg, 14 Circuits

503159-1410 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeBOARD CONNECTOR
Base Number Matches1
This document was generated on 04/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Description:
5031591410
Active
1.50mm (.059") Pitch CLIK-Mate™ Wire-to-Board PCB Receptacle, Single Row,
Through Hole, Vertical, without Peg, 14 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-503159-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Product Name
PCB Receptacles
503159
Wire-to-Board
CLIK-Mate™
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
14
Beige
30
No
Yes
Yes
Yes
Copper Alloy
Tin
Tin
1
Vertical
No
Yes
0.062 In
1.60 mm
Tray
0.059 In
1.50 mm
Yes
Yes
No
-25°C to +85°C
Through Hole
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
503159
Mates
502578
Termin
Electrical
Current - Maximum per Contact
Voltage - Maximum
2A
100V
Material Info
Reference - Drawing Numbers
Product Specification

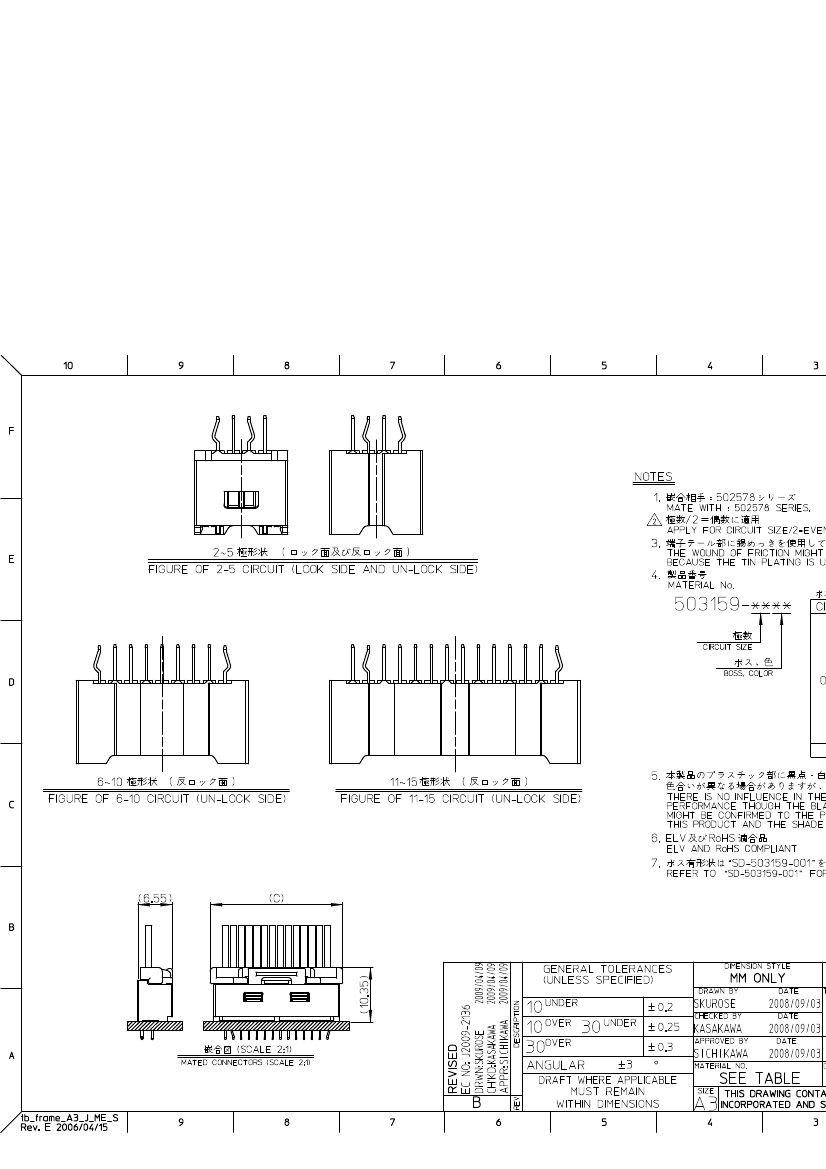

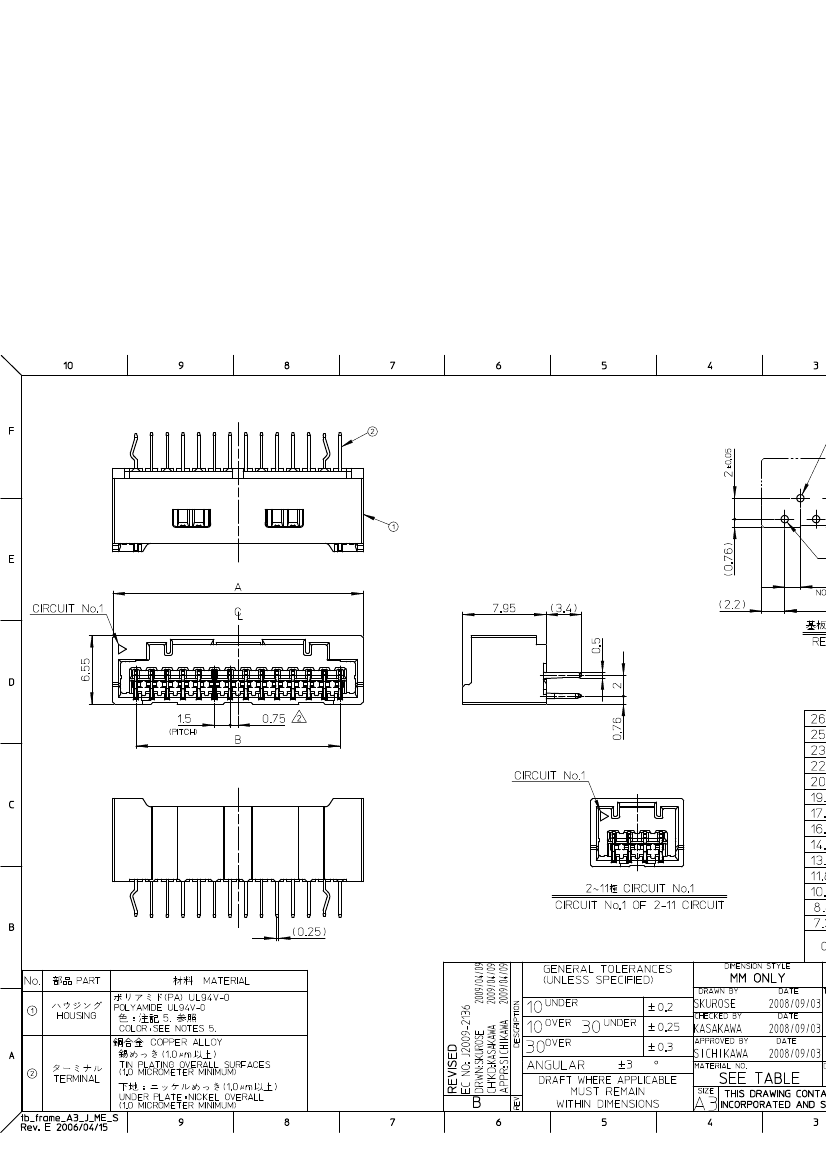

Sales Drawing
PS-503159-001, RPS-503159-001, RPS-503159-003
SD-503159-002
This document was generated on 04/07/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
