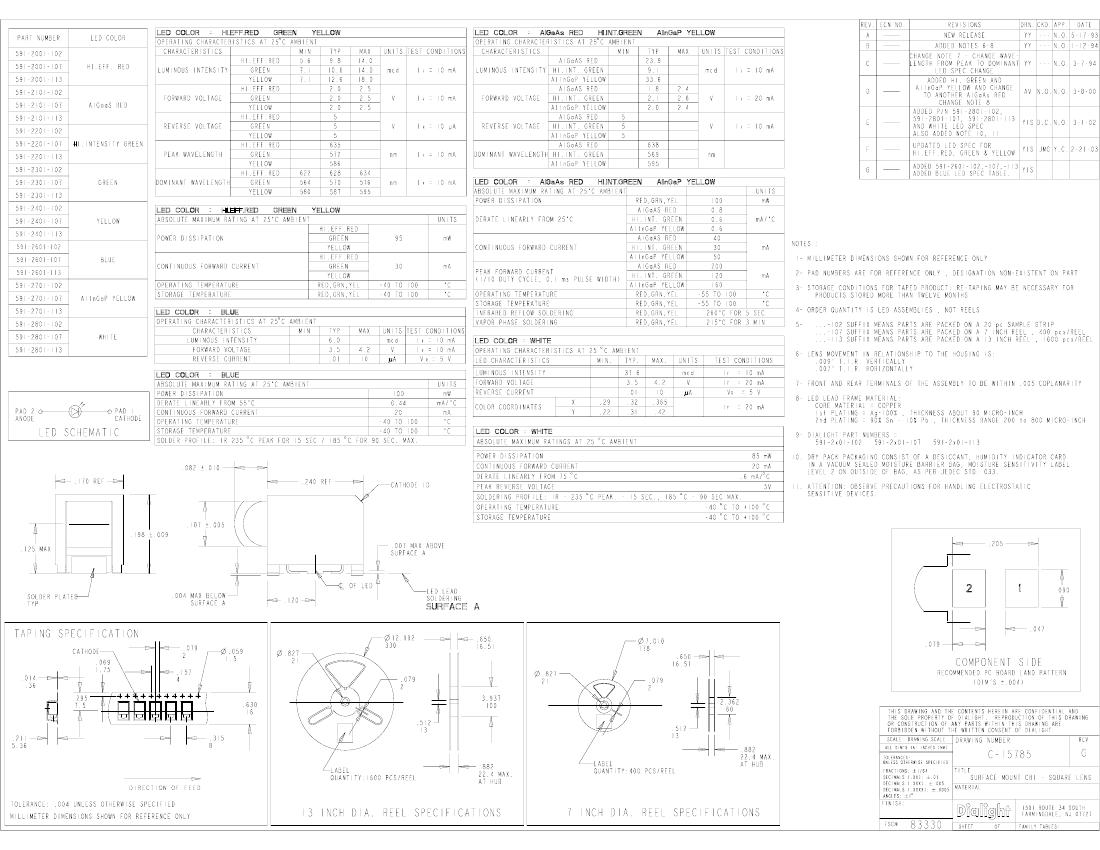

Preview

591-2301113: DescriptionSingle Color LED, Green, 2.72mm, SURFACE MOUNT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size189KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

591-2301113 Overview

Single Color LED, Green, 2.72mm, SURFACE MOUNT PACKAGE-2

591-2301113 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	compli
color	GREEN
color@wavelength	Gree
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.6 V
JESD-609 code	e0
minimum luminous intensity	40 cd
Nominal luminous intensity	10.6 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5.03 mm
method of packing	TAPE AND REEL 13"
peak wavelength	572 nm
shape	ROUND
size	2.72 mm
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	3.2 mm
perspective	20 deg
Base Number Matches	1

Preview

Download Datasheet

View All

591-2301113 Related Products

	591-2301113	591-2401113	591-2101113	591-2001113
Description	Single Color LED, Green, 2.72mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Yellow, 2.72mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Red, 2.72mm, SURFACE MOUNT PACKAGE-2	Single Color LED, High Efficiency Red, 2.72mm, SURFACE MOUNT PACKAGE-2
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	compli	compliant	compliant	compliant
color	GREEN	YELLOW	RED	HIGH EFFICIENCY RED
color@wavelength	Gree	Yellow	Red	Orange-Red
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.04 A	0.03 A
Maximum forward voltage	2.6 V	2.6 V	2.6 V	2.6 V
JESD-609 code	e0	e0	e0	e0
minimum luminous intensity	40 cd	40 cd	40 cd	40 cd
Nominal luminous intensity	10.6 mcd	12.6 mcd	23.9 mcd	9.8 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	5.03 mm	5.03 mm	5.03 mm	5.03 mm
method of packing	TAPE AND REEL 13"	TAPE AND REEL 13\"	TAPE AND REEL 13\"	TAPE AND REEL 13"
shape	ROUND	ROUND	ROUND	ROUND
size	2.72 mm	2.72 mm	2.72 mm	2.72 mm
surface mount	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	3.2 mm	3.2 mm	3.2 mm	3.2 mm
perspective	20 deg	20 deg	40 deg	20 deg
Base Number Matches	1	1	1	1
peak wavelength	572 nm	586 nm	-	635 nm
