87832-4016 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87832-4016

87832-4016: Description2.00mm (.079) Pitch Milli-Grid Header, Surface Mount, Vertical, Shrouded, Leadfree 40 Circuits, 0.38mm (15F) Gold (Au) Plating, with Locking Windows; CategoryThe connector The connector; File Size344KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87832-4016 Overview

2.00mm (.079) Pitch Milli-Grid Header, Surface Mount, Vertical, Shrouded, Leadfree 40 Circuits, 0.38mm (15F) Gold (Au) Plating, with Locking Windows

87832-4016 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
Other features	TUBE PACKAGE
body width	0.248 inch
subject depth	0.252 inch
body length	1.679 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
maximum insertion force	2.0016 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	87832
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2418 mm
Plating thickness	15u inch
polarization key	CTR W/GUIDE SLOTS
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
Evacuation force-minimum value	.3892 N

Preview

Download Datasheet

View All

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0878324016

Active

milligrid

2.00mm (.079") Pitch Milli-Grid™ Header, Surface Mount, Vertical, Shrouded, Lead-

free, 40 Circuits, 0.38µm (15µ") Gold (Au) Plating, with Locking Windows, Center

Polarization Slot, Cap, without PCB Locator, Tube

Documents:

3D Model

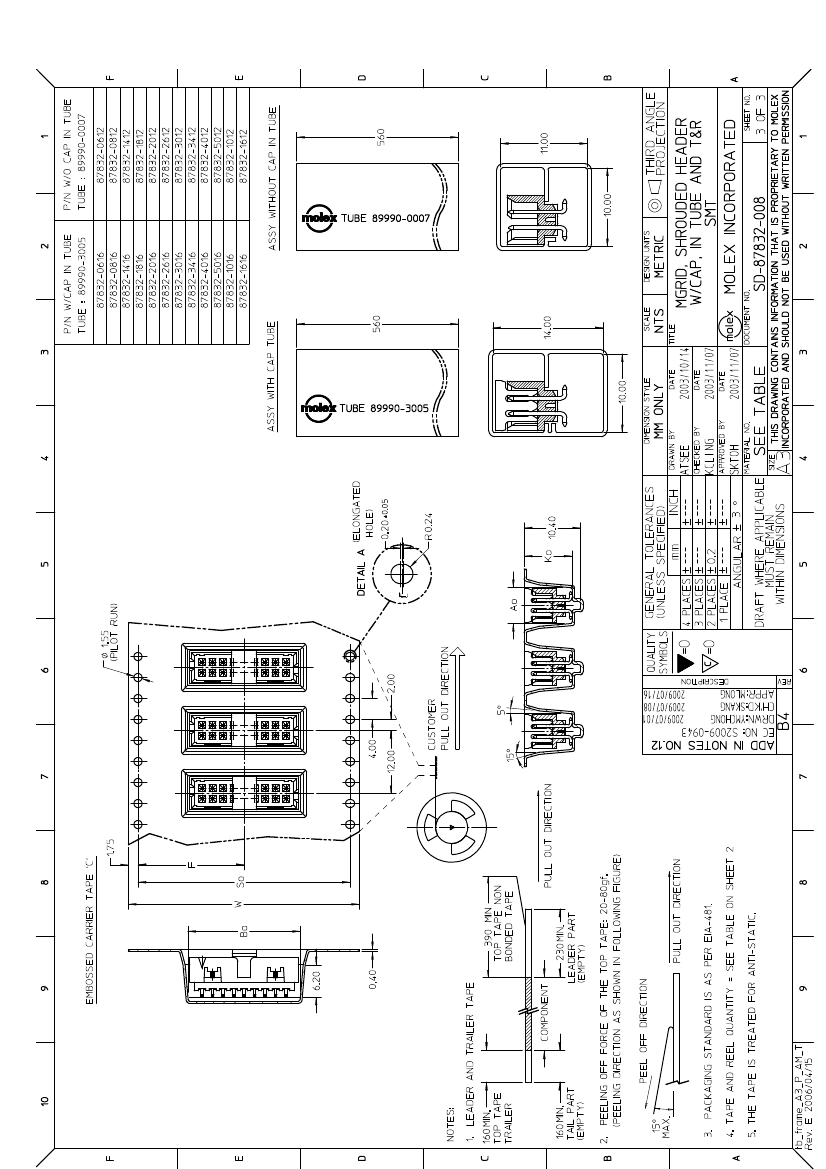

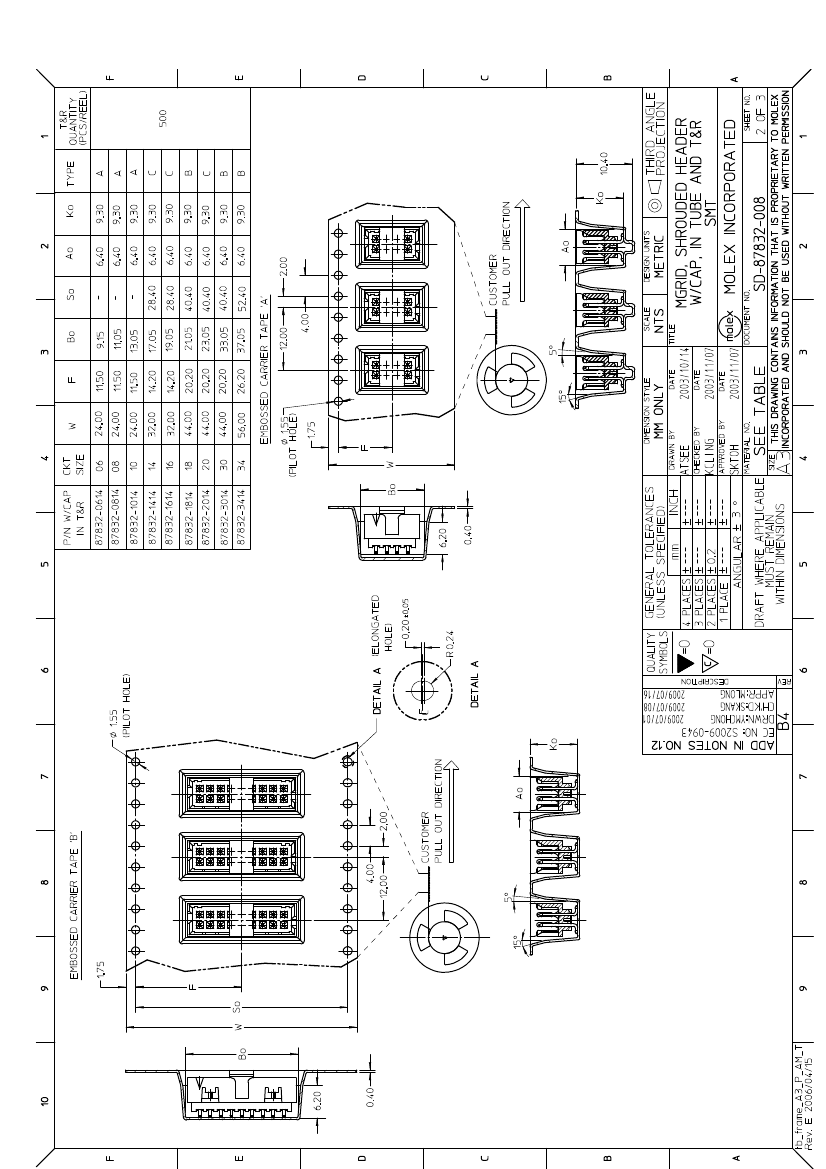

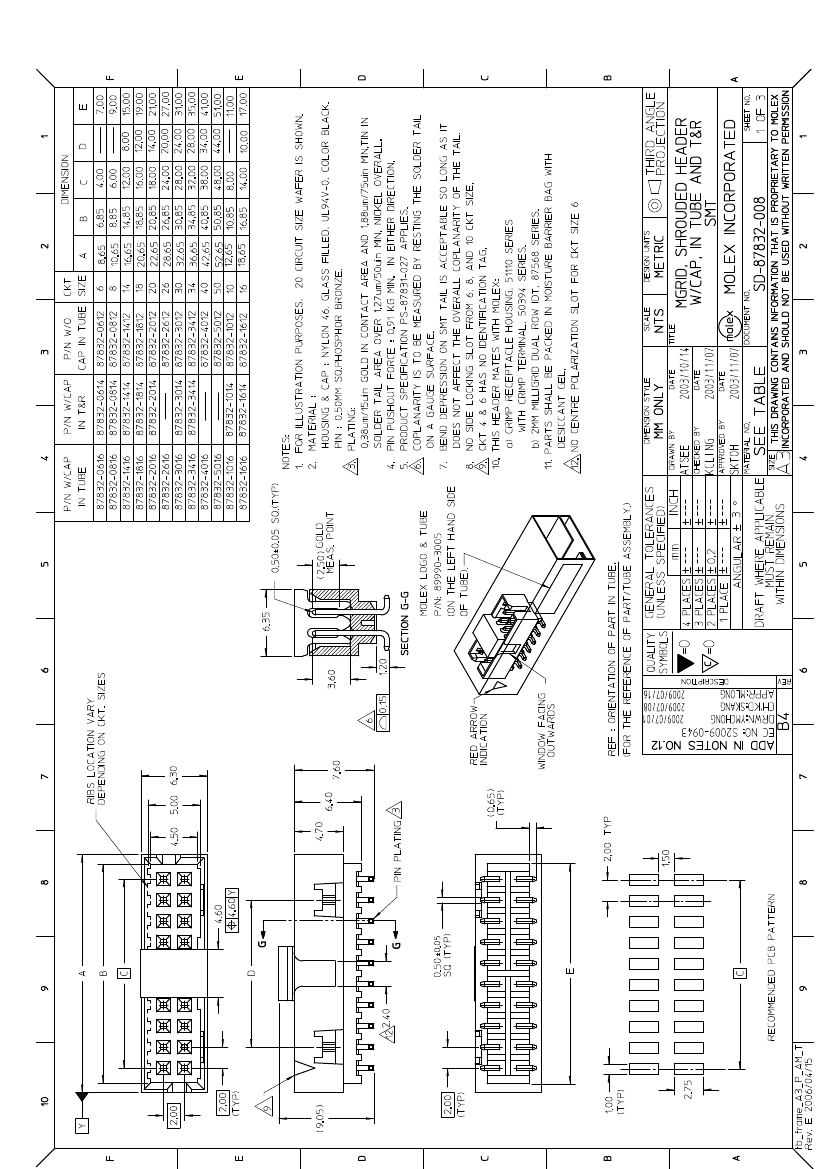

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Comments

Overview

Product Name

PCB Headers

87832

Wire-to-Board

With Cap|Contact Molex for application in automotive

industry

milligrid

Milli-Grid™

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Revi

Need mo

environm

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Black

94V-0

Yes

Phosphor Bronze

Gold

Tin

Nylon

Vertical

None

Tube

0.079 In

2.00 mm

0.079 In

2.00 mm

0.38

1.88

Side Slots (2)

Fully

Email pro

For a mu

Complian

Please vi

non-prod

87832S

Mates

50394

Wire-to

to-Boar

Board T

79108

Throug
