Part Number:
Status:
Description:
1120275015
Active
DirectLink™ SW1000 Software Drivers for Siemens S5, S7, TI - Full tags - USB Dongle
Protection
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Comments
Software and Development Kits
112027
SW1000 integrates a powerful Console for
configuration, diagnostic with test tools, and data
servers (OPC DA, SuiteLink/FastDDE, library DLL).
Ethernet TCP/IP: . - Siemens - Industrial Ethernet . .
Serial: . - Siemens - AS511, PPI/PPI+, TI-Dir
Yes
Yes
Client / Server, Master
Windows 7, Windows Server 2003, Windows Server
2008, Windows Vista, Windows XP
Direct-Link®
EtherNet TCP/IP, Serial
N/A
N/A
EU RoHS
ELV and
Complia
REACH S
Not Revi
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
DLL/API Available
Engineering Console
Functionality
Operating System
Product Name
Protocol
Source Code
Specification Compliance
Please vi
non-prod
Search
112027
Material Info
Old Part Number
DRL-SIE-SWF-U
Reference - Drawing Numbers
Sales Drawing
DRL-SIE-SWF-*
This document was generated on 05/18/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Direct-Link™ communication drivers provide data
acquisition between Windows based applications and
industrial devices connected to Ethernet TCP/IP and
Serial networks.
21 Jan. 10
DW200594
Direct-Link™ SW1000
Economical and Reliable Industrial Communications
Features
•
Well suited for embedded and
light architecture (laptop,
panel PC, MMI)
•
Uses Standard PC resources
Ethernet port
Serial port (COM1, COM2)
•
100% software solution
•
Data Servers:
OPC DA v3.0, 2.05 and 1.0a
Wonderware DAServer
Wonderware I/O
(SuiteLink/FastDDE)
ActiveX Control
Library DLL

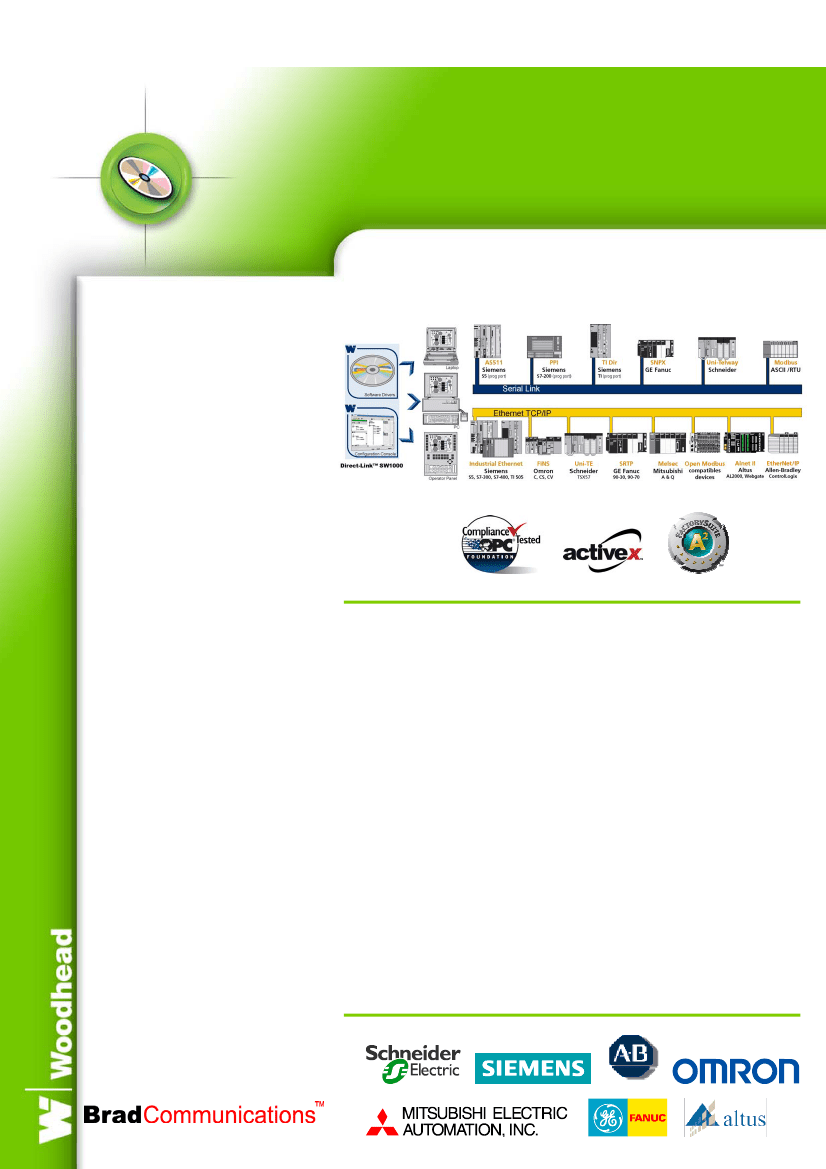

Overview
Direct-Link™ SW1000
is a complete software package designed to connect your
computer to Industrial Ethernet TCP/IP and Serial networks.
Direct-Link™ SW1000 is well adapted for embedded environments and it is used
by operator interface manufacturers and OEM equipment manufacturers needing
to make their computerized systems communicate.
Direct-Link™ SW1000 is ideally suited for small and medium-sized applications
with low time constraints. It easily adapts to the light architectures of laptops,
operator interfaces and workstations. Widely adopted in Industry, Direct-Link™
solutions are used for technical management in the building sector, electrical
installations, tests and measurement.
To collect data, SW1000 uses existing computer resources (Ethernet port, COM
ports) to connect a broad range of control and sensor devices from Allen-Bradley,
Siemens, Schneider, and many others.
•
Supports multi Ethernet TCP/IP
protocols simultaneously
•
Protection
Software key
Dongle (Parallel or USB)
•
Database (32Kbits, 32 Kwords)
for Server mode to exchange
data with applications
Supported OS
•
Windows 32-bits
(2003 Server / XP SP2 / 2000
SP4 / NT 4.0 SP6)
Economical
and
easy-to-use,
the SW1000 package is designed for Windows
PC-Based applications (HMI, SCADA, MES, RDBM, custom developments, etc),
which require reliable data exchange with plant floor.
Available in Windows 2003 server, XP, 2000 and NT 4.0 environments, Direct-
Link™ SW1000 integrates a powerful Console for configuration, diagnostic and
test tools and data servers (OPC DA, DAServer, SuiteLink/FastDDE, ActiveX
control, library DLL), that provide information for client applications
.
Compatible with
Direct-Link™ SW1000

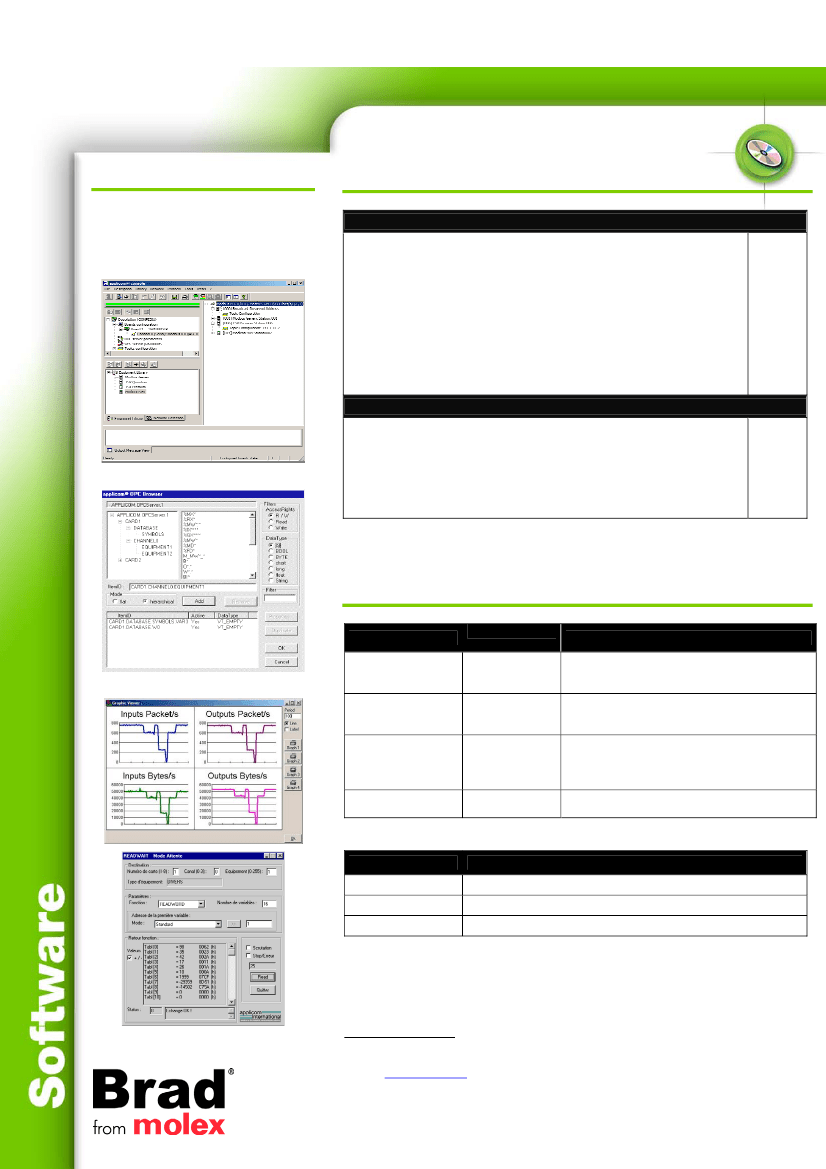

Software tools
Direct-Link™ products lie in effective
software tools enabling fast integration
of industrial communication into your
applications.
Protocols (all included in the package)
Ethernet TCP/IP
-
All protocols can run simultaneously
•
•
•
•
•
•
•
•
•
Serial
•
•
•
•
•
•
New
Allen-Bradley - Logix5000 messaging for (ControlLogix and
FlexLogix)
Altus - Alnet II (AL2000 and WebGate Series)
Alstom - SRTP (Alspa C80-35 and C80-75 Series)
GE Fanuc - SRTP (90-30 and 90-70 Series)
Mitsubishi - Melsec (A and Q Series)
Omron - FINS (C, CV and CS Series)
Schneider - Open Modbus TCP/UDP (Premium and Quantum Series)
Schneider - Uni-TE (Micro and Premium)
Siemens - Industrial Ethernet (S5, S7 and TI-505 Series)
C/S
(1)(2)
C/S
C/S
C/S
C/S
C/S
C/S
C/S
C/S
- Configuration Software -
Modbus ASCII & RTU
GE Fanuc – SNPX (90-xx and 80-xx Series)
Schneider – Uni-Telway (TSX 7 Series)
Siemens – AS511 (Simatic S5 Series)
Siemens – PPI/PPI+ (Simatic S7-200 Series)
Siemens – Ti-Dir (Simatic TI-505 Series)
M:
Master -
S:
Slave -
M/S:
Master/Slave -
C/S:
Client/Server -
C:
Client
(1): Library DLL and DAServer are not supported with the Logix5000 messaging.
(2): Server mode via PCCC messaging
M/S
M
S, C/S
M
M
M
Ordering Information
Part Number
- OPC Browser -
DRL-ALL-SWL-P
DRL-ALL-SWL-S
DRL-ALL-SWL-U
DRL-ALL-SWF-P
DRL-ALL-SWF-S
DRL-ALL-SWF-U
DRL-SIE-SWF-P
DRL-SIE-SWF-S
DRL-SIE-SWF-U
DRL-UPG-SWF
SAP
1120270004 (P)
1120270005 (S)
1120270006 (U)
1120270001 (P)
1120270002 (S)
1120270003 (U)
1120270013 (P)
1120270014 (S)
1120270015 (U)
1120270010
Product description
Direct-Link™ SW1000 software package.
All protocols and data servers included.
Ethernet TCP/IP
1000 tags
+ Serial
Full tags.
Direct-Link™ SW1000 software package.
All protocols and data servers included.
Ethernet TCP/IP
Full tags
+ Serial
Full tags.
Direct-Link™ SW1000 software package.
Siemens protocols (S5, S7, TI) and data
servers included.
Ethernet TCP/IP
Full tags
+ Serial
Full tags.
Direct-Link™ SW1000 upgrade from
1000
tags
to
Full tags
(*): to order, replace X with the corresponding letter below.
Replace
X
P
S
U
Type of protection
Dongle for parallel port (small format)
Software Key
Dongle for USB port (not supported on NT 4)
The performance of SW1000 depends on the operating system and the characteristics of your
PC (processor, memory, etc). If in the future, your application requires increased performance,
®
it is very easy to migrate SW1000 to
applicom
solutions based on intelligent network
interface cards (on-board processor managing industrial protocols, multi communication
channels up to 32, embedded electrical interfaces RS232/RS422/RS485/Current loop).
- Network Diagnostics & Test Tools -
Other related products: IP67/IP20 Ethernet switches, Intelligent Ethernet card and gateways,
Ethernet I/O for control/command.
