BR7070R

Description
Pushbutton Switch, DPDT, Momentary, 1A, 28VDC, Solder Terminal, Panel Mount-threaded
CategoryMechanical and electronic products    switch
File Size75KB，1 Pages
ManufacturerEaton
Download Datasheet Parametric View All

BR7070R Overview

Pushbutton Switch, DPDT, Momentary, 1A, 28VDC, Solder Terminal, Panel Mount-threaded

BR7070R Parametric

Parameter NameAttribute value
MakerEaton
Reach Compliance Codecompliant
ECCN codeEAR99
Actuator typePLUNGER
Other featuresEMI/RFI SHIELDED
body height19.3 mm
Body length or diameter11.9 mm
Contact (AC) maximum rated R load1A@125VAC
Maximum contact current (AC)1 A
Maximum contact current (DC)1 A
Contact (DC) maximum rated R load1A@28VDC
Maximum contact voltage (AC)125 V
Maximum contact voltage (DC)28 V
Electrical life10000 Cycle(s)
Manufacturer's serial numberBR7070
Installation featuresPANEL MOUNT-THREADED
Maximum operating force12.21 N
surface mountNO
Switch actionMOMENTARY
switch functionDPDT
Switch typePUSHBUTTON SWITCH
Termination typeSOLDER

Preview

Download Datasheet

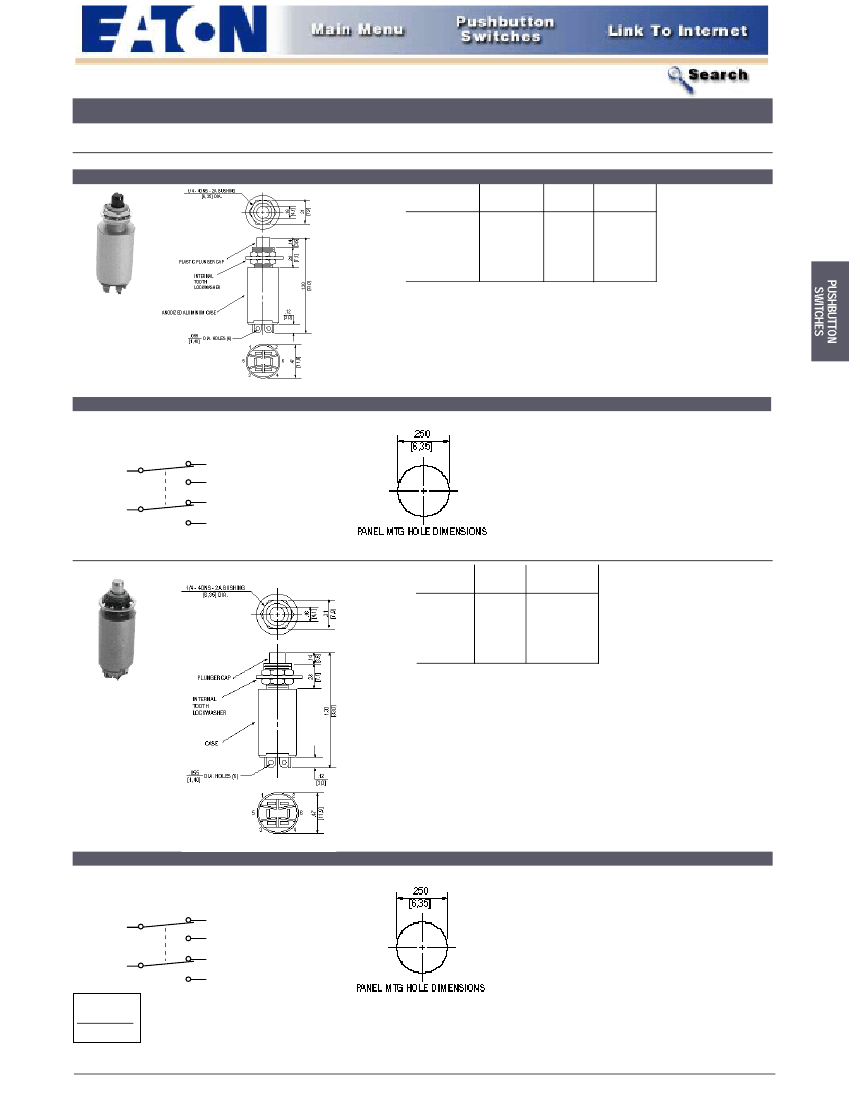

PUSHBUTTON SWITCHES
Sub-Miniature Pushbutton Switches
SERIES TYPE
APPROXIMATE DIMENSIONS
Catalog
Number
B7070
B7070R
B7070B
B7070BR
Militar y
Part Number
M8805/95-001
M8805/95-002
M8805/95-003
M8805/95-004
SELECTION TABLES
Case
Color
Clear
Clear
Black
Black
Button
Color
Black
Red
Black
Red
B7070
TwoPole
Solder Terminals
SCHEMATIC DIAGRAMS––B7070
PANEL CUT-OUT
Catalog
Number
BR7070
Case
Color
Clear
Button
Color
Black
Red
Black
Red
BR7070R
M88002
Clear
BR7070B
M88053
Black
BR7070BR
M8804
Black
BR7070
Two Pol e
*
Solder Terminals
* EMI/RFI Shielded
SCHEMATIC DIAGRAMS––BR7070
PANEL CUT-OUT
STANDARD
0.00 = inches
[0,0] = mm
Dimensions for reference only.
