A-42404-10A5: Description10 CONTACT(S), MALE, POWER CONNECTOR, SOLDER; CategoryThe connector The connector; File Size313KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

A-42404-10A5 Overview

10 CONTACT(S), MALE, POWER CONNECTOR, SOLDER

A-42404-10A5 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	BLIND MATE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)/MATTE TIN (100) OVER NICKEL (50)
Contact completed and terminated	GOLD (30) OVER NICKEL (50)/MATTE TIN (100) OVER NICKEL (50)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4/e3
MIL compliance	NO
Manufacturer's serial number	A-42404
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYAMIDE66
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-2
Base Number Matches	1

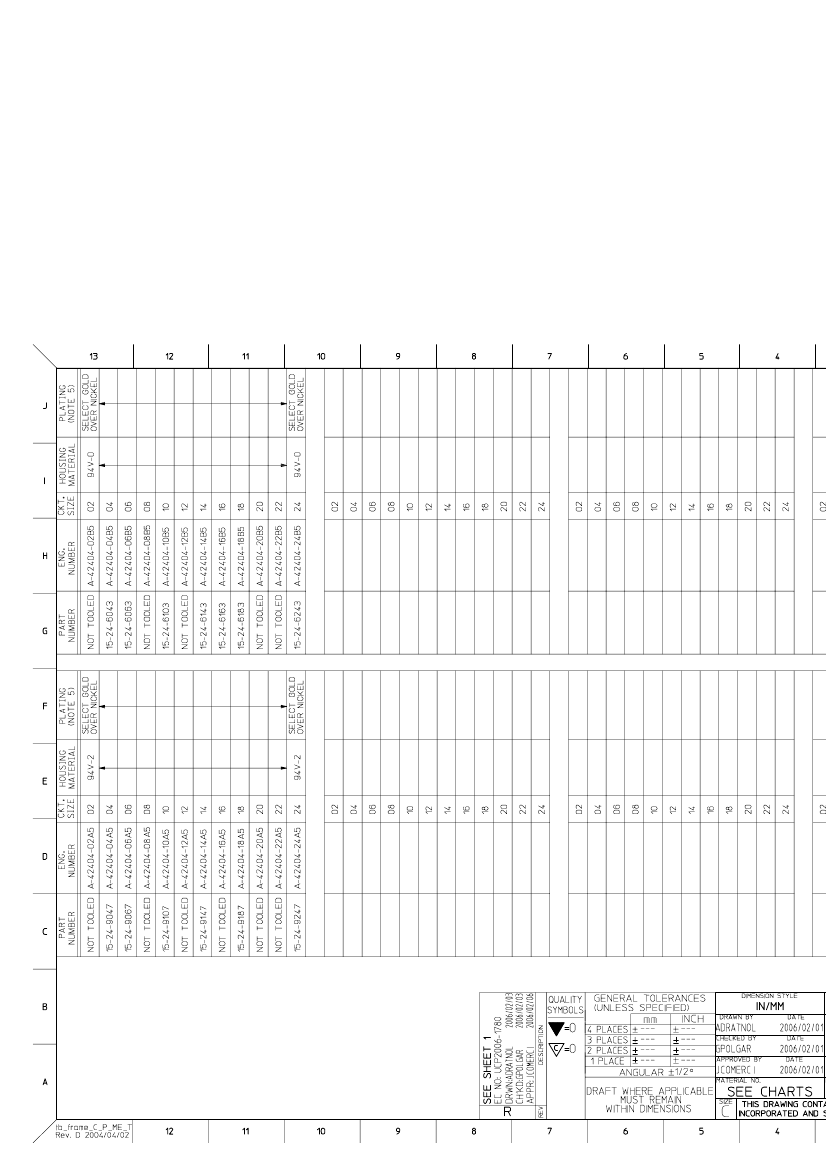

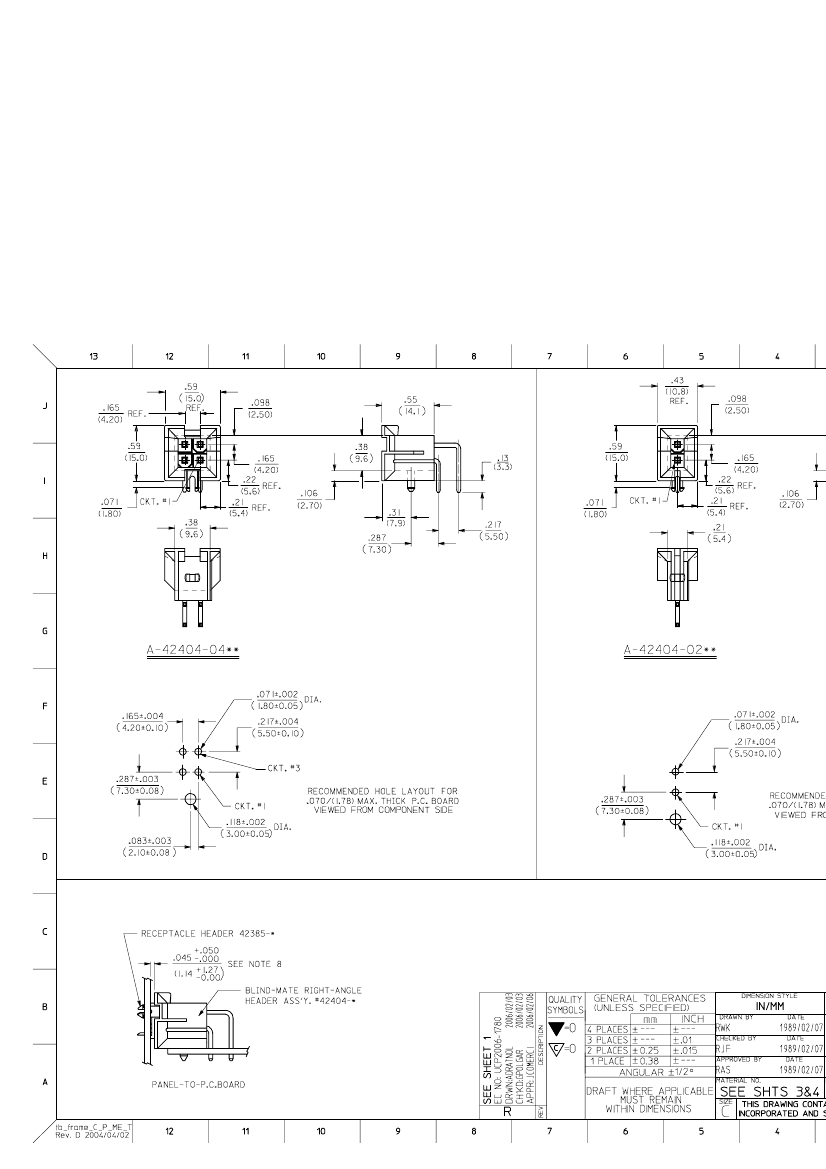

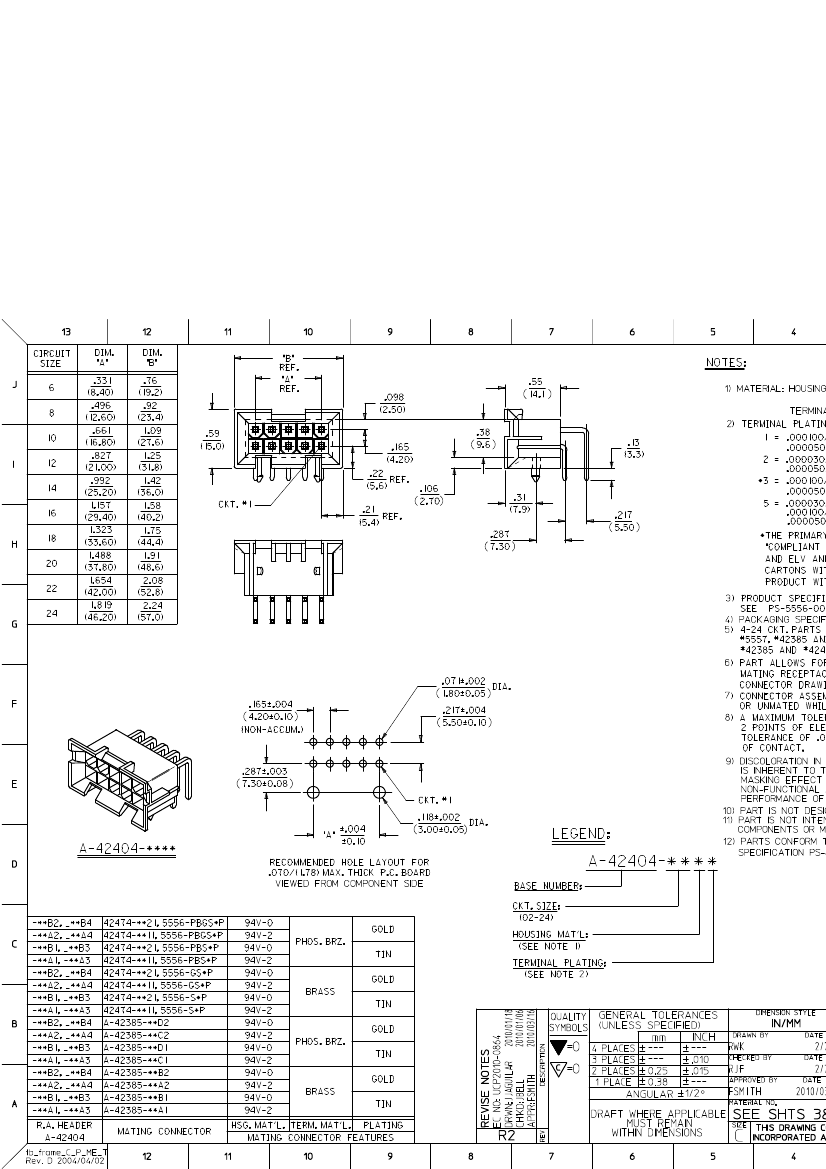

Preview

Download Datasheet

View All

This document was generated on 05/11/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0015249107

Active

4.20mm (.165") Pitch Mini-Fit BMI™ Header, Dual Row, Right Angle, with Snap-in

Plastic Peg PCB Lock, 10 Circuits, PA Polyamide Nylon 6/6, UL 94V-2, with Select

Gold (Au) Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-5556-002 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Comments

PCB Headers

42404

Board-to-Board, Wire-to-Board

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 Mini-Fit Plus HCS™

Crimp Terminal Crimpted to to 16 AWG wire. . See

Molex product specification PS-45750-001 for additional

current de-rating information.

Mini-Fit BMI™

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Natural

94V-2

Yes

Brass

Gold

Tin

Nylon

Right Angle

0.130 In

3.30 mm

Yes

0.070 In

1.80 mm

Tray

0.165 In

4.20 mm

0.76

100

2.50

Yes

Email pro

For a mu

Complian

Please vi

non-prod

42404S

Mates

15-06-0

Recept

Vertica
