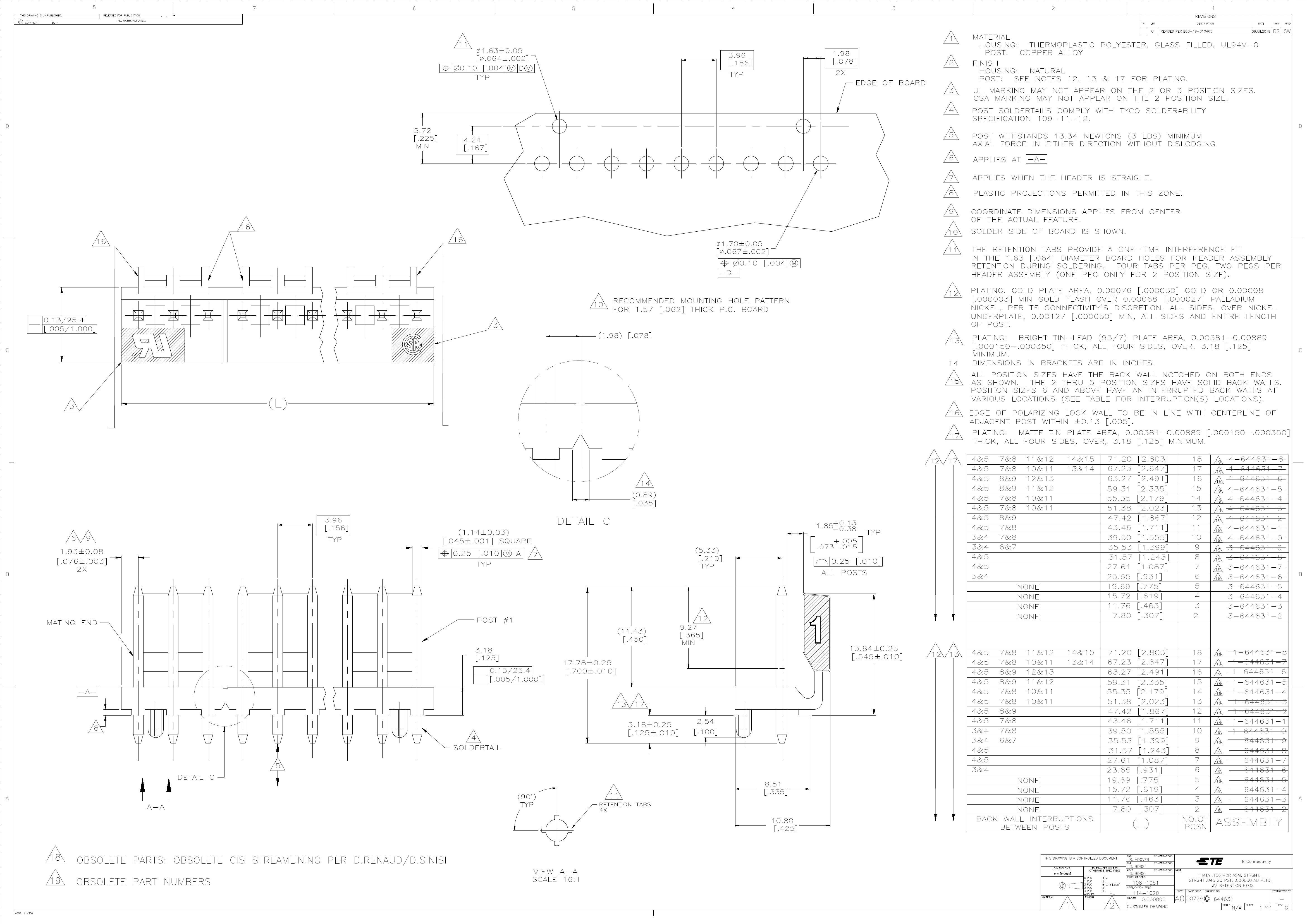

8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | POLARIZED |
| Board mount options | PEG |
| body width | 0.425 inch |
| subject depth | 0.545 inch |
| body length | 1.243 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 2200VAC V |
| Durability | 25 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 8.0064 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | NATURAL |
| insulator material | GLASS FILLED POLYESTER |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | 644631 |
| Plug contact pitch | 0.156 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation option 2 | FRICTION LOCK |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 30u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 7 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.125 inch |
| Terminal pitch | 3.96 mm |
| Termination type | SOLDER |
| Total number of contacts | 8 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | 8.896 N |
| 644631-8 | 644631-3 | ECS-120-8-36B-EM-TR | ECS-120-8-36Q-RKL-TR | 644631-2 | 644631-4 | 644631-6 | |
|---|---|---|---|---|---|---|---|
| Description | 8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | 3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | Parallel - Fundamental Quartz Crystal, 12MHz Nom, SMD, 4 PIN | Parallel - Fundamental Quartz Crystal, | 2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | 4 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | 6 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Other features | POLARIZED | POLARIZED | TR, 7 INCH | AEC-Q200 | POLARIZED | POLARIZED | POLARIZED |
| JESD-609 code | e0 | e0 | e4 | e4 | e0 | e0 | e0 |
| Maximum operating temperature | 105 °C | 105 °C | 70 °C | 70 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | -20 °C | -10 °C | -55 °C | -55 °C | -55 °C |
| Is it lead-free? | Contains lead | Contains lead | - | - | Contains lead | Contains lead | Contains lead |
| Maker | TE Connectivity | TE Connectivity | - | - | TE Connectivity | TE Connectivity | TE Connectivity |
| ECCN code | EAR99 | EAR99 | - | - | EAR99 | - | EAR99 |
| Board mount options | PEG | PEG | - | - | PEG | PEG | PEG |
| body width | 0.425 inch | 0.425 inch | - | - | 0.425 inch | 0.425 inch | 0.425 inch |
| subject depth | 0.545 inch | 0.545 inch | - | - | 0.545 inch | 0.545 inch | 0.545 inch |
| body length | 1.243 inch | 0.463 inch | - | - | 0.307 inch | 0.619 inch | 0.931 inch |
| Body/casing type | PLUG | PLUG | - | - | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | - | - | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | GOLD (30) | - | - | GOLD (30) | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | MALE | MALE | - | - | MALE | MALE | MALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | - | - | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | - | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | - | - | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | - | - | NO | NO | NO |
| Dielectric withstand voltage | 2200VAC V | 2200VAC V | - | - | 2200VAC V | 2200VAC V | 2200VAC V |
| Durability | 25 Cycles | 25 Cycles | - | - | 25 Cycles | 25 Cycles | 25 Cycles |
| Filter function | NO | NO | - | - | NO | NO | NO |
| IEC compliance | NO | NO | - | - | NO | NO | NO |
| maximum insertion force | 8.0064 N | 8.0064 N | - | - | 8.0064 N | 8.0064 N | 8.0064 N |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | - | - | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| Insulator color | NATURAL | NATURAL | - | - | NATURAL | NATURAL | NATURAL |
| insulator material | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | - | - | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER |
| MIL compliance | NO | NO | - | - | NO | NO | NO |
| Manufacturer's serial number | 644631 | 644631 | - | - | 644631 | 644631 | 644631 |
| Plug contact pitch | 0.156 inch | 0.156 inch | - | - | 0.156 inch | 0.156 inch | 0.156 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | - | - | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | - | - | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | - | - | LOCKING | LOCKING | LOCKING |
| Installation option 2 | FRICTION LOCK | FRICTION LOCK | - | - | FRICTION LOCK | FRICTION LOCK | FRICTION LOCK |
| Installation method | STRAIGHT | STRAIGHT | - | - | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | - | - | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | - | - | ONE | ONE | ONE |
| PCB row number | 1 | 1 | - | - | 1 | 1 | 1 |
| Number of rows loaded | 1 | 1 | - | - | 1 | 1 | 1 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | - | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | - | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Plating thickness | 30u inch | 30u inch | - | - | 30u inch | 30u inch | 30u inch |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | - | - | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 7 A | 7 A | - | - | 7 A | 7 A | 7 A |
| Guideline | UL, CSA | UL, CSA | - | - | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | - | - | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.125 inch | 0.125 inch | - | - | 0.125 inch | 0.125 inch | 0.125 inch |
| Terminal pitch | 3.96 mm | 3.96 mm | - | - | 3.96 mm | 3.96 mm | 3.96 mm |
| Termination type | SOLDER | SOLDER | - | - | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 8 | 3 | - | - | 2 | 4 | 6 |
| UL Flammability Code | 94V-0 | 94V-0 | - | - | 94V-0 | 94V-0 | 94V-0 |
| Evacuation force-minimum value | 8.896 N | 8.896 N | - | - | 8.896 N | 8.896 N | 8.896 N |
