Transient Voltage Suppressors
P4KE
Transient Voltage Suppressors (TVS) Data Sheet
Features
■
■
■
■
■
■
■
■
■
■
Glass passivated junction
Low inductance
Excellent clamping capability
400W peak pulse power capability at 10/1000μs waveform,
repetition rate (duty cycle): 0.01%
Fast response time
Typical I
R
less than 1μA above 12V
High Temperature soldering guaranteed: 265℃/10 seconds/.375″,
(9.5mm) lead length, 5lbs (2.3kg) tension
Plastic package has underwriters laboratory flammability 94V-0
Meets MSL level 1, per J-STD-020
Safety certification: UL: E244458
Mechanical Data
■
■
■
■
■
Case: JEDEC DO-41 Moulded plastic
Terminal: Axial leads, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode except bi-directional models
Mounting Position: Any
Weight: 0.33g
Applications
■
I/O interface
■
AC/DC power supply
■
Low frequency signal transmission line (RS232, RS485, etc.)
Maximum Ratings and Characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.
Rating
Peak pulse power dissipation at 10/1000μs waveform
(Note1, Note2, Fig.1)
Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3)
Steady state power dissipation at T
A
=50℃ (Fig.5)
Peak forward surge current, 8.3ms single half sine-wave
superimposed on rated load, (JEDEC Method) (Note3, Fig.6)
Operating junction and Storage Temperature Range.
Typical thermal resistance junction to lead
Typical thermal resistance junction to ambient
Symbol
P
PPM
I
PPM
P
M(AV)
I
FSM
T
J
,T
STG
R
θJL
R
θJA
Value
Minimum 400
See Table
1.5
40
-65 to +150
60
100
Units
Watts
Amps
Watts
Amps
℃
℃/W
℃/W
Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
=25℃ per Fig.2.
2. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum.
www.yageo.com
Apr. 29, 2019 V.0
Circuit Protection
Product Specification
3
7
Transient Voltage Suppressors
Dimensions (DO-204AL/DO-41)
P4KE
Millimeters
Inches
Min.
1.000
0.160
0.080
0.028
Max.
-
0.205
0.107
0.034
Cathode Band
d
DIA.
s
DIA.
Symbol
Min.
L
T
25.40
4.10
2.00
0.71
Max.
-
5.20
2.70
0.86
L
T
L
d
s
Part Number Code
P4KE XXX C A
5% V
BR
Voltage Tolerance
Bidirectional
V
BR
Voltage
Series Code
Ordering Code for different package
Box package: Add suffix “/B” at the end of the part number, such as P4KE10A/B
Reel package: Add suffix “/TR13” at the end of the part number, such as P4KE68CA/TR13
Electrical Characteristics (T
A
=25℃)
Part Number
Reverse
Stand-Off
Voltage
V
RWM
(V)
5.80
6.40
7.02
7.78
8.55
9.40
10.20
11.10
12.80
13.60
15.30
17.10
18.80
20.50
Breakdown
Voltage
@I
T
V
BR
(V)
6.45~7.14
7.13~7.88
7.79~8.61
8.65~9.55
9.50~10.50
10.50~11.60
11.40~12.60
12.40~13.70
14.30~15.80
15.20~16.80
17.10~18.90
19.00~21.00
20.90~23.10
22.80~25.20
Test
Current
I
T
(mA)
10
10
10
1
1
1
1
1
1
1
1
1
1
1
Maximum
Clamping
Voltage
@I
PP
V
C
(V)
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.2
27.7
30.6
33.2
Peak
Pulse
Current
I
PP
(A)
39.0
36.3
33.9
30.6
28.3
26.3
24.6
22.5
19.3
18.2
16.1
14.8
13.4
12.3
Reverse
Leakage
@V
RWM
I
R
(μA)
1000
500
200
50
10
5
5
1
1
1
1
1
1
1
www.yageo.com
Apr. 29, 2019 V.0
Unidirectional
P4KE6.8A
P4KE7.5A
P4KE8.2A
P4KE9.1A
P4KE10A
P4KE11A
P4KE12A
P4KE13A
P4KE15A
P4KE16A
P4KE18A
P4KE20A
P4KE22A
P4KE24A
Bidirectional
P4KE6.8CA
P4KE7.5CA
P4KE8.2CA
P4KE9.1CA
P4KE10CA
P4KE11CA
P4KE12CA
P4KE13CA
P4KE15CA
P4KE16CA
P4KE18CA
P4KE20CA
P4KE22CA
P4KE24CA
Circuit Protection
Product Specification
5
7
Transient Voltage Suppressors
P4KE
Ratings and Characteristic Curves (T
A
=25℃ unless otherwise noted)

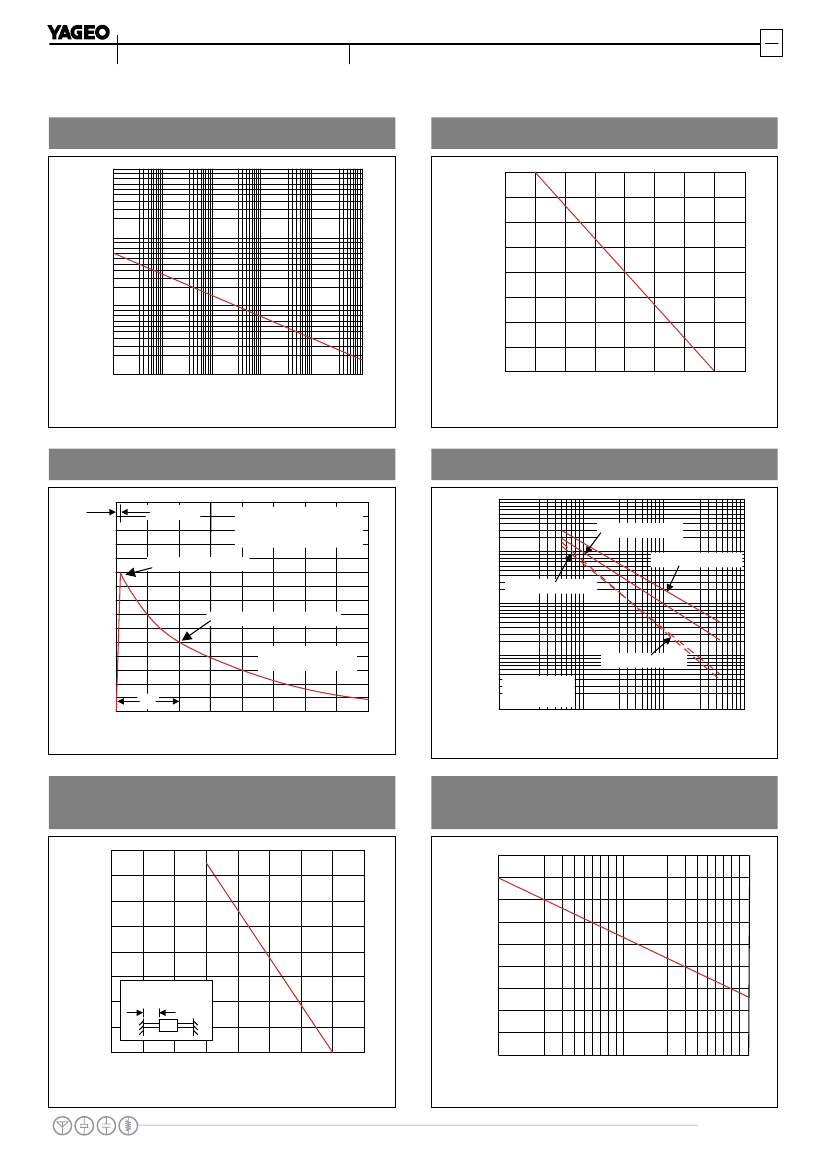

Figure 1. Peak Pulse Power Rating Curve
