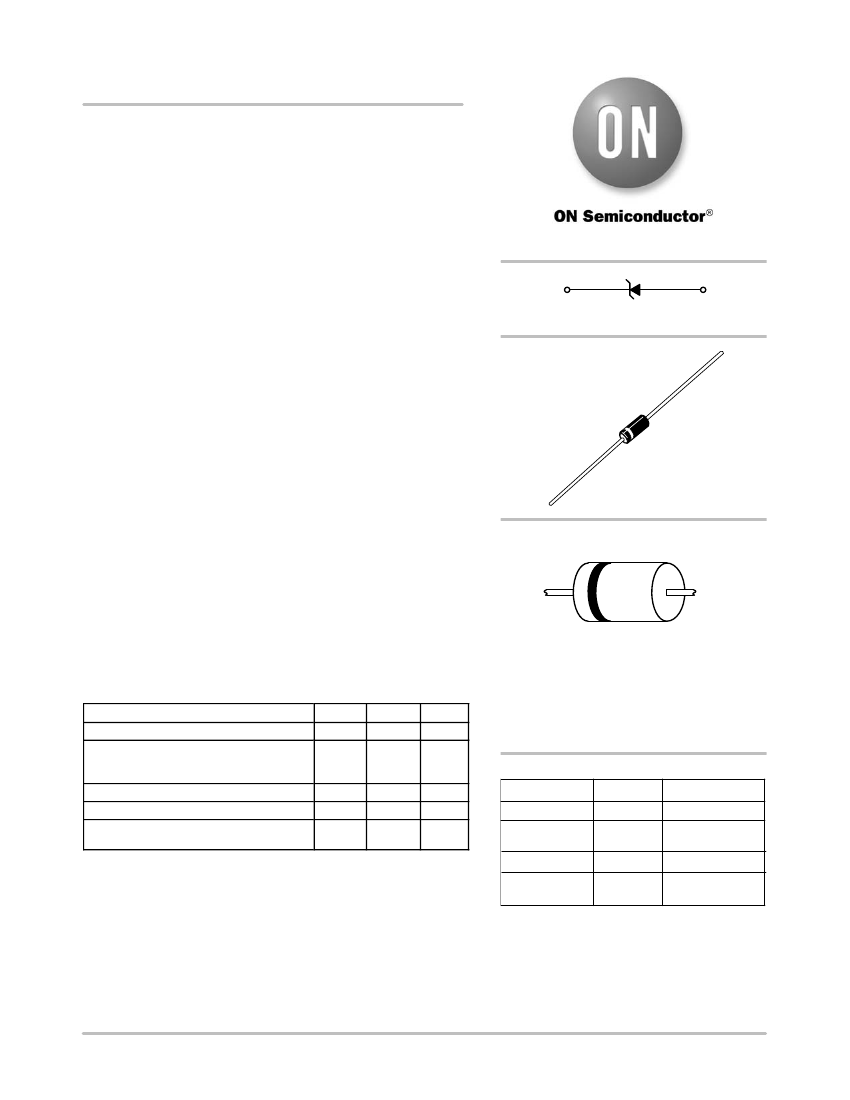

P6KE6.8A Series
600 Watt Peak Power
Surmetict−40 Transient
Voltage Suppressors
Unidirectional*
The P6KE6.8A series is designed to protect voltage sensitive
components from high voltage, high energy transients. They have
excellent clamping capability, high surge capability and fast response
time. These devices are ON Semiconductor ’s exclusive,
cost-effective, highly reliable Surmetict axial leaded package and is
ideally-suited for use in communication systems, numerical controls,
process controls, medical equipment, business machines, power
supplies and many other industrial/consumer applications.
Features
http://onsemi.com
Cathode
Anode
•
•
•
•
•
•
•
•
•
Working Peak Reverse Voltage Range − 5.8 to 171 V
Peak Power − 600 W @ 1 ms
ESD Rating of Class 3 (>16 KV) per Human Body Model
Maximum Clamp Voltage @ Peak Pulse Current
Low Leakage < 5
mA
above 10 V
Maximum Temperature Coefficient Specified
UL 497B for Isolated Loop Circuit Protection
Response Time is Typically < 1 ns
Pb−Free Packages are Available*
AXIAL LEAD
CASE 017AA
PLASTIC
MARKING DIAGRAM
Mechanical Characteristics
CASE:
Void-free, Transfer-molded, Thermosetting plastic
FINISH:
All external surfaces are corrosion resistant and leads are
readily solderable
MAXIMUM LEAD TEMPERATURE FOR SOLDERING:
A
P6KExxxA
YYWWG
G
A
= Assembly Location
P6KExxxA = Device Number
xxx
= (See Table Page 3)
YY
= Year
WW
= Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
230_C, 1/16″ from the case for 10 seconds
POLARITY:
Cathode indicated by polarity band
MOUNTING POSITION:
Any
MAXIMUM RATINGS
Rating
Peak Power Dissipation (Note 1) @ T
L
≤
25°C
Steady State Power Dissipation
@ T
L
≤
75°C, Lead Length = 3/8 in
Derated above T
L
= 75°C
Thermal Resistance, Junction−to−Lead
Forward Surge Current (Note 2) @ T
A
= 25°C
Operating and Storage Temperature Range
Symbol
P
PK
P
D
Value
600
5.0
50
R
qJL
I
FSM
T
J
, T
stg
20
100
− 55 to
+175
Unit
W
W
mW/°C
°C/W
A
°C
ORDERING INFORMATION
Device
P6KExxxA
P6KExxxAG
P6KExxxARL
P6KExxxARLG
Package
Axial Lead
Axial Lead
(Pb−Free)
Axial Lead
Axial Lead
(Pb−Free)
Shipping
†
1000 Units / Box
1000 Units / Box
4000/Tape & Reel
4000/Tape & Reel
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. Nonrepetitive current pulse per Figure 4 and derated above T
A
= 25°C per
Figure 2.
2. 1/2 sine wave (or equivalent square wave), PW = 8.3 ms, duty cycle = 4 pulses
per minute maximum.
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
**Please refer to P6KE6.8CA − P6KE200CA for
Bidirectional devices.
*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting
Techniques Reference Manual, SOLDERRM/D.
©
Semiconductor Components Industries, LLC, 2007
1
February, 2007 − Rev. 8
Publication Order Number:
P6KE6.8A/D
P6KE6.8A Series
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless
otherwise noted, V
F
= 3.5 V Max. @ I
F
(Note 6) = 50 A)
Symbol
I
PP
V
C
V
RWM
I
R
V
BR
I
T
QV
BR
I
F
V
F
Parameter
Maximum Reverse Peak Pulse Current
Clamping Voltage @ I
PP
Working Peak Reverse Voltage
Maximum Reverse Leakage Current @ V
RWM
Breakdown Voltage @ I
T
Test Current
Maximum Temperature Coefficient of V
BR
Forward Current
Forward Voltage @ I
F
I
PP
V
C
V
BR
V
RWM
I
R
V
F
I
T
V
I
F
I
Uni−Directional TVS
http://onsemi.com
2
P6KE6.8A Series
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted, V
F
= 3.5 V Max. @ I
F
(Note 6) = 50 A)
V
RWM
(Note 3)
V
5.8
6.4
7.02
7.78
8.55
9.4
10.2
11.1
12.8
13.6
15.3
17.1
18.8
20.5
23.1
25.6
28.2
30.8
33.3
36.8
40.2
43.6
47.8
53
58.1
64.1
70.1
77.8
85.5
94
102
111
128
136
145
154
171
Breakdown Voltage
I
R
@ V
RWM
mA
1000
500
200
50
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
V
BR
Min
6.45
7.13
7.79
8.65
9.5
10.5
11.4
12.4
14.3
15.2
17.1
19
20.9
22.8
25.7
28.5
31.4
34.2
37.1
40.9
44.7
48.5
53.2
58.9
64.6
71.3
77.9
86.5
95
105
114
124
143
152
162
171
190
(Note 4)
(V)
Nom
6.80
7.51
8.2
9.1
10
11.05
12
13.05
15.05
16
18
20
22
24
27.05
30
33.05
36
39.05
43.05
47.05
51.05
56
62
68
75.05
82
91
100
110.5
120
130.5
150.5
160
170.5
180
200
Max
7.14
7.88
8.61
9.55
10.5
11.6
12.6
13.7
15.8
16.8
18.9
21
23.1
25.2
28.4
31.5
34.7
37.8
41
45.2
49.4
53.6
58.8
65.1
71.4
78.8
86.1
95.5
105
116
126
137
158
168
179
189
210
@ I
T
mA
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
V
C
@ I
PP
(Note 5)
V
C
V
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.2
27.7
30.6
33.2
37.5
41.4
45.7
49.9
53.9
59.3
64.8
70.1
77
85
92
103
113
125
137
152
165
179
207
219
234
246
274
I
PP
A
57
53
50
45
41
38
36
33
28
27
24
22
20
18
16
14.4
13.2
12
11.2
10.1
9.3
8.6
7.8
7.1
6.5
5.8
5.3
4.8
4.4
4
3.6
3.3
2.9
2.7
2.6
2.4
2.2
QV
BR
%/°C
0.057
0.061
0.065
0.068
0.073
0.075
0.078
0.081
0.084
0.086
0.088
0.09
0.092
0.094
0.096
0.097
0.098
0.099
0.1
0.101
0.101
0.102
0.103
0.104
0.104
0.105
0.105
0.106
0.106
0.107
0.107
0.107
0.108
0.108
0.108
0.108
0.108
Device*
P6KE6.8A, G
P6KE7.5A, G
P6KE8.2A
P6KE9.1A, G
P6KE10A, G
P6KE11A, G
P6KE12A, G
P6KE13A, G
P6KE15A,
P6KE16A,
P6KE18A,
P6KE20A,
P6KE22A,
P6KE24A,
P6KE27A,
P6KE30A,
P6KE33A,
P6KE36A,
P6KE39A,
P6KE43A,
P6KE47A,
P6KE51A,
P6KE56A,
P6KE62A,
P6KE68A,
P6KE75A,
P6KE82A,
P6KE91A,
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
G
Device
Marking
P6KE6.8A
P6KE7.5A
P6KE8.2A
P6KE9.1A
P6KE10A
P6KE11A
P6KE12A
P6KE13A
P6KE15A
P6KE16A
P6KE18A
P6KE20A
P6KE22A
P6KE24A
P6KE27A
P6KE30A
P6KE33A
P6KE36A
P6KE39A
P6KE43A
P6KE47A
P6KE51A
P6KE56A
P6KE62A
P6KE68A
P6KE75A
P6KE82A
P6KE91A
P6KE100A
P6KE110A
P6KE120A
P6KE130A
P6KE150A
P6KE160A
P6KE170A
P6KE180A
P6KE200A
P6KE100A, G
P6KE110A, G
P6KE120A, G
P6KE130A, G
P6KE150A,
P6KE160A,
P6KE170A,
P6KE180A,
P6KE200A,
G
G
G
G
G
3. A transient suppressor is normally selected according to the maximum working peak reverse voltage (V
RWM
), which should be equal to or
greater than the dc or continuous peak operating voltage level.
4. V
BR
measured at pulse test current I
T
at an ambient temperature of 25°C
5. Surge current waveform per Figure 4 and derate per Figures 1 and 2.
6. 1/2 sine wave (or equivalent square wave), PW = 8.3 ms, duty cycle = 4 pulses per minute maximum.
*The “G’’ suffix indicates Pb−Free package available.
http://onsemi.com
3

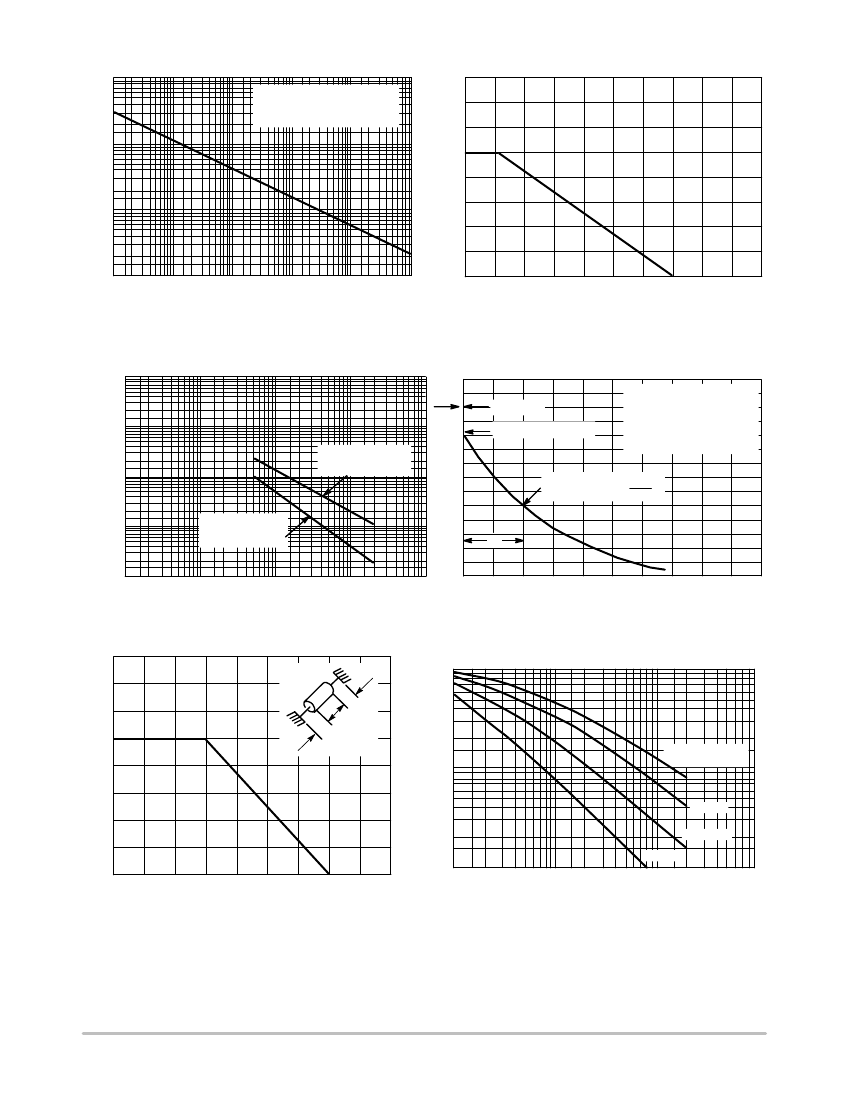

P6KE6.8A Series
NONREPETITIVE PULSE
WAVEFORM SHOWN IN
FIGURE 4
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT @ T = 25 C
A
_
100
PPK , PEAK POWER (kW)
10
100
80
60
40
20
0
0
25
50
75
100 125 150 175
200
1
0.1
0.1
ms
1
ms
10
ms
100
ms
1 ms
10 ms
t
P
, PULSE WIDTH
T
A
, AMBIENT TEMPERATURE (_C)
Figure 1. Pulse Rating Curve
Figure 2. Pulse Derating Curve
t
r
≤
10
ms
10,000
C, CAPACITANCE (pF)
100
MEASURED @
ZERO BIAS
1000
VALUE (%)
PEAK VALUE − I
PP
PULSE WIDTH (t
p
) IS
DEFINED AS THAT
POINT WHERE THE
PEAK CURRENT
DECAYS TO 50% OF I
PP
.
I
PP
2
HALF VALUE −
50
100
MEASURED @
V
RWM
0
t
P
10
0.1
1
10
100
V
BR
, BREAKDOWN VOLTAGE (VOLTS)
1000
0
1
2
3
t, TIME (ms)
4
Figure 3. Capacitance versus Breakdown Voltage
PD, STEADY STATE POWER DISSIPATION (WATTS)
Figure 4. Pulse Waveform
3/8″
5
4
3
2
1
0
0
25
50
75 100 125 150 175
T
L
, LEAD TEMPERATURE
_C)
200
3/8″
DERATING FACTOR
1
0.7
0.5
0.3
0.2
0.1
0.07
0.05
0.03
0.02
0.01
0.1
0.2
0.5
1
10
ms
2
5
10
D, DUTY CYCLE (%)
20
50 100
100
ms
PULSE WIDTH
10 ms
1 ms
Figure 5. Steady State Power Derating
Figure 6. Typical Derating Factor for Duty Cycle
http://onsemi.com
4
京公网安备 11010802033920号
EEWORLD
