CTS09-12011-0DM datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> CTS09-12011-0DM

CTS09-12011-0DM: DescriptionBase Station/Broadcast Transmission Antenna, 870MHz Min, 960MHz Max, 13.2dB Gain, 120deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size127KB，2 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

CTS09-12011-0DM Overview

Base Station/Broadcast Transmission Antenna, 870MHz Min, 960MHz Max, 13.2dB Gain, 120deg 3dB Beamwidth

CTS09-12011-0DM Parametric

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
Beam Width-E	11.5 deg
Beamwidth-H	120 deg
Characteristic impedance	50 Ω
front to back ratio	20 dB
Gain	13.2 dB
Omnidirectional	NO
Maximum operating frequency	960 MHz
Minimum operating frequency	870 MHz
Maximum operating temperature	65 °C
Minimum operating temperature	-40 °C
polarization	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	500 W
Maximum voltage standing wave ratio	1.4
Commentary	125 mph

Preview

Download Datasheet

View All

Base Station Antennas

ANTENNA SPECIFICATIONS

ANTENNA TYPE:

Description:

Electrical Specifications

Frequency Band, MHz

Gain, dBd (dBi)

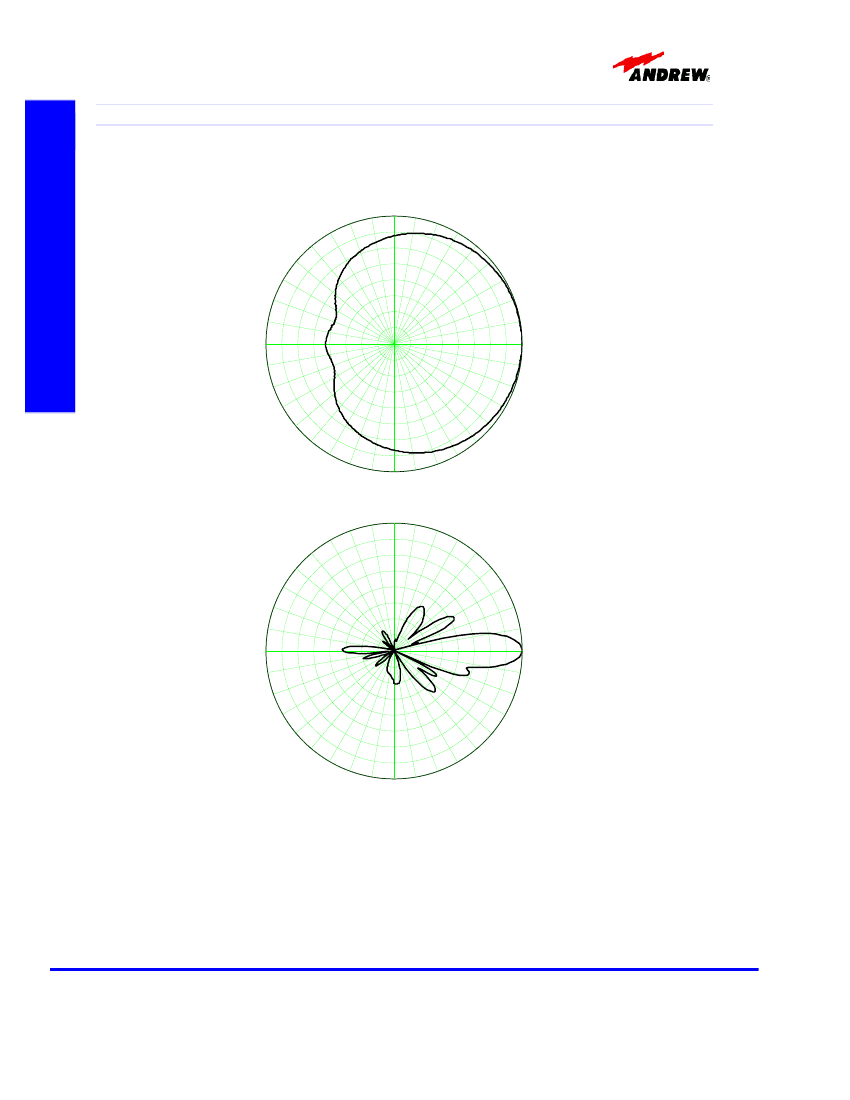

Azimuth Beamwidth, degrees

Elevation Beamwidth, degrees

Front-to-Back Ratio, dB

Return Loss, dB (VSWR)

Impedance, ohms

Intermodulation, dBc

Polarization Type

Electrical Downtilt, degrees

Maximum Input Power, watts

Lightning Protection

Connector Type

Connector Position

Number of Connectors

CTS09-12011-0D

870-960 MHz, single polarized, 120 degree azimuth beamwidth,

11 dBd gain panel antenna with 0 degrees of electrical downtilt

PerforMax

870-960

11.0 (13.2)

120

11.5

>20

>15.5 (<1.4)

<-150

Single, Vertical

500

DC Ground

7-16 DIN Female

Bottom

Mechanical Specifications

Antenna Dimensions - L x W x D, mm (in)

Antenna Weight, kg (lb)

Radome Color

Radome Material

1738 (68.4) x 267 (10.5) x 127 (5)

11.8 (26.0)

Gray

UV Protected PVC

Environmental Specifications

Survival Wind Speed, km/h (mph)

Wind Load - frontal, N (lbf)*

Wind Load - lateral, N (lbf)*

Wind Load - rear, N (lbf)*

Temperature Range, degrees C

Humidity, %

* Based on 100 mph (161 km/h)

201 (125)

714 (160)

166 (37)

860 (193)

-40 to +65

Up to 100

Shipping Specifications

Shipping Dimensions - L x W x D, mm (in)

Shipping Weight, kg (lb)

1854 (73) x 406 (16) x 267 (10.5)

14.7 (32.4)

Mounting Hardware Specifications

Mounting Bracket Part Number

Mount Description

Mount Weight, kg (lb)

To include mounting bracket with antenna,

order part number:

Shipping Dimensions - mount with antenna -

L x W x D, mm (in)

Shipping Weight - mount with antenna, kg (lb)

Customer Support Center:

From North America: 1-800-255-1479

International: +1-708-873-2307

600899A-2

Adjustable downtilt, 0 to 15 degrees

4.1 (9.0)

CTS09-12011-0DM

1943 (76.6) x 406 (16) x 267 (10.5)

19.0 (41.9)

This Specification Sheet is for reference only and is subject to change without notice.



2001 Andrew Corporation, Printed in the U.S.A.

Bulletin # 94066 - Rev. 9/17/2001

www.andrew.com
