S2800F-W

Description
Silicon Controlled Rectifier, 10A I(T)RMS, 50V V(DRM), 50V V(RRM), 1 Element, TO-220AB
CategoryAnalog mixed-signal IC    Trigger device
File Size54KB,2 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

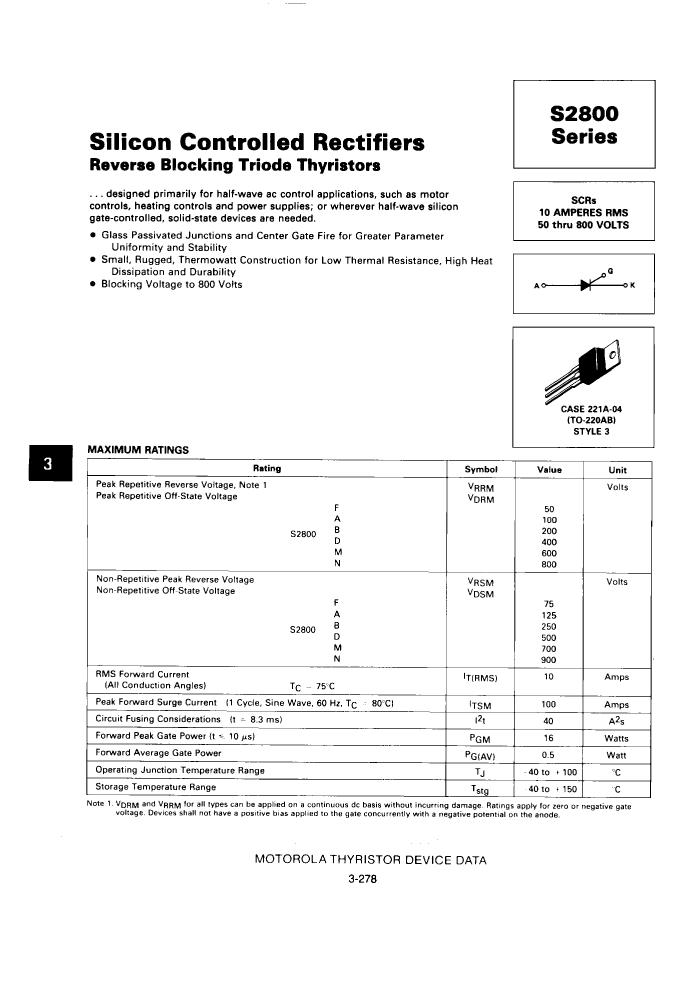

S2800F-W Overview

Silicon Controlled Rectifier, 10A I(T)RMS, 50V V(DRM), 50V V(RRM), 1 Element, TO-220AB

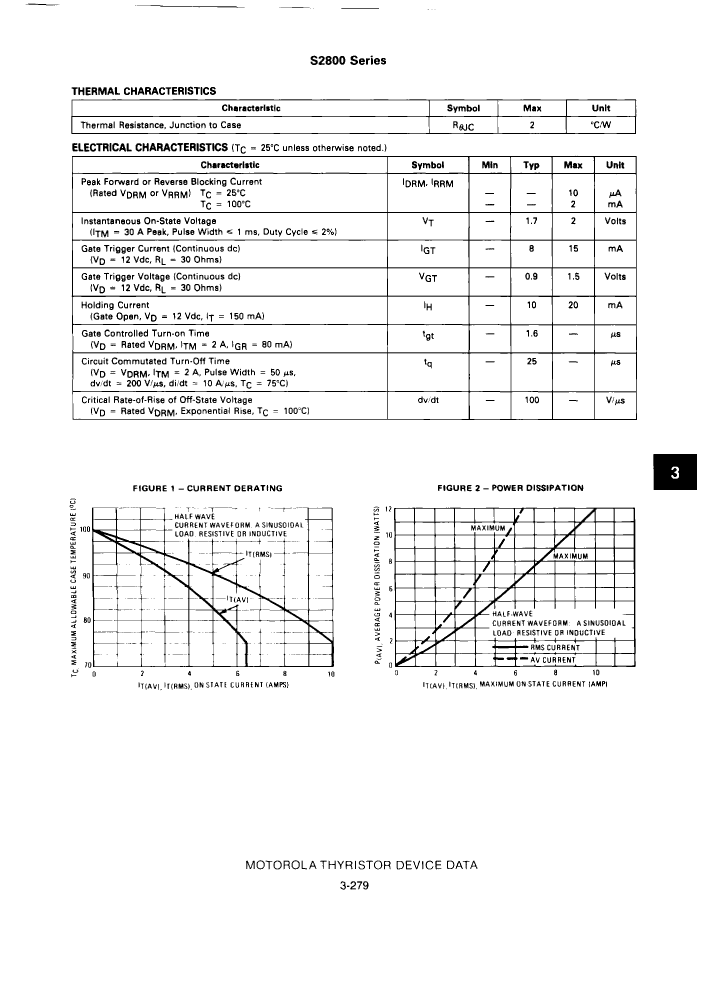

S2800F-W Parametric

Parameter NameAttribute value
MakerMotorola ( NXP )
package instructionFLANGE MOUNT, R-PSFM-T3
Reach Compliance Codeunknown
ECCN codeEAR99
Shell connectionANODE
Nominal circuit commutation break time25 µs
ConfigurationSINGLE
Maximum DC gate trigger current15 mA
Maximum DC gate trigger voltage1.5 V
Maximum holding current20 mA
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
Number of components1
Number of terminals3
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum rms on-state current10 A
Maximum repetitive peak off-state leakage current10 µA
Off-state repetitive peak voltage50 V
Repeated peak reverse voltage50 V
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Trigger device typeSCR
