This document was generated on 05/31/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0757300205
Active
extreme_micropower
4.00mm (.157") EXTreme MicroPower™ Header, 5 Circuits, 3.81mm (.150") Tail
Length
Documents:
3D Model

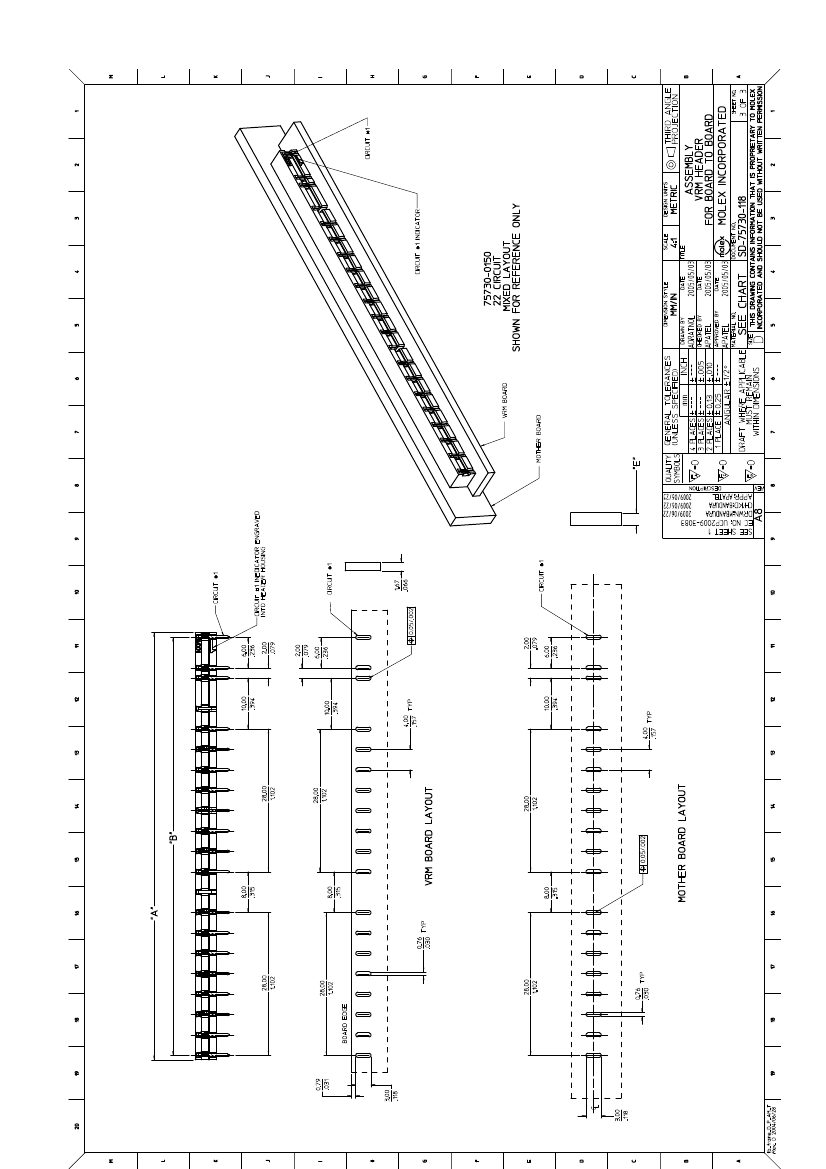

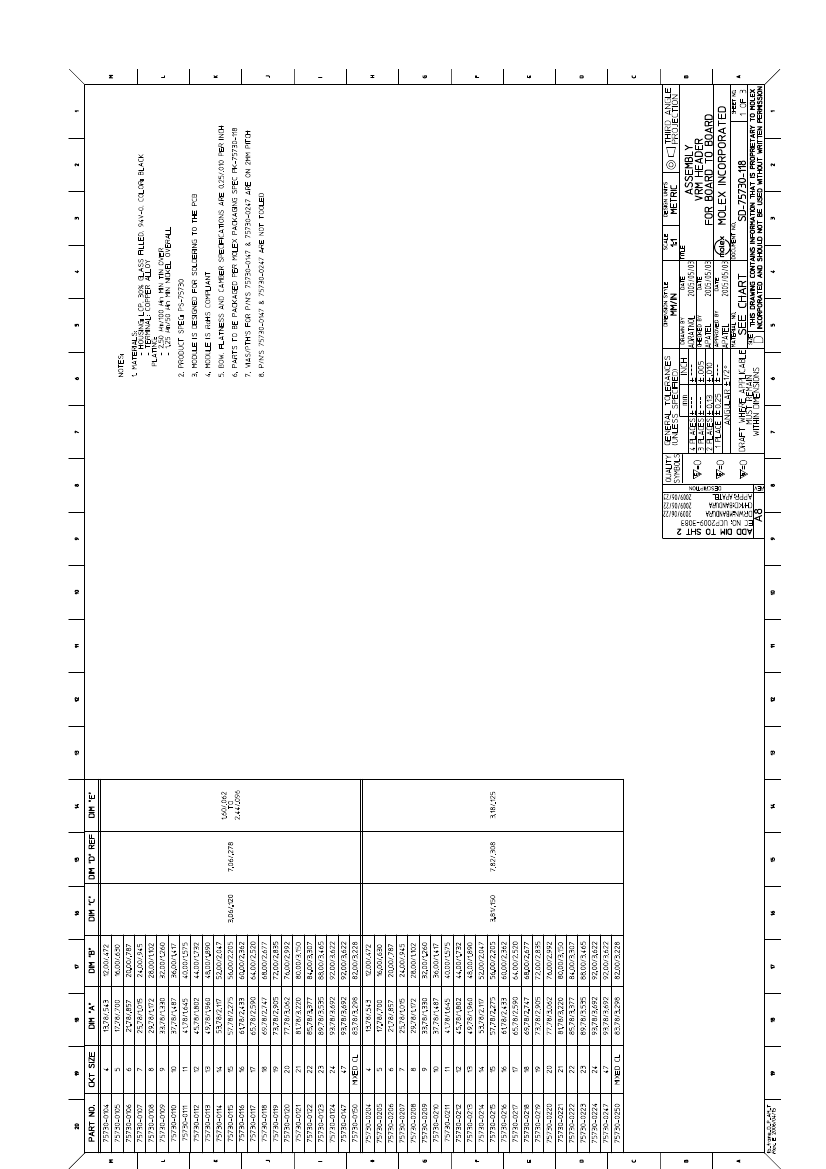

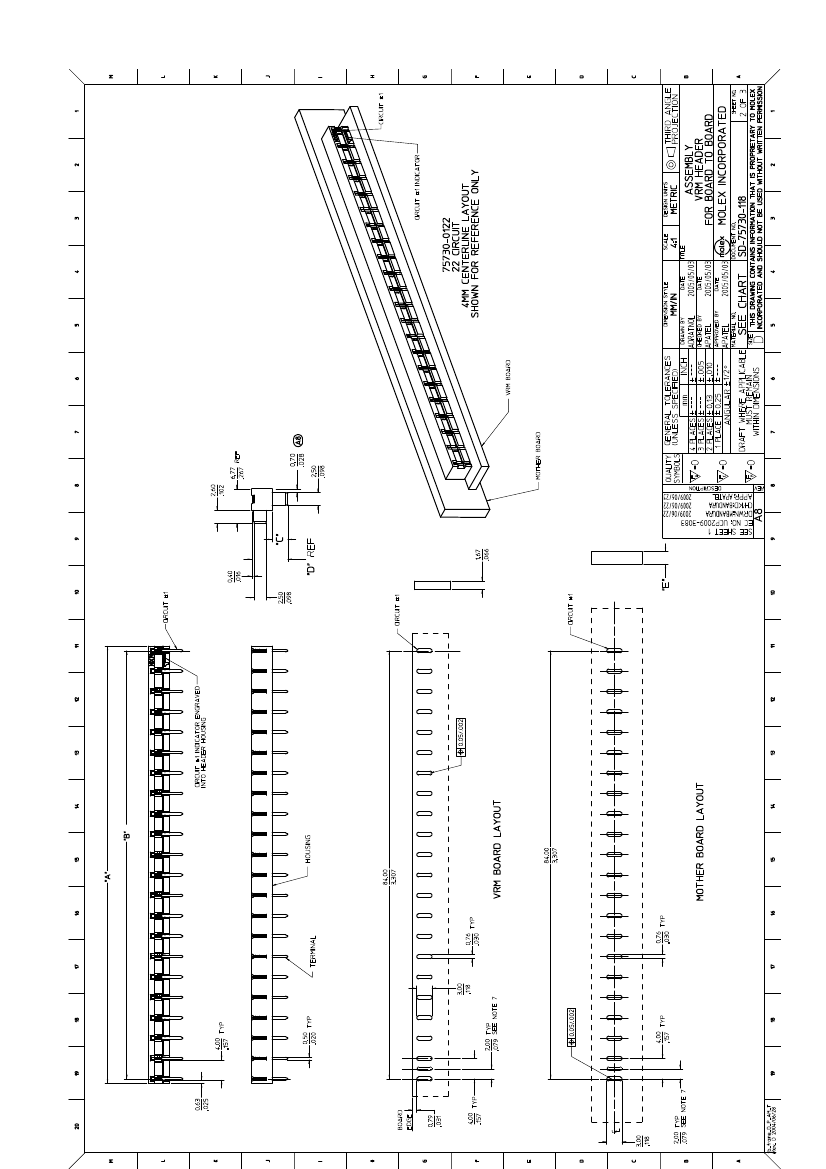

Drawing (PDF)
Product Specification PS-75730-999 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
75730
Board-to-Board
extreme_micropower
EXTreme MicroPower™
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
5
5
No
No
No
None
No
Copper
Tin
Tin
1
Right Angle
0.150 In
3.81 mm
No
Yes
0.066 In, 0.125 In
1.67 mm, 3.18 mm
Tray
0.157 In
4.00 mm
0.157 In
4.00 mm
100
2.5
100
2.5
No
No
No
No
Yes
-40°C to +105°C
Through Hole
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
75730S
Electrical
Current - Maximum per Contact
16A
Voltage - Maximum
250V
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-75730-118
PS-75730-999
SD-75730-118
