0850033263
Active
din_41612
2.54mm (.100") Pitch DIN 41612 C Style Male Header, Right Angle, Through Hole,
0.60µm (24µ") Selective Gold (Au) Plating, 32 Circuits, without Mounting Clips, No Flux
Proof
Documents:

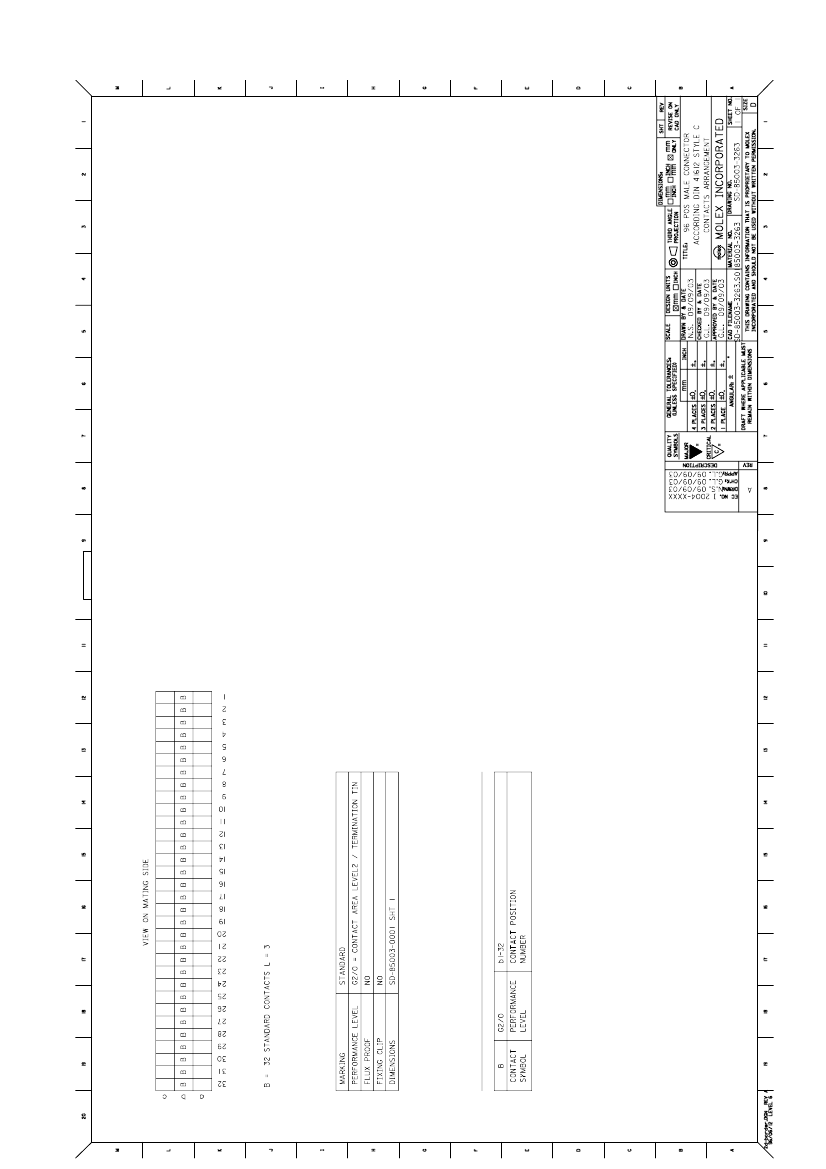

Drawing (PDF)
Product Specification PS-85003-0001 (PDF)
RoHS Certificate of Compliance (PDF)
EU RoHS
Complia
Not Revi
REACH S
Not Revi
Halogen
Status
Not Revi
Need mo
environm
Agency Certification
CSA
UL
LR19980
E29179
Email pro
For a mu
Complian
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Name
Style
Backplane Connectors
85003
Backplane
No Mounting Clips. No Flux Proof
PCB Header
din_41612
IEC 603-2/DIN 41612
C
Please vi
non-prod
Search
85003S
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
32
96
Standard Contacts at: B:b1-b32
Gray
400
No
94V-0
No
Yes
Brass
Gold
Tin
Polyester
16
Open Pin Field
3
Right Angle
0.118 In
3.00 mm
No
Yes
0.062 In
1.60 mm
Carton
0.100 In
2.54 mm
0.100 In
2.54 mm
24
0.60
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
98
2.5
Yes
No
No
-55°C to +125°C
Through Hole
Electrical
Current - Maximum per Contact
Data Rate
Voltage - Maximum
2.5A
622.0 Mbps
250V AC (RMS)
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-85003-0001
SD-85003-3263
