Features
Unregulated
Converters
Description
●
●
●
●
●
●
1kVDC and 3kVDC Isolation Options
Approved for Medical Applications
Suitable for Automated Assembly
High Power Density
Optional Continuous Short Circuit Protection
Efficiency to 8 5 %
ECONOLINE
DC/DC-Converter

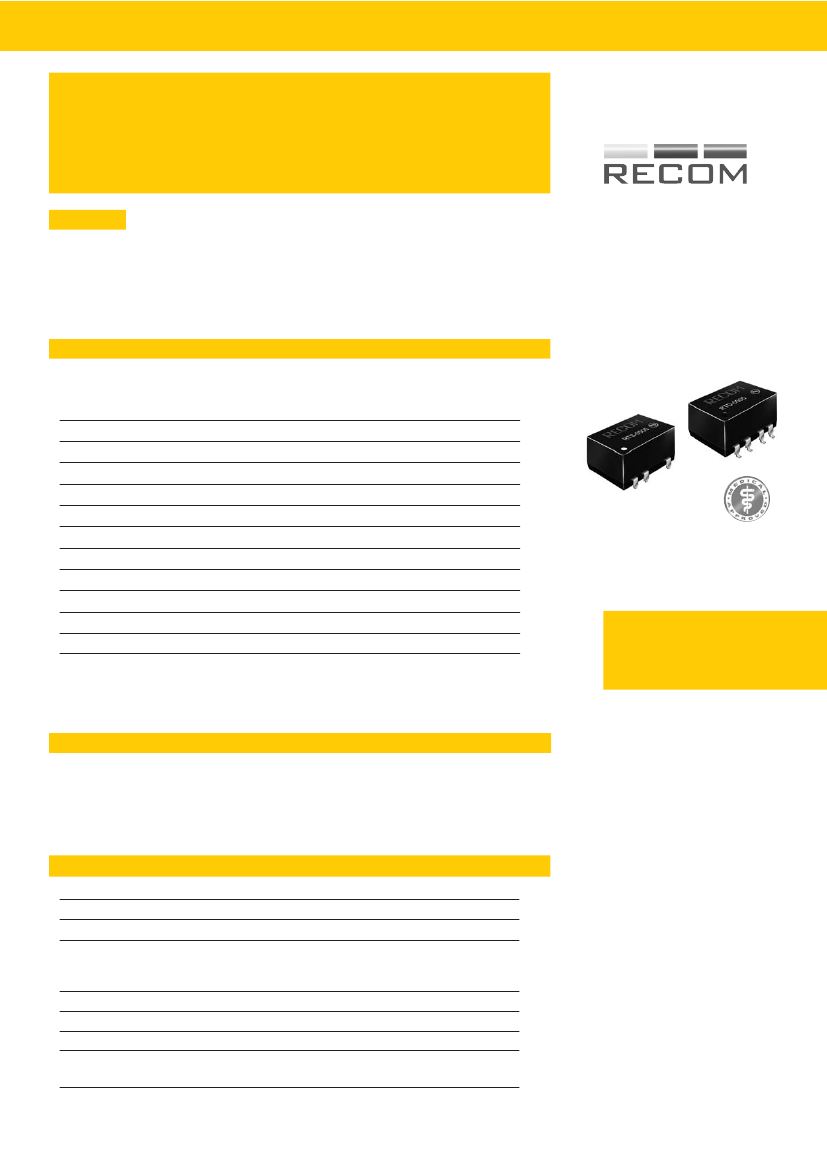

Compared to standard 2 Watt packages, space savings of 80% and 77% respectively are achieved by these RTS & RTD
2 Watts SMD-Miniature DC/DC Converters. They have been specifically designed for applications where board space is
at a premium since these 2 Watt converters have only a slightly larger foot print than conventional 1 Watt converters.
With efficiencies up to 85%, external cooling is not needed, as the full output power is available over the operating
temperature range -40°C to +85°C. All converters have an I/O-Isolation of 1kVDC, or optionally 3kV, making them
suitable for many industrial and medical applications.
Selection Guide
Part
Number
SMD
RTS**-xx3.3
RTS**-xx05
RTS**-xx09
RTS**-xx12
RTS**-xx15
RTS**-xx24
RTD**-xx05
RTD**-xx09
RTD**-xx12
RTD**-xx15
Input
Voltage
(VDC)
5, 12, 15, 24
5, 12, 15, 24
5, 12, 15, 24
5, 12, 15, 24
5, 12, 15, 24
5, 12, 15, 24
5, 12, 15, 24
5, 12, 15, 24
5, 12, 15, 24
5, 12, 15, 24
Output
Voltage
(VDC)
3.3
5
9
12
15
24
±5
±9
±12
±15
Output
Current
(mA)
606
400
222
167
133
83
±200
±111
±83
±66
Efficiency
(%)
70-75
80-85
80-85
80-85
80-85
80-85
70-75
75-78
75-83
75-85
2 Watt
SMD
Single
&
Dual Output
(3kV)
(H)
(H)
(H)
(H)
(H)
(H)
(H)
(H)
(H)
(H)
EN-60950-1 Certified
(All Suffixes)
EN-60601-1 Certified
(Suffix H3)
RTD**-xx24 (H)
5, 12, 15, 24
±24
±42
78-85
xx = Input Voltage. Other input and output voltage combinations available on request.
* add Suffix “P” for Continuous Short Circuit Protection, e.g. RTS-0505/P, RTD-0505/HP
* add suffix -R for tape&reel packing e.g.
RTS-0505-R
. For more details see Tapes Section.
RTS-RTD
Case and Pinning Options (note restrictions on /H option)
RTS** : ** without marking denotes 5 pins out of 8 fitted (includes /H option)
** with marking 8 denotes 8 pins out of 8 fitted (/H option not available)
RTD** : ** without marking denotes 6 pins out of 10 fitted (includes /H option)
** with marking 10 denotes with 10 pins out of 10 fitted (/H option not available)
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Input Voltage Range
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation
(10% to 100% full load)
Output Ripple and Noise (20MHz limited)
Operating Frequency
Efficiency at Full Load
No Load Power Consumption
RTS typ.
RTD typ.
3.3V output types
5V output type
9V, 12V, 15V, 24V output types
±10%
±5%
1.2%/1% of Vin max.
20% max.
15% max.
10% max.
150mVp-p max.
20kHz min. / 50kHz typ. / 85kHz max.
70% min. / 80% typ.
124mW min. / 186mW typ. / 350mW max.
159mW min. / 192mW typ. / 350mW max.
cont.
www.recom-international.com
REV:0/2009
E-39
Refer to Application Notes
ECONOLINE
DC/DC-Converter
Specifications
- Continued
Isolation Voltage
H-Suffix
Rated Working Voltage
Isolation Capacitance
Isolation Resistance
Short Circuit Protection
P-Suffix
Operating Temperature Range (free air convection)
Storage Temperature Range
Reflow Temperature
Vapour Phase Process
Relative Humidity
Package Weight
MTBF (+25°C)
(+85°C)
ROHS compliant
(for more details see Application Notes)
RTS types
RTD types
Detailed Information see
Application Notes chapter "MTBF"
RTS
&
RTD
Series
(tested for 1 second)
(tested for 1 second)
(long term isolation)
1000VDC min.
3000VDC min.
see Application Notes
40pF min. / 115pF max.
10 GΩ min.
1 Second
Continuous
-40°C to +85°C (see Graph)
-55°C to +125°C
245°C (30 sec) max.
240°C (90 sec) max.
95% RH
2.1g
2.5g
886 x 10 hours
128 x 10
3
hours
3
Derating-Graph
(Ambient Temperature)
100
80
Output Power (%)
60
40
20
0
Safe Operating Area
}
using MIL-HDBK 217F
using MIL-HDBK 217F
85 100
95
Operating Temperature °C
-40
0
50
150

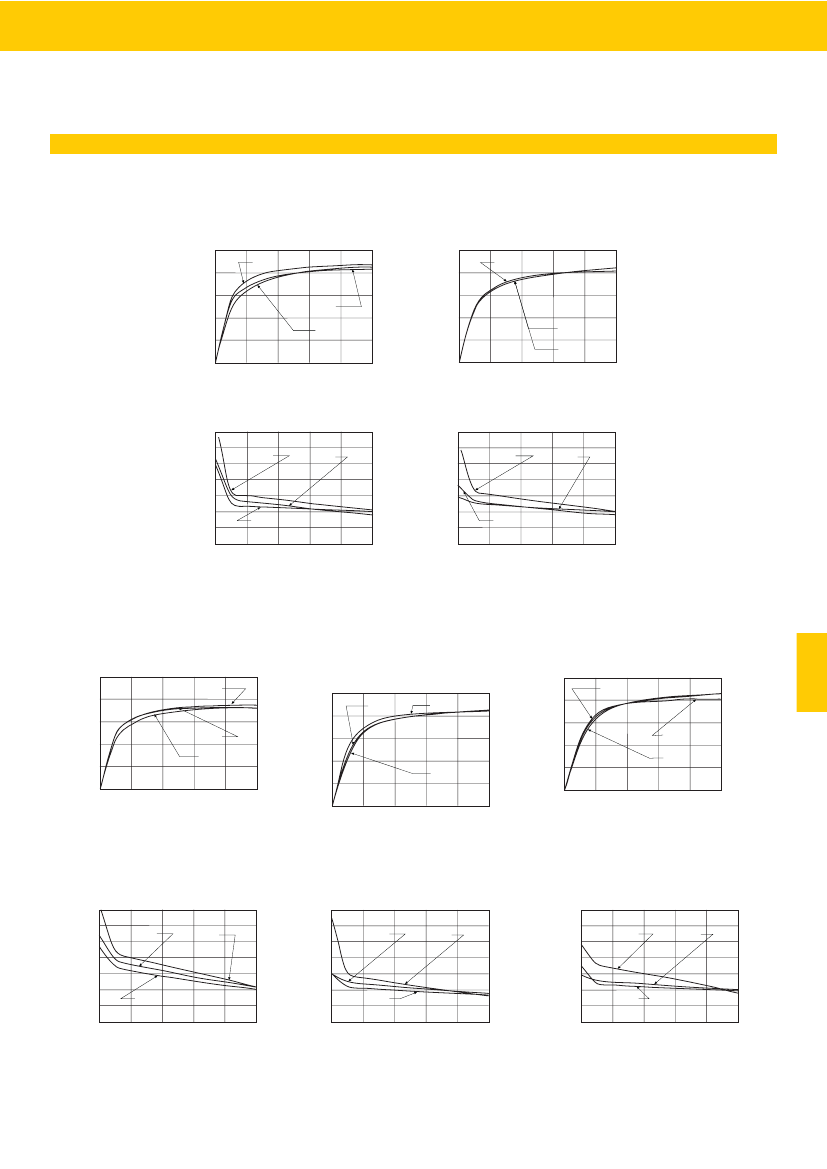

Typical Characteristics
RTS-xx05
Efficiency / Load
100
RTS-xx09
Efficiency / Load
100
80
60
RTS-RTD
0505
80
60
40
1205
0509
2405
Efficiency %
40
20
0
1209
2409
Efficiency %
20
0
0%
20%
40%
60%
80%
100%
0%
20%
40%
60%
80%
100%
Total Output current (%)
Total Output current (%)
Deviation / Load
25.000
20.000
25.000
20.000
Deviation / Load
Deviation from Nominal (%)
15.000
10.000
5.000
0.000
-5.000
-10.000
Deviation from Nominal (%)
0505
1205
15.000
10.000
5.000
0.000
-5.000
-10.000
0509
1209
2405
2409
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
E-40
REV: 0/2009
www.recom-electronic.com
ECONOLINE
DC/DC-Converter
Typical Characteristics
RTS
&
RTD
Series
RTS-xx15
Efficiency / Load
100
80
60
RTS-xx12
Efficiency / Load
100
80
60
40
0512
0515
1212
2412
Efficiency %
40
20
0
Efficiency %
1215
2415
0%
20%
40%
60%
80%
100%
20
0
0%
20%
40%
60%
80%
100%
Total Output current (%)
Total Output current (%)
Deviation / Load
25.000
20.000
25.000
20.000
Deviation / Load
Deviation from Nominal (%)
15.000
10.000
5.000
0.000
-5.000
-10.000
Deviation from Nominal (%)
0512
1212
15.000
10.000
5.000
0.000
-5.000
-10.000
0515
2415
2412
1215
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
RTD-xx05
Efficiency / Load
100
80
60
40
RTD-xx12
Efficiency / Load
100
80
100
RTD-xx15
Efficiency / Load
80
60
40
RTS-RTD
1205
2415
2412
0512
0505
2405
Efficiency %
60
0515
1215
Efficiency %
20
0
40
20
0
Efficiency %
1212
20
0
0%
20%
40%
60%
80%
100%
0%
20%
40%
60%
80%
100%
Total Output current (%)
0%
T
20%
lO
40%
(%)
60%
80%
100%
Total Output current (%)
Deviation / Load
25.000
20.000
25.000
20.000
Deviation / Load
25.000
20.000
Deviation / Load
Deviation from Nominal (%)
Deviation from Nominal (%)
15.000
10.000
5.000
0.000
-5.000
-10.000
15.000
10.000
5.000
0.000
-5.000
-10.000
Deviation from Nominal (%)
0505
1205
1212
0512
15.000
10.000
5.000
0.000
-5.000
-10.000
0515
1215
2405
2412
0% 20%
40%
60%
Total Output current (%)
80%
100%
2415
0% 20%
40%
60%
Total Output current (%)
80%
100%
0% 20%
40%
60%
Total Output current (%)
80%
100%
www.recom-international.com
REV:0/2009
E-41
ECONOLINE
DC/DC-Converter
Package Style and Pinning (mm)
RTS
&
RTD
Series
10 PIN Dual SMD Package
3rd angle
projection
8 PIN Single SMD Package
12.75
12.40
7.05
1.65
9.00
2.54 x 3
9.30
9.00
8
RECOM
RTS-xxxx
xxxx
5
10
7
RECOM
RTD-xxxx
xxxx
15.24
14.84
7.05
1.65
9.00
2.54x4
9.30
9.00
8.60
10.00
11.80
1 2
4
1 2
4 5
Pin Connections
Pin #
Single
–Vin
+Vin
–Vout
+Vout
No Pin
NC
No Pin
Dual
–Vin
+Vin
Com
–Vout
+Vout
No Pin
NC
Bottom View
8.60
10.00
11.80
Recommended Footprint Details
1.20
12.70
0.50
8
Top View
1
2
4
Recommended Footprint Details
0.50
12.70
1.20
10
Top View
5
4
1.80
5
7
8
10
7
Bottom View
1 2
1 2
4 5
1.80
2.54
1.20
NC = No Connection
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
2.57
1.20
R2S_R2D
Full 8 PIN Single SMD Package
Note: /H option is not available in
these pin packages
Full 10 PIN Dual SMD Package
12.75
12.10
7.0
1.65
2.54 x 3
9.0
9.3
9.0
8 7 6 5
RECOM
RTS8-xxxx
xxxx
10 9 8 7 6
RECOM
RTD10-xxxx
xxxx
15.24
14.84
7.0
1.65
2.54x4
9.0
9.3
9.0
8.6
10.0
11.8
1 2 3 4
Pin Connections
Pin #
1
2
3
4
5
6
7
Single
–Vin
+Vin
NC
–Vout
+Vout
NC
NC
NC
-
-
1 2 3 4 5
8.6
10.0
11.8
Dual
–Vin
+Vin
NC
Com
–Vout
NC
+Vout
NC
NC
NC
Bottom View
Recommended Footprint Details
1.20
12.70
0.55
8 7 6 5
Top View
Recommended Footprint Details
0.55
12.70
1.20
10 9 8 7 6
Top View
Bottom View
1 2 3 4
1.80
1 2 3 4 5
1.80
2.54
1.20
8
9
10
2.54
1.20
NC = No Connection
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
E-42
REV: 0/2009
www.recom-electronic.com
