5822-1501-000: DescriptionRF Connector Adapter, SMC-SMC, Panel Mount, Male-Male, Jack; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric View All

5822-1501-000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5822-1501-000	-	-	View	Buy Now

5822-1501-000 Overview

RF Connector Adapter, SMC-SMC, Panel Mount, Male-Male, Jack

5822-1501-000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	_compli
ECCN code	EAR99
Factory Lead Time	7 weeks 6 days
Adapter type	SMC-SMC
Other features	STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 6 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	MALE-MALE
Contact material	NOT SPECIFIED
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Installation method	STRAIGHT
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Base Number Matches	1

Preview

Download Datasheet

View All

REVISIONS

REV.

A

DESCRIPTION

INITIAL RELEASE

DATE

APPROVED

J.S.

05/11/11

.69

.420

"D" FLAT

#10-32 UNF-2A

BOTH ENDS

.250 HEX

NOTES:

MATERIALS:

1. INSULATOR = VIRGIN WHITE TEFLON PER ASTM D1710, GRADE 1, TYPE I, CLASS "B".

2. LOCKWASHER = PHOSPHOR BRONZE PER ASTM B139, COPPER ALLOY C53400, TEMPER H04.

3. ALL OTHER METAL PARTS = BRASS PER ASTM B16, ALLOY C36000, TEMPER H02.

FINISHES:

1. CONTACT = GOLD PLATE PER MIL-G-45204, TYPE II, CLASS 1, GRADE C, OVER .00010 TO

.00020 STRESS FREE SULFAMATE NICKEL PER QQ-N-290.

2. ALL OTHER METAL PARTS = GOLD PLATE PER MIL-G-45204, TYPE II, CLASS 0, GRADE C,

OVER .00010 TO .00020 COPPER STRIKE PER MIL-C-14550.

5822-1501-000

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES

TOLERANCES ON

DWN:

DATE

Property of Radiall

This document cannot be reproduced or

communicated to a third party without prior

written permission of RADIALL.

J.S.

CHKD:

05/11/11

DATE

DECIMAL

ANGLE

D.N.

APVD:

05/11/11

DATE

J.M.

REFERENCE:

05/11/11

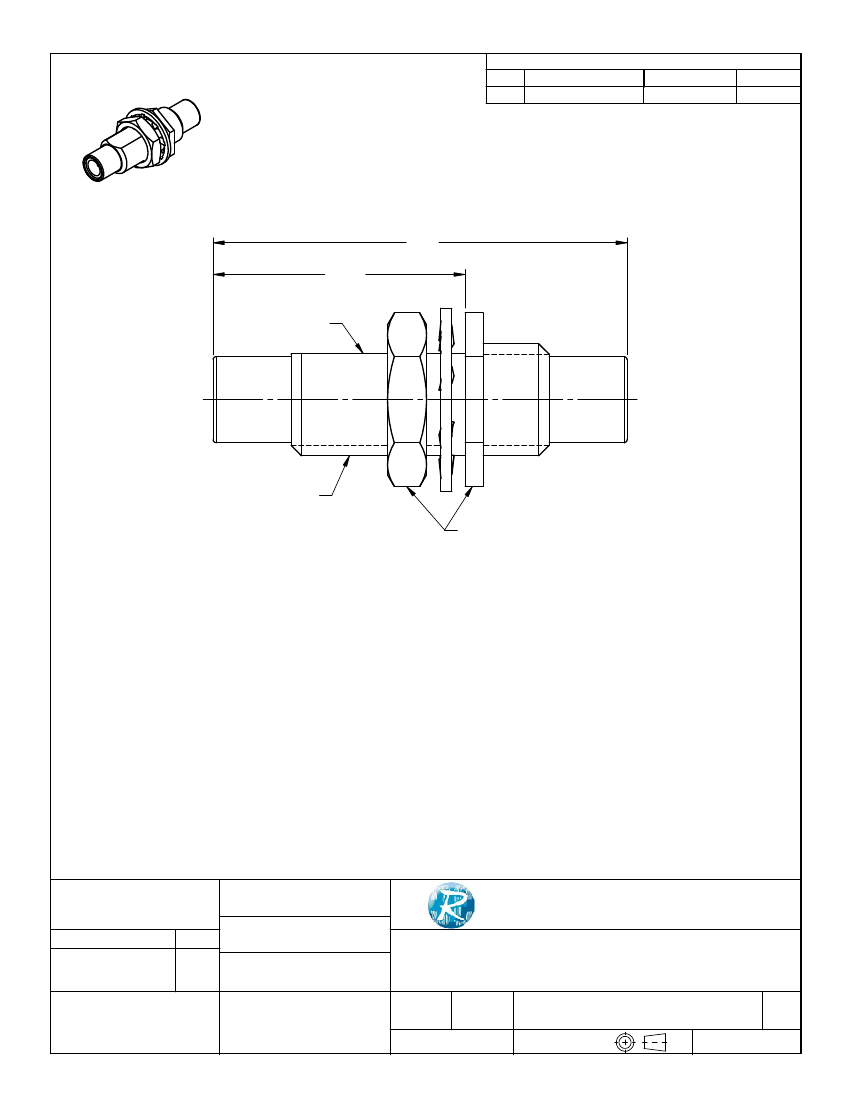

SMC STRAIGHT MALE JACK TO

JACK BULKHEAD MOUNT ADAPTER

SIZE

MATERIALS & FINISHES:

ORIGINATED: J.S.

DATE: 05/11/11

SEE NOTES

A

FSCM NO.

DWG NO.

19505

6:1

5822-1501-000

THIRD ANGLE

PROJECTION

REV

A

SCALE

SHEET 1 OF 1
