Part Number:
Status:
Overview:
Description:
0753413223
Active
gbx_backplane_connector_system
1.85mm by 1.85mm (.073 by .073") Pitch 4-Pair GbX® Backplane Connector System,
Power Module, 12 Circuits, 1.27µm (50µ") Gold (Au), Lead Free
Documents:

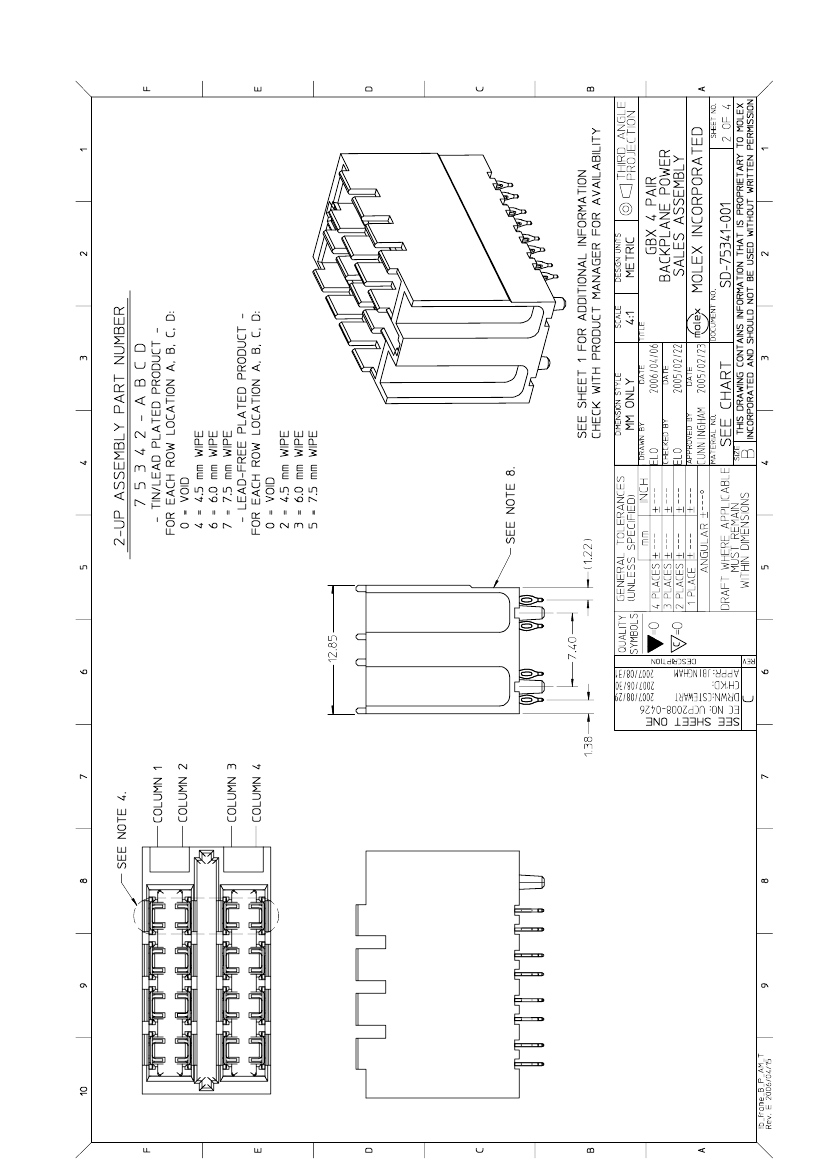

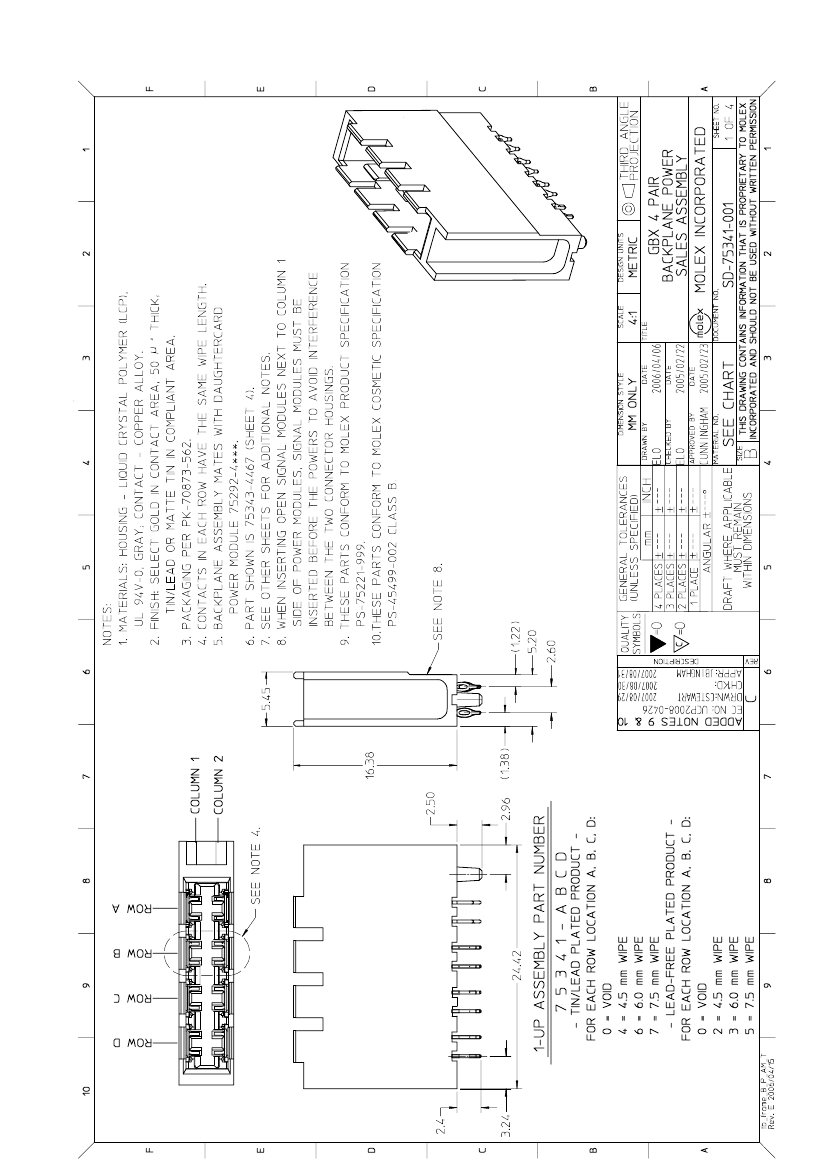

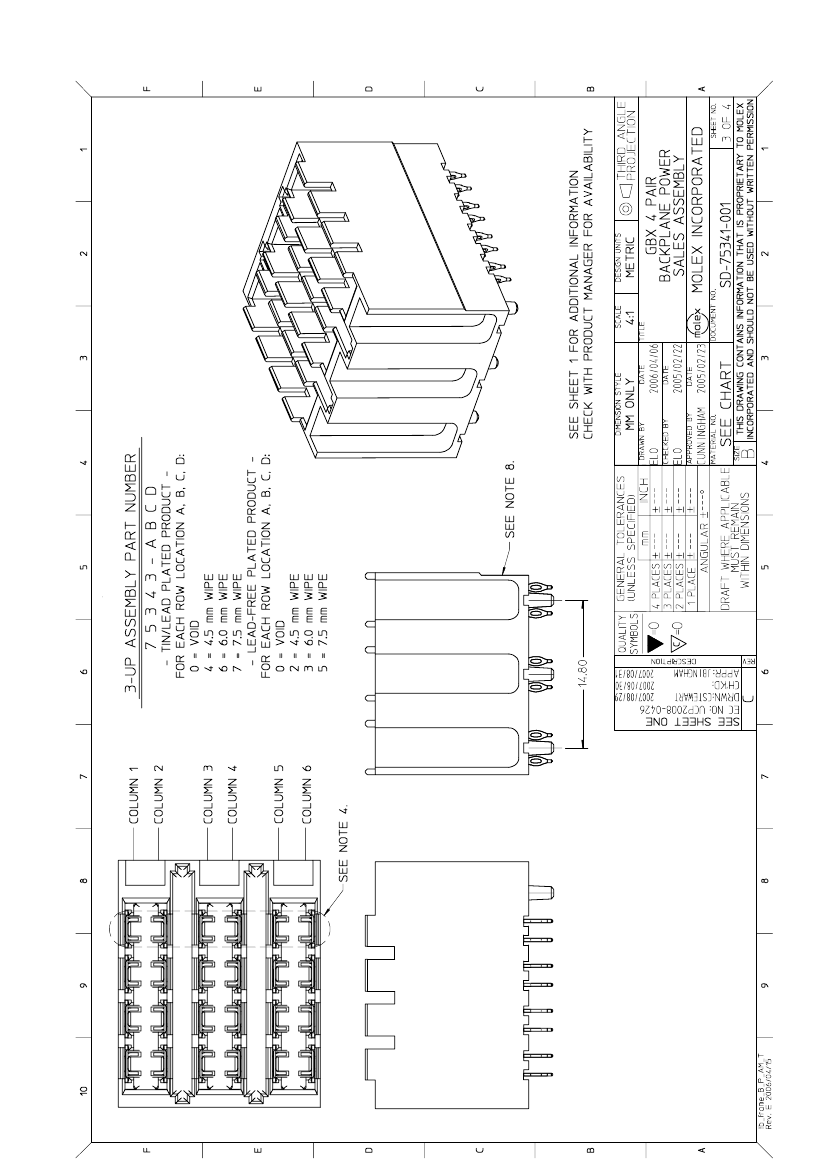

Drawing (PDF)
Product Specification PS-75221-999 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
UL
E29179
General
Product Family
Series
Application
Application Tooling Documents
Comments
Component Type
Overview
Product Name
Style
Backplane Connectors
75341
Backplane
<a href="http://www.molex.com/pdm_docs/ats/
TM-622022099.pdf">Tooling Manual</a>
Blade Length A 6.00mm, B 4.50mm, C 4.50mm, D
7.50mm
Power Header
gbx_backplane_connector_system
GbX®
N/A
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Halogen
Need mo
environm
Email pro
For a mu
Complian
Physical
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
8
8
Rows A, B, C, & D
Gray
200
Yes
94V-0
No
None
Gold
Tin
High Temperature Thermoplastic
N/A
4
4
Vertical
0.089 In
2.28 mm
Yes
Yes
0.063 In
1.60 mm
Tube
0.073 In
1.85 mm
0.102 In
2.60 mm
50
1.25
Please vi
non-prod
Search
75341S
Mates
75292
Applic
Tooling
found b
Crimp H
contain
Specifi
Global
Descri
Insertio
GbX®
Power
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
30
0.75
Yes
No
Yes
-55°C to +105°C
Through Hole - Compliant Pin
Electrical
Current - Maximum per Contact
Data Rate
Real Signals (per 25mm)
Shielded
Voltage - Maximum
6A
8.0 Gbps
0
No
120V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Product Specification
PS-75221-999
Sales Drawing
SD-75341-001
GbX is a registered trademark of Amphenol Corporation.
