836199003

Description
9 CONTACT(S), MALE, D MICROMINIATURE CONNECTOR, SOLDER, PLUG
CategoryThe connector
File Size183KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

836199003 Overview

9 CONTACT(S), MALE, D MICROMINIATURE CONNECTOR, SOLDER, PLUG

836199003 Parametric

Parameter NameAttribute value
Contact materialsCOPPER ALLOY
Total number of contacts9
Lead-freeYes
EU RoHS regulationsYes
China RoHS regulationsYes
stateACTIVE
OptionsGENERAL PURPOSE
Shell stylePLUG
Manufacturer Series83619
Contact surface matchingGOLD (15) OVER NICKEL
Contact coated terminalsGOLD (15) OVER NICKEL
Connection TypeD MICROMINIATURE CONNECTOR
Connector male and femaleMALE
insert materialLIQUID CRYSTAL POLYMER
collocation informationNO
Installation typeBOARD
Shell materialSTEEL, NICKEL PLATED
Housing sizeA
Terminal typeSOLDER
UL flammability code94V-0
This document was generated on 05/26/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0836199003
Active
commercial_microd
1.27mm (.050") Pitch Ulti-Mate™ Commerical Micro D, Dual Stack, PCB Mount, Right
Angle Plug, 18 Circuits
Documents:
3D Model

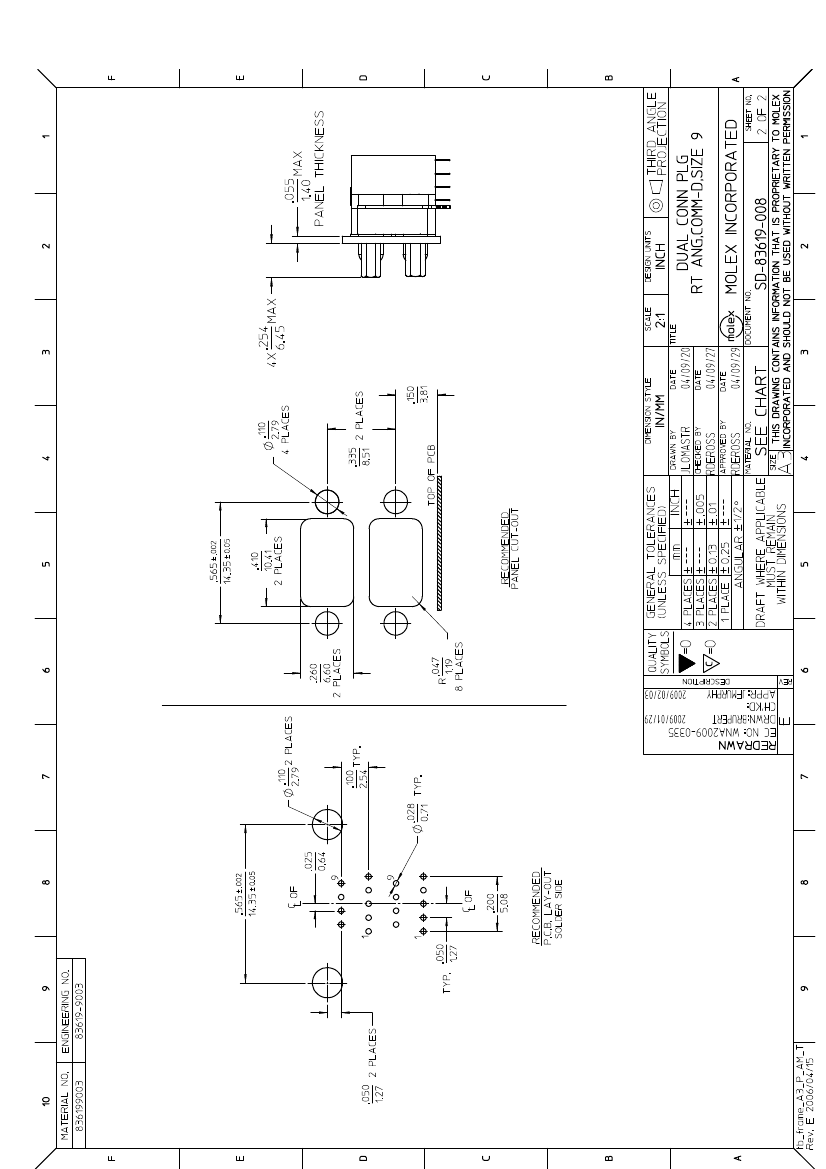

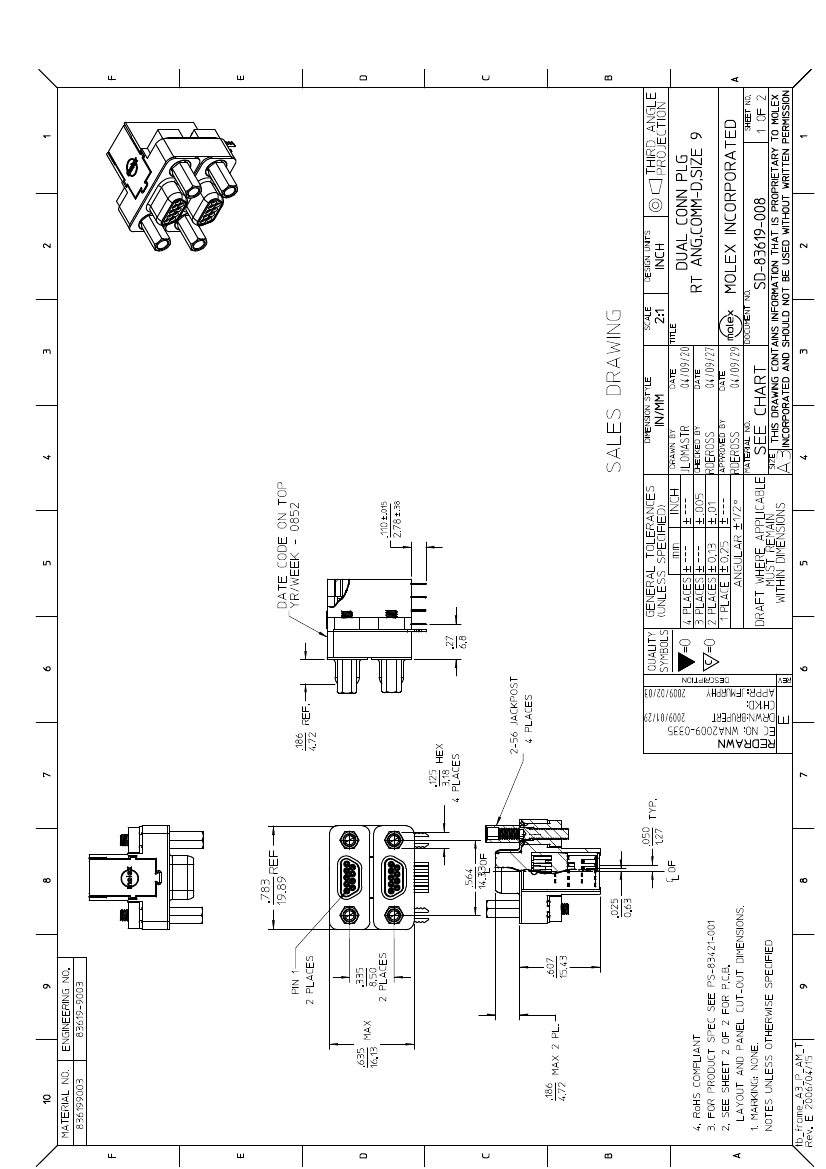

Drawing (PDF)
Product Specification PS-83421-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Literature Order No
Product Name
Type
I/O Connectors
83619
Wire-to-Board
Dual Stack
Plug
commercial_microd
USA-063
Commercial Micro-D
N/A
Physical
Boot Color
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
Gender
Lock to Mating Part
Material - Plating Mating
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Polarized to Mating Part
Polarized to PCB
Ports
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Wire Size AWG
N/A
18
18
500
Plug
Yes
Gold
2
Right Angle
0.110 In
2.79 mm
Yes
Yes
0.060 In
1.52 mm
Tube
Yes
0.050 In
1.27 mm
0.050 In
1.27 mm
15
0.38
Yes
Yes
2
No
-40°C to +125°C
Through Hole
No
N/A
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
83619S
Mates
83421
Electrical
Current - Maximum per Contact
1A
